Intel ME "M" State LED
The board has a red-colored Intel ME "M" state LED (see Figure 3). The "M" state is
based on Intel ME status, as follows:
• M0 = Intel ME is in full control in S0.
• M3 = Intel ME is in full control in S3-S5 for "out of bound" Intel manageability.
• Moff = Intel ME is in sleep state after Intel ME timeout has occurred.
Table 5 shows the expected behavior of the Intel ME "M" state LED.
Table 5. Intel ME "M" State LED Behavior
Sx/M3
LED blinks
All manuals and user guides at all-guides.com

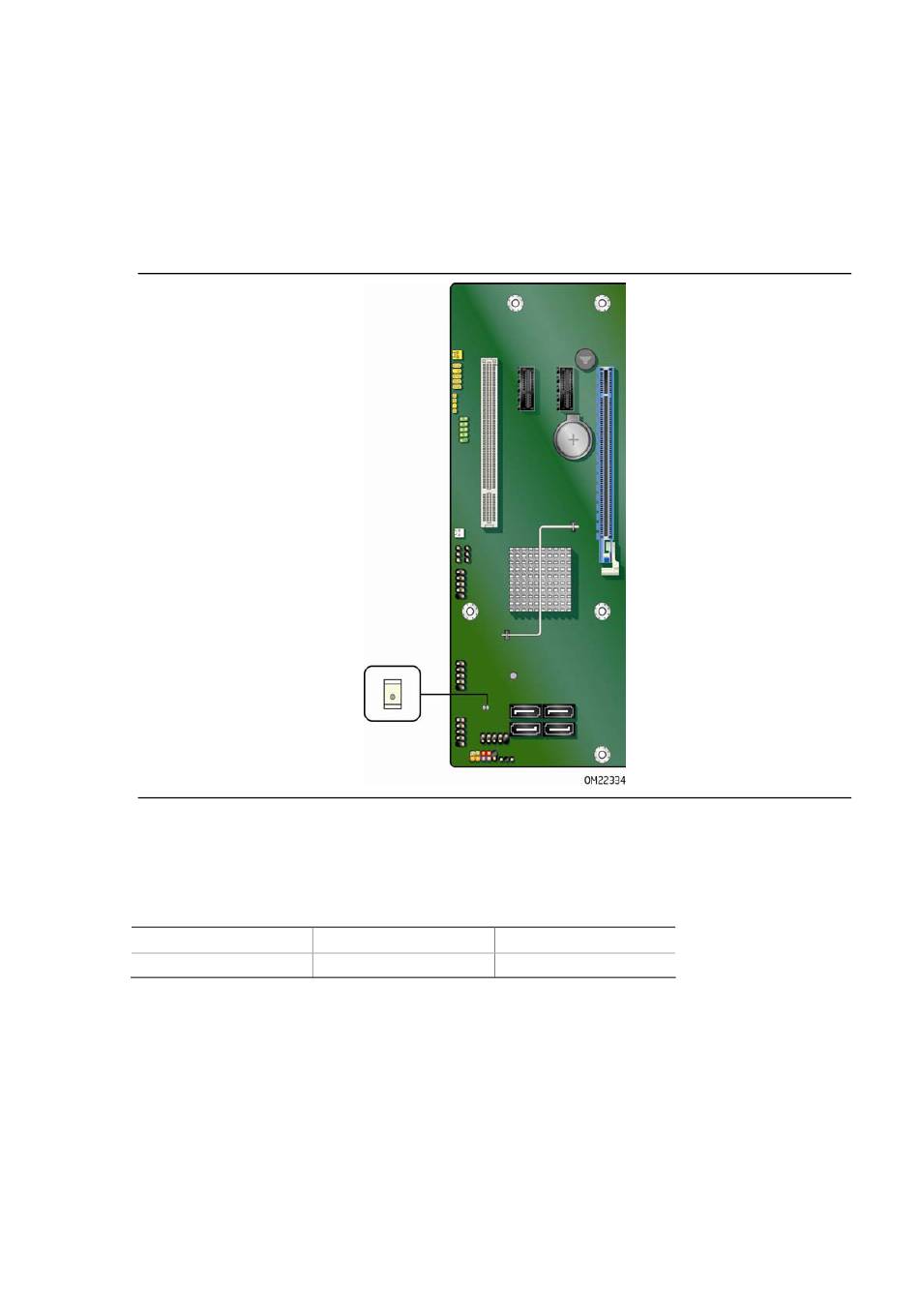

Figure 3. Location of the Intel ME "M" State LED
Sx/Moff
Off
Desktop Board Features
S0/M0
On
