Cleveland Controls AFS-951-1 Manual page 4

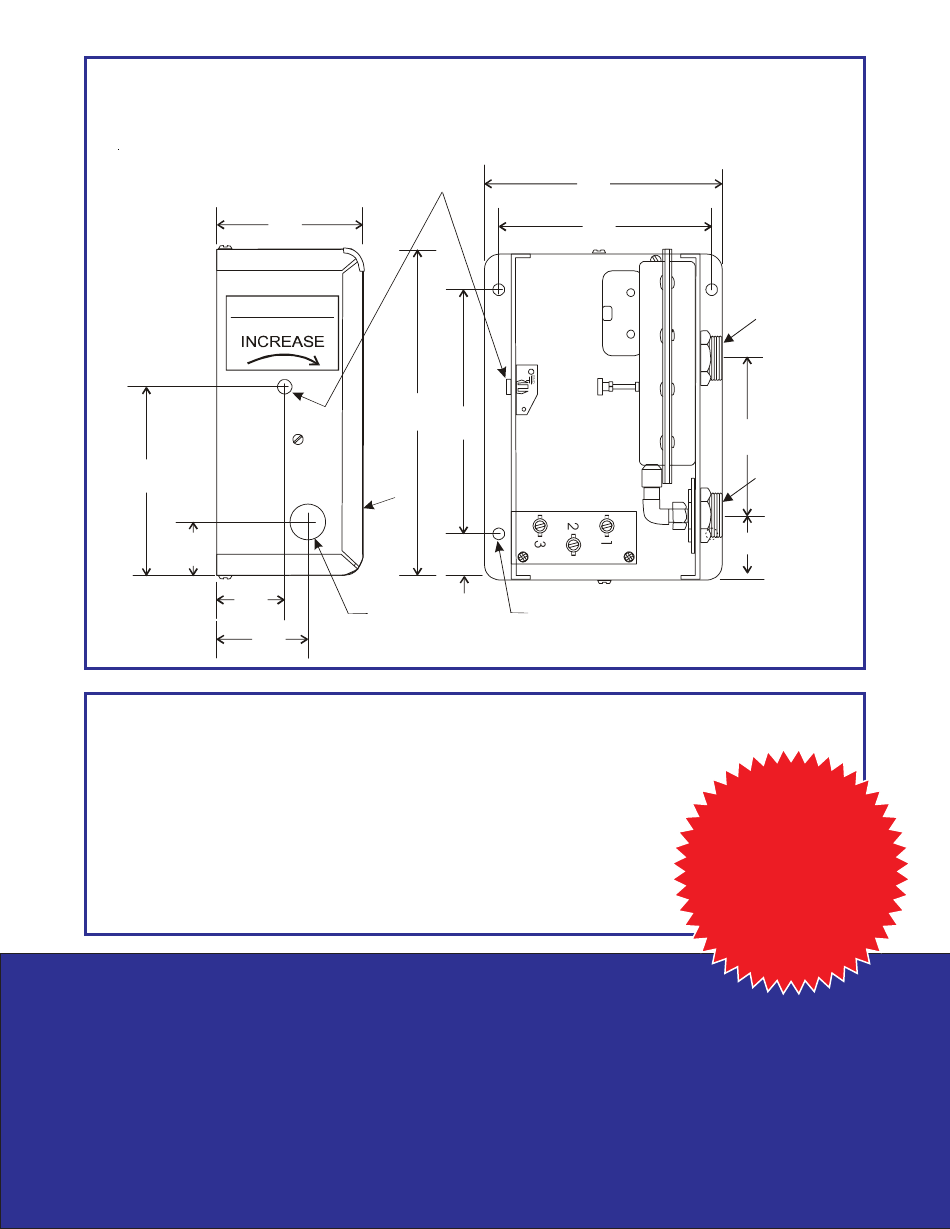

Model AFS-951 in Standard NEMA-1 rated housing:
• Coated steel finish.
• Shipping Weight: 5 lbs.
(91 mm)
CLEVELAND CONTROLS
DIVISION OF UNICONTROL INC.
Remove Plug Button to Adjust
Turn Clockwise to Increase
4.38"
(111 mm)
1.25"
(32 mm)
1.75"
(44 mm)
2.31"
(59 mm)
