Model AFS-951-1:
14-gauge grey hammertone enameled steel with neoprene gasketed clamped cover hinged on the left side. NEMA 4 rated: provides protection from
dust, dirt, oil, and water.
Hinged
Shipping Weight: 8 lbs.
Cover
High
Pressure Inlet
¼ NPT
3.562"
(90 mm)
Low
Pressure Inlet
¼ NPT
Model AFS-951-2:
Cast aluminum alloy, nonmagnetic, non-sparking, and non-rusting. NEMA 7 and NEMA 9 rated. UL approved for Class 1, Group D; Class II,
Groups E, F, G.
Piping: Either pressure inlet, if not connected to a pressure sample, must be piped and vented to a nonhazardous area.
.
Shipping Weight: 18 lbs
High Pressure Inlet ¼" NPT
8.75"
(222
3.562"
mm)
(90 mm)
3.00"
(76 mm)
Low Pressure Inlet ¼ NPT

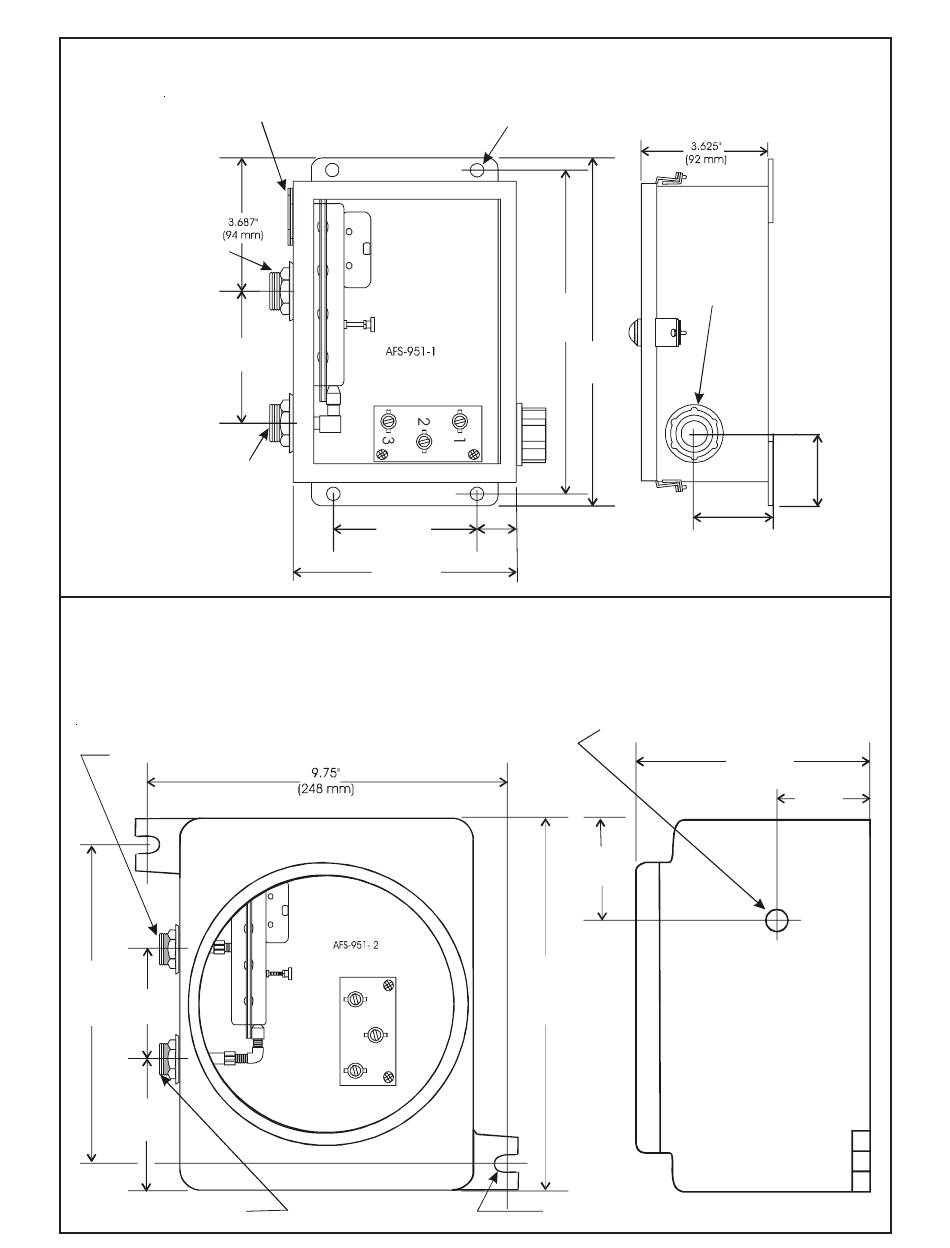

ENCLOSURE SPECIFICATIONS & DIMENSIONS
4.00"
(102 mm)
6.00"
(152 mm)
1
2
3
0.313" (8mm)
mounting holes (4)
8.75"
(222 mm)
9.50"
(241 mm)
1.00"
(25 mm)
½" 14 NPT Electrical Connection
2.75"
(70 mm)
10.187"
(259 mm)
Mounting Slot for ½" Bolt (2)
Weatherproof
Electrical
Connection
½ NPT
2.062"
(52 mm)
1.687"
(43 mm)
6.562"
(167 mm)
2.562"
(65 mm)
