ASTRO APX™ 1000 Series
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using
the radio, read the RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios which contains important
operating instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards and
Regulations.

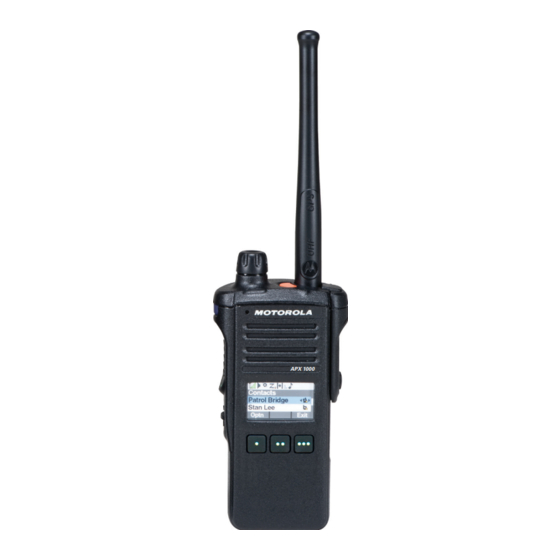

Radio Controls
Antenna
Accessory
Connector
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are
used under license. All other trademarks are the property of their respective owners. © 2014 and 2015 by Motorola Solutions, Inc. All Rights Reserved. 06/15
1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
Top Lightbar
Microphone
Top Side
(Select)
Button
__________
PTT Button
Side Button 1
__________
Side Button 2
__________
Multi-Function Knob
(MFK):
Primary Feature:
_________________
Secondary Feature:
Radio On/Off
_________________
• On – Press and hold the MFK until the display
Microphone
lights up.
• Off – Press and hold the MFK until you see
Power off?, then press Menu Select button
below Yes.
Zones and Channels
Battery
1
Press the MFK to see
2
Turn the MFK to scroll to desired zone or
channel.
3
Press MFK to select the desired zone or
channel and exit Mode Change.
Top (Orange) Receiving and Transmitting
Button
__________ 1
Select zone/channel.
2
Listen for a transmission.
LED
OR
Press and hold Volume Set button.
OR
Main
Press Monitor button and listen for activity.
Speaker
3
Adjust volume, if necessary.
Main Display
4
Press the PTT button to transmit; release to
Menu Select
receive.
Buttons
Sending an Emergency Alarm
1
Press and hold the Emergency button*.
2
The display shows Emergency and the
current zone/channel. Radio sounds a short,
medium-pitched tone, and the LED blinks red
momentarily.
3
When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
*Default timer of Emergency button press to
activate Emergency is 50 milliseconds. This
timer is programmable, see Emergency
Operation in the user guide for details.
on the screen.
To exit emergency at any time, press and hold
the Emergency button.
