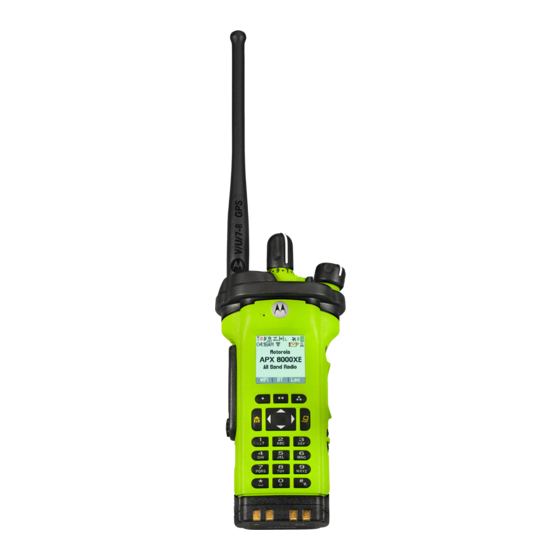

APX 8000XE
Portable Radio
BASIC
OPERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APX 8000XE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motorola APX 8000XE

Summary of Contents for Motorola APX 8000XE

  • Page 1 MOTOROLA BASIC APX 8000XE OPERATION Portable Radio...
  • Page 2 OBJECTIVES • 1. FEATURES AND CAPABILITIES • 2. KNOBS, BUTTONS, AND SWITCHES • 3. SCREEN ICONS • 4. MENU OPTIONS • 5. GENERAL RADIO OPERATION • 6. EMERGENCY OPERATION • 7. REMOTE SPEAKER MICS • 8. BATTERIES AND BELT CLIP •...

  • Page 3: Features And Capabilities

    FEATURES AND CAPABILITIES • DUAL BAND RADIO; 700/800 AND VHF • RUGGEDIZED, IP68 SUBMERSIBLE; AND ABLE TO WITHSTAND HIGH/LOW TEMPS • UP TO 10 HOURS WITH 3400 mAh LITHIUM ION BATTERY • 3000 CHANNEL CAPACITY • NOISE CANCELING • 3X DYNAMIC / COMMAND ZONES •...
  • Page 4 FEATURES AND CAPABILITIES; NOISE CANCELLING • APX8000 HAS 2 MICROPHONES. • WILL SWITCH BETWEEN THE 2 AND USE THE ONE WITH LESS BACKGROUND NOISE.
  • Page 5 KNOBS BUTTONS AND SWITCHES LIGHT / DIMMER PTT: PUSH TO TALK SINGLE DOT BUTTON: CHANNEL ANNOUNCE 2 DOT BUTTON: RADIO INFO / BUTTON ASSIGNMENT...
  • Page 6 KNOBS BUTTONS AND SWITCHES EMER BUTTON SCAN ON / OFF SELECTOR 16 POSITION CHANNEL KNOB ABC SELECTOR: (NOT PROGRAMMED) ON/OFF/ VOLUME KNOB...
  • Page 7 KNOBS BUTTONS AND SWITCHES...
  • Page 8 KNOBS BUTTONS AND SWITCHES MICROPHONE MENU SELECTION BUTTONS HOME BUTTON DATA FEATURE BUTTON 4 WAY NAVIGATION BUTTON KEYPAD...

  • Page 9: Screen Icons

    SCREEN ICONS...
  • Page 10 SCREEN ICONS...
  • Page 11 SCREEN ICONS...
  • Page 12 SCREEN ICONS...
  • Page 13 SCREEN ICONS...

  • Page 14: Menu Options

    MENU OPTIONS • ZONE • MEMORY PRESETS MS1, MS2, MS3 • SCAN LIST • PROFILE • MPL • BLUE TOOTH • CHANNEL (VHF) • CLOCK • LOCATION • MUTE...
  • Page 15 GENERAL OPERATION: CHANGING ZONES • PRESS THE HOME BUTTON TO BRING MENU TO DEFAULT SCREEN • PRESS SOFT KEY UNDER “ZONE” • USE UP/DOWN ARROWS ON 4 WAY NAV BUTTON OR ENTER ZONE NUMBER DIRECTLY • PRESS SOFT TOUCH BUTTON UNDER SELECT...
  • Page 16 GENERAL OPERATION: SCAN LIST • PRESS SOFT TOUCH BUTTON UNDER SCAN LIST • USE UP/DOWN ARROWS TO NAVIGATE THROUGH CHANNELS WITHIN ZONE • USE LEFT/RIGHT ARROWS TO CHANGE ZONE...
  • Page 17 GENERAL OPERATION: SCAN LIST • PRESS BUTTON UNDER SELECT TO ADD HIGHLIGHTED CHANNEL AND DELETE TO REMOVE • “Z” WILL APPEAR AT TOP MIDDLE OF SCREEN WHEN CHANNEL IS SELECTED • PRESS RECALL MULTIPLE TIMES TO QUICKLY JOG THROUGH SCAN LIST •...
  • Page 18 GENERAL OPERATION: SCAN LIST • REMINDER THAT YOU CANNOT SCAN ACROSS CHANNEL TYPES. • EXAMPLE CANNOT SCAN AN RCS OR CONVENTIONAL (DIRECT) CHANNEL WHILE ON A SAN DIEGO CITY ZONE • SAN DIEGO CITY TRUNKED ARE 7, 8, 9, 24 (TNG), 25 (SDM), SDPD, AND SD LIFE GUARDS •...
  • Page 19 GENERAL OPERATION AUDIO PROFILE • PRESS PROFILE BUTTON TO SELECT AUDIO PROFILES • THE ONLY SELECTION WILL BE NORMAL AND LOUD. • THE RECCOMENDATION IS TO REMAIN ON NORMAL...
  • Page 20 GENERAL OPERATION BLUETOOTH • FROM HOME MENU SCROLL ONCE TO THE RIGHT • SELECT “BT” • FROM HERE YOU CAN TURN BT ON, SEARCH FOR AND PAIR WITH DEVICES...
  • Page 21 GENERAL OPERATION BLUETOOTH • ENSURE BLUETOOTH “STATUS” IS ON • ENSURE DEVICE IS READY TO BE PAIRED • SCROLL DOWN TO “SEARCH DEVICES” AND TURN ON • THE DEVICE NAME (SCOTT) SHOULD APPEAR FOR SELECTION...
  • Page 22 GENERAL OPERATION CLOCK • FROM MENU, SELECT CLOCK • SELECT EDIT, FROM HERE YOU CAN CHANGE TIME, 12/24 HR FORMAT, AND THE DATE...
  • Page 23 GENERAL OPERATION MUTE • SCROLL MENU TWICE TO THE RIGHT AND SELECT MUTE • THIS TURNS OFF/ON THE TONES OF THE RADIO AS WELL AS CHANNEL ANNUNCIATION...
  • Page 24 GENERAL OPERATION MS1, MS2, MS3 • PRESET MEMORY BUTTONS TO QUICKLY ACCESS CHANNELS. • NAVIGATE TO THE DESIRED CHANNEL. “7E FOR EXAMPLE” • SCROLL MENU TO MS1, PRESS FOR 3 SECONDS. 7E IS NOW SET AS A MEMORY CHANNEL. • ANY CHANNEL IN RADIO CAN BE SELECTED, 7/800MHZ, VHF ETC. •...

  • Page 25: Emergency Operation

    EMERGENCY OPERATION • WHEN DECLARING AN EMERGENCY ON AN INCIDENT • PRESS THE ORANGE BUTTON ON TOP OF THE RADIO • ONCE EMERGENCY IS TRANSMITTED ECDC WILL RECEIVE IT WITH YOUR UNIT AND POSITION (ie E14 FF4) THEY WILL THEN CONTACT THE IC TO ADVISE OF THE EMERGENCY NOTIFICATION •...
  • Page 26 EMERGENCY OPERATION • IMPORTANT ALIAS DATABASE IS UPDATED AT BEGINNING OF EVERY GO AROUND SO METRO HAS CORRECT ID ON THEIR END • EMER ACTIVATIONS IN OTHER ZONES WILL BE SENT TO THE RESPECTIVE DISPATCH AGENCY, ZONES 1&2 GO TO Heartland, 3&4 to North Comm, 5 to Escondido, 10&11 to San Diego (formally Monte Vista) •...
  • Page 27 RADIO REPLACEMENTS...
  • Page 28 REMOTE SPEAKER MIC • NEW MOTOROLA XE500 SPEAKER FLASHLIGHT MICS BEING ISSUED PER RADIO VOLUME TOGGLE MICROPHONE PTT “PUSH TO TALK” SPEAKER CHANNEL ANNOUNCE BUTTON...
  • Page 29 REMOTE SPEAKER MIC • NEW MOTOROLA XE500 SPEAKER EMER BUTTON MICS BEING ISSUED PER RADIO • CHANNEL SELECTOR KNOB NOT ON NEW COLLAR MIC. TRANSMIT LED BELT CLIP AND D RING BLUETOOTH LED...
  • Page 30 REMOTE SPEAKER MIC • KEEP MIC CONNECTOR CLEAN • THESE BRASS CONNECTIONS GET WEATHERED AND GREEN OXIDATION WILL FORM This Photo by Unknown Author is licensed • CLEAN WITH PENCIL ERASER under CC BY-SA • OR ISOPROPYL ALCOHOL This Photo by Unknown Author is licensed under BY-NC-ND...
  • Page 31 INSPECTING & CONNECTING Speaker Mic. HOOK CHECK & TAB PINS AND RUBBER SEAL...
  • Page 32 Mic Connection / Battery Test • 1 Day Back • Tx For 1 Min on Batt Training Channel • Using a 2 Radio, Ensure Collar Mic Transmits and Receives Audio • Radio should Remain Transmitting and shouldn’t give any indication of a low battery.
  • Page 33 BATTERIES AND BELT CLIPS • 3400 mAh LITHIUM ION IMPRES 2 BATTERY • IP68 RATED ABLE TO OPERATE IN HAZARDOUS ENVIRONMENTS • WHEN COMBINED WITH IMPRES 2 CHARGER INCREASES LIFE BY 60% • CHARGING/ RECONDITIONING BANKS LOCATED AT BATTALION HQ’S. •...
  • Page 34 BATTERIES AND BELT CLIPS • DONT SWAP BATTERIES BETWEEN APX8000 AND APX6000 RADIOS • OLDER IMPRES BATTERIES WONT WORK ON THE NEW APX8000 • APX8000 RADIOS WILL COME WITH THE GREY BOTTOM BATTERY ON THE RIGHT, INTRINSICALLY SAFE • BE SURE YOUR BATTERY IS AN IMPRES 2...
  • Page 35 BATTERIES AND BELT CLIPS...
  • Page 36 ANTENNAS • GREEN OR RED BASE FOR XTS RADIOS • WHITE BASE FOR APX • ANTENNAS LABELED AT BASE FOR FUNCTION, 7/800 MHZ, VHF, GPS • APX 8000’S “VHF/ 7-800 GPS” BROADER ANTENNA • APX 6000’S “7-800 GPS”...
  • Page 37 BATTERIES AND BELT CLIPS • 2 BELT CLIPS SUPPLIED AND APPROVED BY SDFD • THE TALON • MOTOROLA...

  • Page 38: Cleaning And Disinfecting

    CLEANING & DISINFECTING • GENERAL CLEANING; USE 0.5% DETERGENT (1 TEA SPOON DISH SOAP)/ WATER SOLUTION AND SOFT BRISTLE BRUSH. • CONNECT SPEAKER MIC TO RADIO TO ENSURE CONNECTION DOSENT GET WET. • DISINFECTING; USE 70% ISOPROPYL ALCOHOL (Blue wipes), APPLY TO TOWEL AND WIPE RADIO •...
  • Page 39 THE END • ANY QUESTIONS CONTACT YOUR LOCAL COMMS SPECIALIST...
