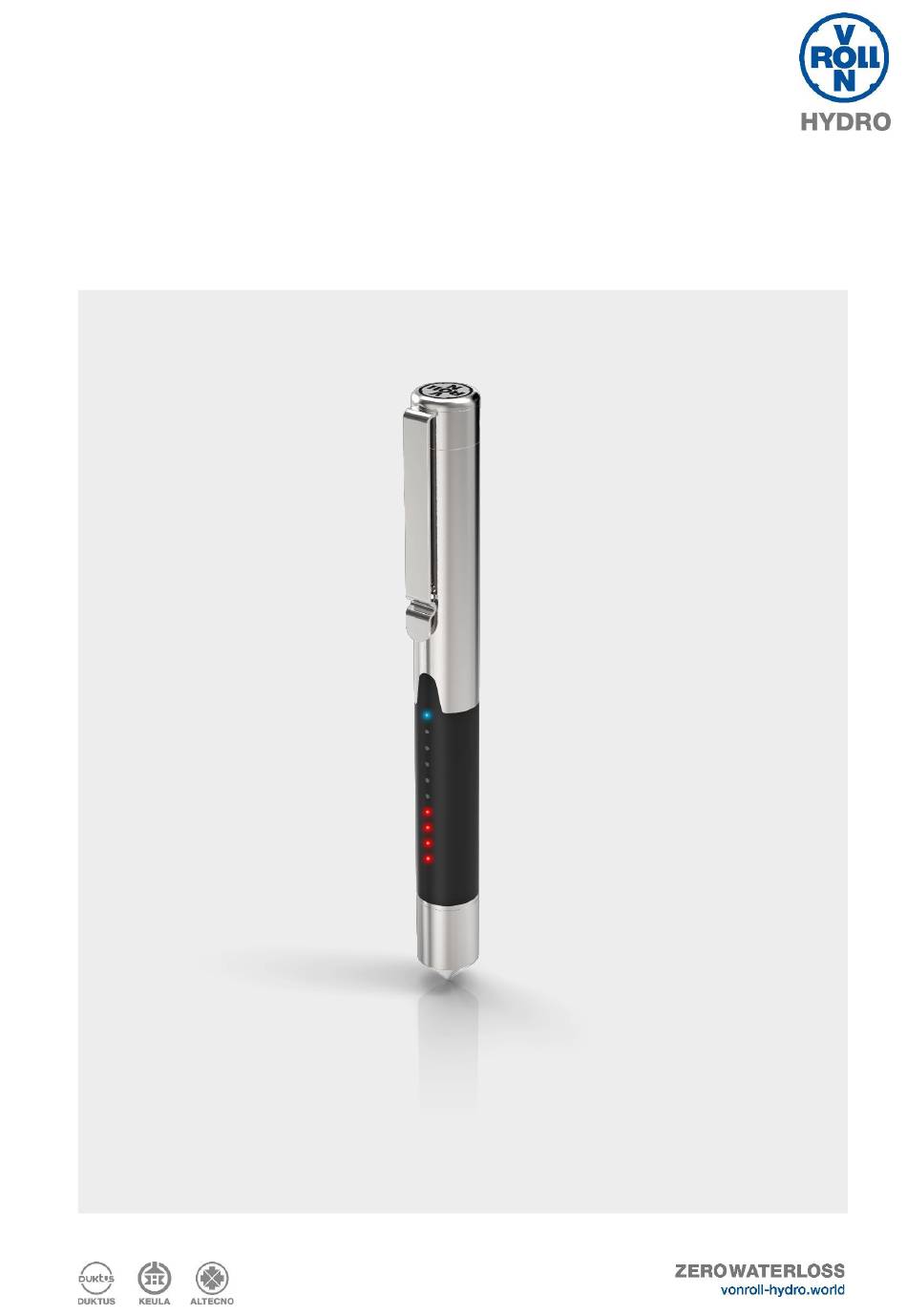

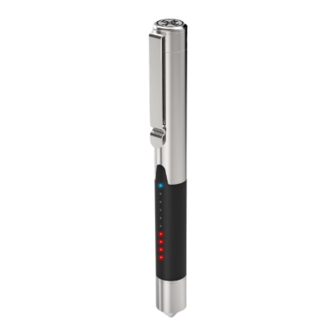

- Page 1 OPERATING INSTRUCTIONS LEAKPEN...
-
Page 2: Table Of Contents
2.6 Bluetooth headphones - pairing and connecting ..........Erreur ! Signet non défini. 2.7 Audio signal level indication .........................13 2.8 Technical specifications ..........................7 3. Document Version ............................17 Important notice: These operating instructions are valid for the LEAKPEN: Hardware version: from 1v6 Firmware version: from 1v1... - Page 3 These operating instructions remain the copyrighted property of vonRoll hydro (suisse) AG. They are only entrusted to the device purchaser for personal use. vonRoll hydro (suisse) AG retains all rights, in particular the right to make copies and reproductions. Infringements will incur a claim for compensation. vonRoll hydro (suisse) AG reserves the right to make further claims.
-
Page 4: Device Specification
1. Device specification 1.1 Scope of delivery The LEAKPEN measuring system is available in 3 different set versions. Check the delivery for completeness and visible damage. Report an incomplete or damaged delivery to your dealer/supplier immediately. LEAKPEN Item no. 20160 - Set contents... -
Page 5: Leakpen Professional
LEAKPEN without battery Bluetooth headphones incl. original accessories LEAKPEN magnet adapter small LEAKPEN magnet adapter short 35mm LEAKPEN magnet adapter long 235 mm LEAKPEN extension adapter Linkage ø 8 x 200 mm M4 internal thread / M4 external thread Linkage ø 8 x 200 mm M4 Internal thread / Magnet ø... -
Page 6: Device Overview
Battery compartment cover with clip Sealing ring Figure 1 Visual indication For the visual display of measured values and the different operating modes, the LEAKPEN has 9 red LEDs 1 blue LED. LED 1 red LED 2 red LED 3 red... -
Page 7: Function Description
2. Function description 2.1 Functional principle The LEAKPEN is a battery-operated, acoustic measuring and listening device for leak detection in pressurised water pipes. The acoustic sensor picks up sounds from water pipes under inspection. The leak is located at the point with the loudest sounds. - Page 8 For Bluetooth communication status 1 blue LED indication (Main function) Sensors Integrated compression type Acoustic sensor piezo-electric (PE) sensor, VONROLL HYDRO technology Integrated digital acceleration Motion sensor sensor for operation control Signal processing Frequency response 340 ... 3'400 Automatic gain control...
-
Page 9: Insert / Replace Battery
3. Preparation 3.1 Insert / replace battery To avoid discharging the battery during storage and transport, no battery is inserted in the LEAKPEN when it is delivered. Battery compartment cover Battery Positive battery pole Negative battery pole Sealing ring Figure 3 To install or replace the battery, proceed as follows: 1. -
Page 10: Turn On/Off
4. The LEAKPEN now switches to the measuring mode (ON) (see chapter 4.2 Measurement mode (ON). To turn off the LEAKPEN: • Depending on the active operating mode, the LEAKPEN is set to sleep mode (OFF) in different ways (see chapter 4.2 Measurement mode (ON) and chapter 4.4 Bootloader mode). •... -
Page 11: Battery Voltage Level Display
3.2.1 Battery voltage level display After turning on, the LEAKPEN first measures the battery voltage and displays it with the help of LED's. They flash 5 times. The number of LED's flashing simultaneously indicates the measured battery voltage according to the following table:... -
Page 12: Bluetooth Headphones - Pairing And Connecting
Blue LED flashes for 5 seconds every 25 seconds (Figure 9): There is no Bluetooth connection As soon as the blue LED starts flashing for the first time, the LEAKPEN also starts searching for new devices to pair. Blue LED lights up constantly (Figure 10): Bluetooth connection is established. - Page 13 If the headphones are only switched on when the LEAKPEN is already in measurement mode (ON) and both devices are within range. If the headphones are switched on before the LEAKPEN, the "PLAY" button must be pressed on some headphone models to establish the Bluetooth connection.
-
Page 14: Audio Signal Level Indication
Blue LED flashes for 5 seconds every 25 seconds (Figure 11): There is no Bluetooth connection As soon as the blue LED starts flashing for the first time, the LEAKPEN also starts searching for new devices to pair. Blue LED lights up constantly (Figure 12): Bluetooth connection is established. - Page 15 Audio signal level (Asl) in the range [μg] Number of lit LED's Asl ≤ 40 μg 1 (1 red LED) 40 μg < Asl ≤ 50 μg 2 (2 red LED's) 50 μg < Asl ≤ 63 μg 3 (3 red LED's) 63 μg <...
- Page 16 4.3 Sleep mode (OFF) The LEAKPEN is in a sleep mode / power saving mode in which everything is turned off except the motion detection, so that the LEAKPEN can be switched on again with a shake. 4.4 Bootloader mode The bootloader mode can be used to load firmware updates to the LEAKPEN via the Bluetooth connection.
-
Page 17: Document Version
Figure 16 The bootloader mode is terminated after 4 minutes if there is no Bluetooth connection and the LEAKPEN switches to sleep mode (OFF). If no firmware update is required, the bootloader mode can be ended immediately with a shake and the...
