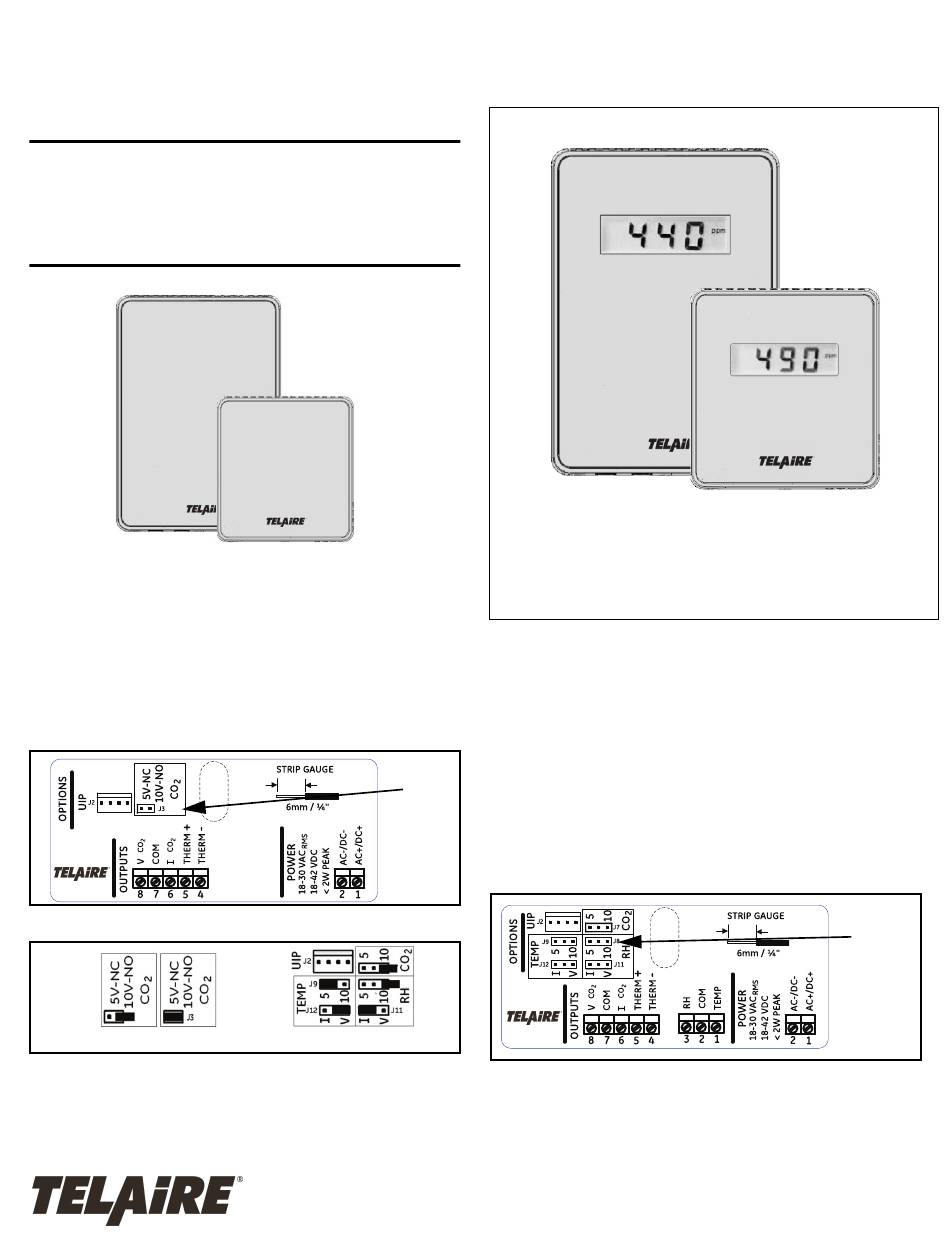

Telaire Ventostat 8000 Series User Instructions

Amphenol
Advanced Sensors

Installing the Sensor

!WARNING!
Before performing service or maintenance operations on
the systems, turn OFF main power switches to the unit.
Electric shock can cause personal injury. Please read and
follow the wiring instructions precisely; miswiring may
cause permanent damage to the product.
Basic Installation for Non-Display Units
1. Separate the case into its front and rear sections.
2. Secure the rear section of the case to the wall or junction box using
the supplied screws, and make necessary wire connections.
3. Mount the Controller on the base by aligning the top clips and then
securing to the bottom clips. Secure the Ventostat with the supplied
set screw. A one-minute stabilization warmup will take place.
Internal Label for Non-Display Units
(a)
0-10V 0-5 V
Jumper Settings for Non-Display (a) and Display (b)
Note: Example b shows outputs of CO
V, humidity— 4-20 mA, and active temperature — 0-5 V.
Selections
(b)
Units
— 4-20 mA and CO
2 2
Basic Installation for Display Units
1. Separate the case into its front and rear sections.
2. Secure the rear section of the case to the wall or junction box using
the supplied screws, and make necessary wire connections.
3. Mount the Controller on the base by aligning the top clips and then
securing to the bottom clips. Secure the Ventostat with the supplied
Output
set screw. A one-minute stabilization warmup will take place.
Jumper
4. When fitting the T8300/T8400 (pitot tube version), complete the
installation by screwing the tube connectors to the input ports on the
sensor. The tubing connectors can be attached to either input port. It
will not affect the performance of the sensor. (See page 3 for further
instructions.)
Internal Label for Display Units
— 0-10
Telaire Ventostat™ 8000 Series
CO 2 Sensor
User Instructions
Output
Jumper
Selections
T63216-008
March 2014
Page 1 of 4
