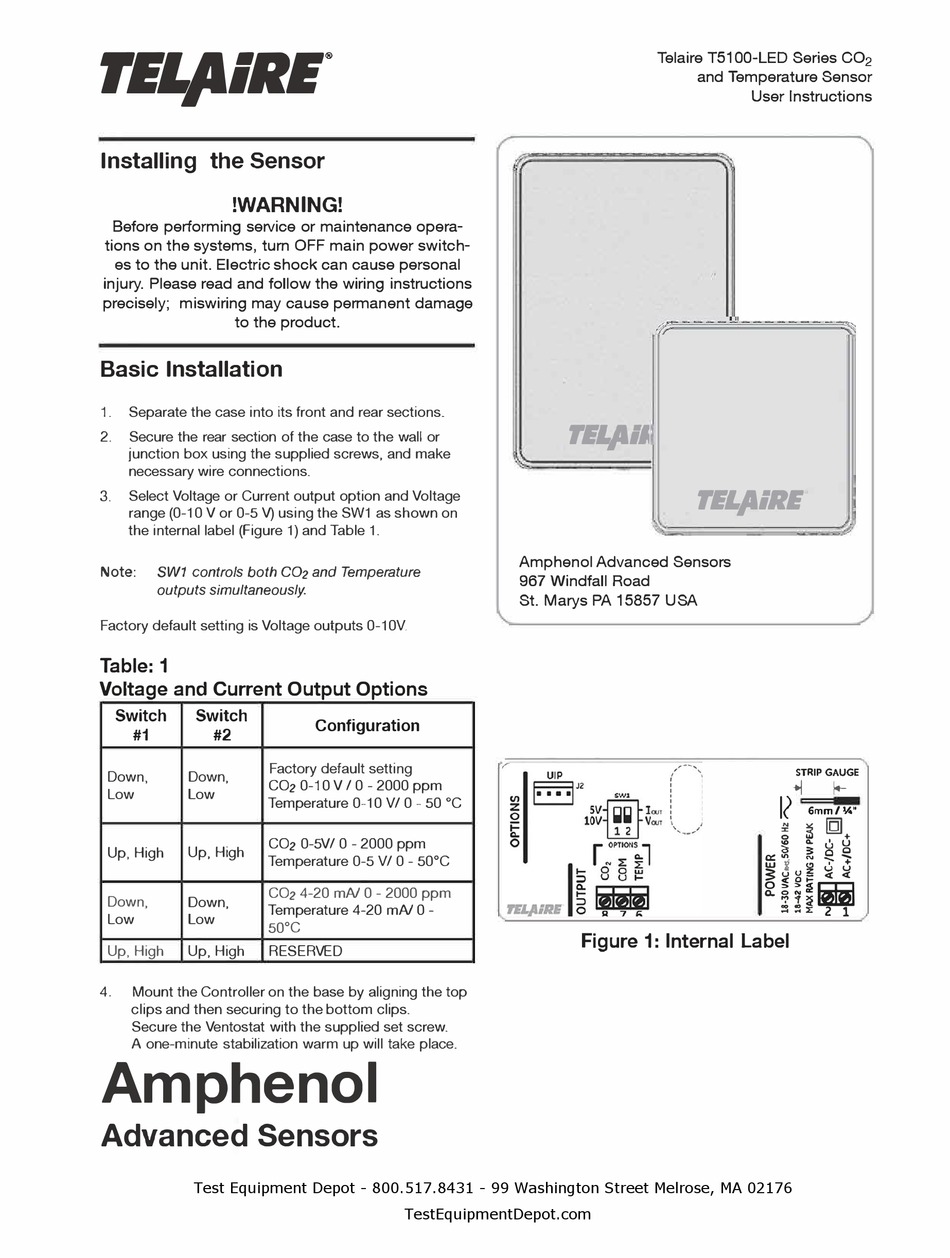

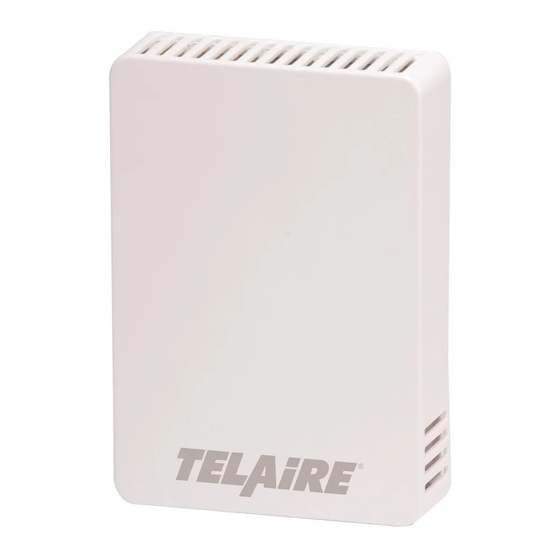

Telaire T5100-LED Series User Instructions

TEL/jlllE.
Installing the Sensor
!WARNING!
Before performing service or maintenance opera­
tions on the systems, turn OFF main power switch­
es to the unit. Electric shock can cause personal
injury. Please read and follow the wiring instructions
precisely; miswiring may cause permanent damage
to the product.
Basic Installation
1. Separate the case into its front and rear sections.
2. Secure the rear section of the case to the wall or
junction box using the supplied screws, and make
necessary wire connections.
3. Select Voltage or Current output option and Voltage
range (0-1 0 V or 0-5 V) using the SW1 as shown on
the internal label (Figure 1) and Table 1.
Note: SW1 controls both CO2 and Temperature
outputs simultaneously.
Factory default setting is Voltage outputs 0-1 0V.
Table: 1
Voltage and Current Output Options
Switch Switch
#1 #2
Factory default setting
Down, Down,
CO2 0-1 0 V / 0 - 2000 ppm
Low Low
Temperature 0-10 V/ 0 - 50 °C
CO2 0-5V/ 0 - 2000 ppm
Up, High Up, High
Temperature 0-5 V/ 0 - 50
CO2 4-20 mN 0 - 2000 ppm
Down, Down,
Temperature 4-20 mN 0 -
Low Low
50
Up, High Up, High RESERVED
4. Mount the Controller on the base by aligning the top
clips and then securing to the bottom clips.
Secure the Ventostat with the supplied set screw.
A one-minute stabilization warm up will take place.
Amphenol
Advanced Sensors
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
Configuration
°
C
°
C
TestEquipmentDepot.com
Telaire T5100-LED Series CO 2
and Temperature Sensor
TELJ1il.
TELJtiRE
Amphenol Advanced Sensors
967 Windfall Road
St. Marys PA 15857 USA
Figure 1: Internal Label
User Instructions
STRIP GAUGE
+I �
I(
6mm/¼"
