Summary of Contents for Engl E530
- Page 1 E530 Tube Preamp Operator´s Manual...

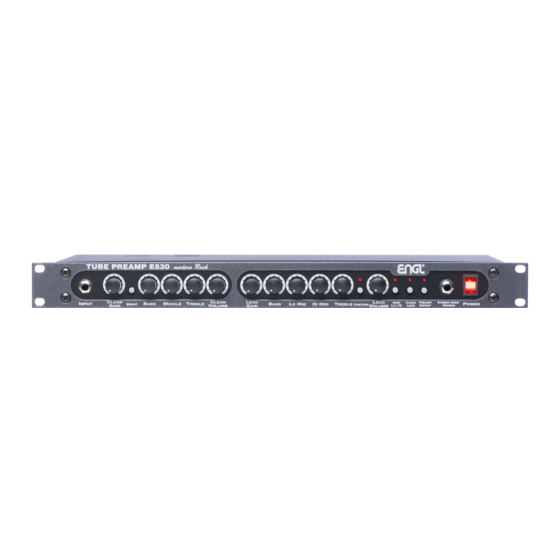

- Page 2 530 "modern Rock" an all-tube preamplifier delivers stunning professional quality tube sounds in a modern, exceptionally compact 19" rack-mountable package (1 rack space). The two main channels Clean and Lead feature dedicated voicing sections, gain pots and volume controls for precision sound shaping and fine-tuning.
- Page 3 All functions that can be accessed via footswitch can also be switched via the ENGL MIDI Switcher Z- 11. Simply connect the two 1/4" stereo jacks (22) and (23) to the stereo inputs of the Switcher via two cables equipped with 1/4"...
- Page 4 Front TUBE PREAMP 530 LEAN LEAN LEAN REAMP TEREO NPUT RIGHT IDDLE REBLE REBLE ONTOUR OWER OLUME OLUME EFEAT HONES 2 3 4 9 10 11 12 13 14 15 1617 18 19 INPUT LEAD VOLUME Unbalanced 1/4" (main) input jack. Volume control for the Lead channel.
-
Page 5: Auxiliary Input
This signal can be routed to a poweramp 1/4" stereo jack for connecting a dual or a FX device via a shielded cable. footswitch (e.g. ENGL Z-11) or a MIDI- switching system (e.g. ENGL Z-11). LINE LEVEL The following functions can be executed: This control feature determines the level of 1.Channel switching Clean - Lead... -
Page 6: Technical Data
The INSTRUMENT OUTPUT (32) delivers a signal similar to the one generated by a guitar's pickups when the preamp is active (PREAMP DEFEAT switch Off), i.e. a high-ohm signal at about the same level as a guitar signal. This feature is relevant when you want to establish the same conditions via a bypass circuit (guitar signal to the INSTRUMENT OUTPUT) for further signal processing, for instance by an FX device, another Preamp connected in series or a poweramp.You can connect a signal processor between the INSTRUMENT OUTPUT (32) and... - Page 7 Internal Signal-path: INSTRUMENT INPUT (1) PREAMP PREAMP OUTPUT (32) DEFEAT (17) DEFEAT (17) CLEAN CLEAN / LEAD AUXILLARY GAIN, EQ, VOLUME INPUT (33) LEAD TUBE PREAMPLIFIER FX LOOP LINE OUTPUT RETURN RIGHT LINE RIGHT (27) RIGHT (30) PREAMP & BUFFER LINE LEVEL FX LOOP...
-
Page 8: Handling And Care
Please read the instructions carefully before operating the unit! Only operate the preamplifier in a manner it is designed for and therefore note this operational instructions! ENGL Gerätebau GmbH, Germany; Internet: http://www.engl-amps.com Text, design, grafics and layout by Horst Langer... - Page 9 Notes / Notizen...
- Page 10 www.engl-amps.com...
