Package Contents

• HDMI over CAT5e Transceiver & 4 rubber pads
• Power adapter (5V DC)
• Quick Installation Guide

Layout

HDMI In
DIP
LED
Switch
• HDMI In LED: will light up when your HDMI
source is powered on and working properly
• DIP Switch: 1 = Off: use default EDID; 1 = ON: Learn
EDID from the display connected to HDMI Out;
2 = OFF: HDMI with 5.1ch/7.1ch audio mode;
2 = ON: HDMI with stereo audio mode
• HDMI In: connect your HDMI source via HDMI
M-M cable here (cable not included)
• Audio Out: 3.5mm audio jack, plug in your local
stereo speakers here
• HDMI Out: connect a local display here
• RJ-45 Out: link to the next transceiver/receiver
(optional) or remote display via RJ45 adapter. The
two LEDs will light up when the HDMI over CAT5e
Transmitter is powered up
• Power Jack: plug in the 5V power adapter here
2
Audio
HDMI
Out
In

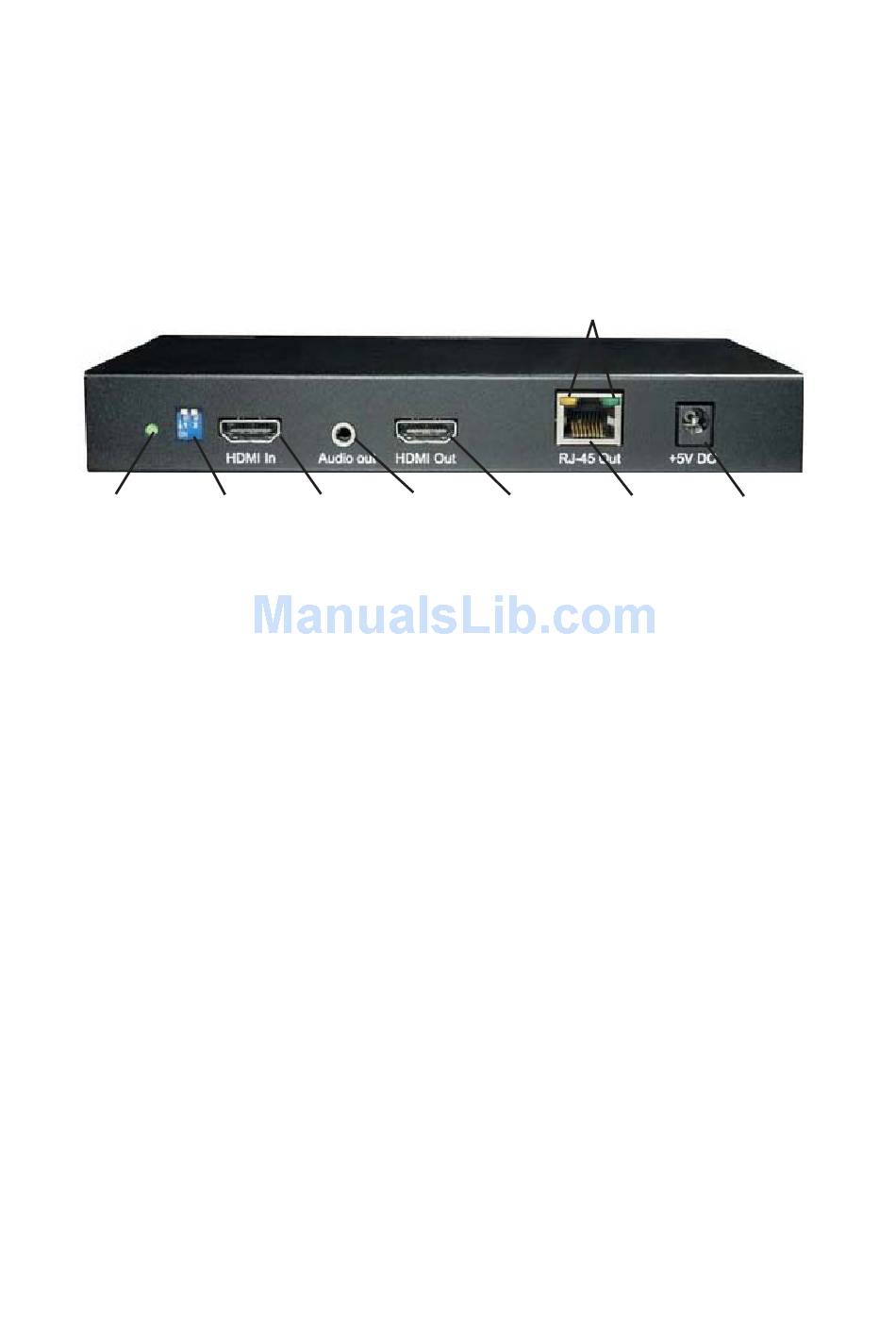

Figure 1: Rear Panel

LED
HDMI RJ-45
Out Out
Power Jack
