Introducing the VGA & Audio Transmitter

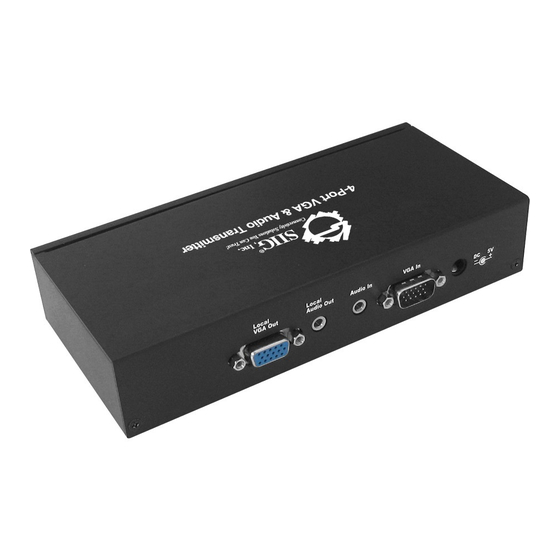

The 4-Port VGA & Audio Transmitter allows you to transmit
VGA and audio signals over inexpensive CAT5e cabling.
Features and Benefits
•
Transmits VGA video and stereo audio
transmissions to 4 (max) remote displays over
economical CAT5/5e/6 cables
•
Transmitters can be cascaded to connect to more
displays & speakers
•
Supports 2-channel stereo audio
•
Supports VGA, SVGA, XGA. SXGA and Multisync
monitors
•
Distance: up to 1080ft (330m) @ 800 x 600 resolution
•
Resolution: up to 1920 x 1200 @ 246ft (75m)
•
Easy installation
Package Contents
•
4-Port VGA & Audio Transmitter
•
VGA cable (M-F)
•
Audio cable (M-M)
•
Switching power adapter (5V, 2A)
•
Quick installation guide
04-0590A
4-Port VGA & Audio
Transmitter
Quick Installation Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG 4-Port VGA & Audio Transmitter
Summary of Contents for SIIG 4-Port VGA & Audio Transmitter
- Page 1 4-Port VGA & Audio Transmitter Quick Installation Guide Introducing the VGA & Audio Transmitter The 4-Port VGA & Audio Transmitter allows you to transmit VGA and audio signals over inexpensive CAT5e cabling. Features and Benefits • Transmits VGA video and stereo audio transmissions to 4 (max) remote displays over economical CAT5/5e/6 cables •...
- Page 2 Layout VGA & Audio Out Figure 1: Front Power Connector VGA In Audio In Audio Out VGA Out Figure 2: Back • VGA In: plugs into the VGA video card of your computer • Audio In: plugs into the Audio Out port of your computer, 3.5mm stereo jack •...
- Page 3 # CE-VG0311-S1). Make sure the cable is securely connected and not loose. Important: This 4-Port VGA & Audio Transmitter only works with SIIG VGA & Audio Receiver (part # CE-VG0311-S1). Please make sure to order the correct part. Repeat step 3 for each remote display (up to 4 per transmitter).
- Page 4 Cascading Transmitters Supports cascading through the local ports to expand your distribution points. Using the included VGA cable, connect the Local VGA Out of the upstream transmitter to the VGA In port of the downstream transmitter. Using the included Audio cable, connect the Local Audio Out of the upstream transmitter to the Audio In of the downstream transmitter.
- Page 5 Blank Page...
- Page 6 Blank Page...
- Page 7 Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 4-Port VGA & Audio Transmitter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
