Optix Series
LCD Monitor

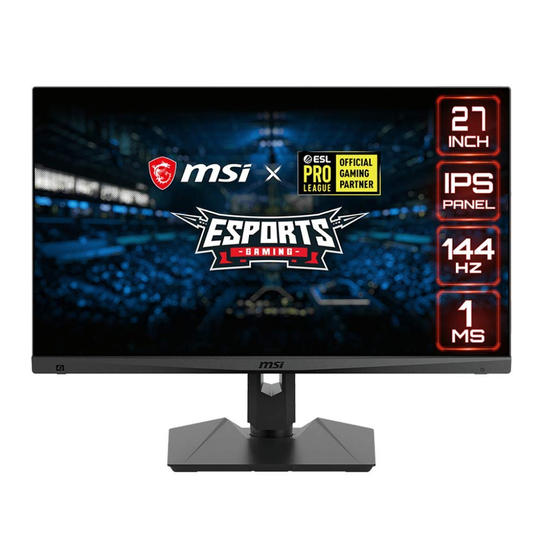

Optix MAG274 (3CA7)
Optix MAG274R (3CA7)

Advertisement

Table of Contents
loading

Summary of Contents for MSI Optix MAG274R

  • Page 1 Optix Series LCD Monitor Optix MAG274 (3CA7) Optix MAG274R (3CA7)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii Getting Started �������������������������������������������������������������������������������1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Power Adapter & Power Cord 5� HDMI Cable (Optional) 6� DisplayPort Cable (Optional) 7� USB Upstream Cable (to enable the USB ports on the monitor) 8� Quick Start Guide 9�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� Optix MAG274 (3CA7) 1� Align the latches of the stand to the monitor� 2� Tighten the stand with the stand screws� 3�...
  • Page 12 Optix MAG274R (3CA7) 1� Align the latches of the stand to the monitor� 2� Tighten the stand with the stand screws� 3� Connect the base to the stand and tighten the base screw to secure the base� IMPORTANT The holes for installing the stand can be also used for wall mount� Please contact your...
  • Page 13: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor� Optix MAG274 (3CA7) Optix MAG274R (3CA7) 100mm IMPORTANT Please tilt the monitor backward before pivoting�...
  • Page 14: Monitor Overview

    Monitor Overview...
  • Page 15 Getting Started Power Button DisplayPort HDMI Port USB-C Port This port can send simultaneously video signal and power stream up to PD 5V/3A� It doesn’t support data transmission function� Headphone Jack USB 2�0 Type B Upstream Port For USB Upstream Cable� IMPORTANT Check the package for USB Upstream Cable and connect...
  • Page 16: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord�(Figure A) 4� Connect the power adapter to the monitor power jack�(Figure B) 5�...
  • Page 17: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 18: Navi Key

    Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key The Navi Key default settings are as follows� Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Middle Button OSD Main Menu...
  • Page 19 OSD Setup Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Game Mode ■ Press Middle ■ Selecting function menus Button to confirm and items selection and exit� ■ Allowing upward adjustment ■ Press Up and in function values Down Buttons to adjust�...
  • Page 20 Users may enter the OSD Menu to customize their own Navi Key Hot Keys. More Hot Key options are as below� Navi Key Hot Key Options Operations Brightness ■ Press Middle Button to save value and exit� ■ Press Up and Down Buttons to adjust� ■...
  • Page 21: Osd Setup Via Navi Key

    OSD Setup OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences� h GAMING 1st Level Menu 2nd/3rd Level Menu...
  • Page 22 1st Level Menu 2nd/3rd Level Menu Description Anti Motion Blur ■ When Anti Motion Blur is enabled, HDCR and (OFF) Brightness cannot be enabled and will be grayed out� (ON) ■ Response time will be grayed out while Anti Motion Blur is enabled� ■...
  • Page 23 OSD Setup h Professional 1st Level Menu 2nd Level Menu Description Pro Mode User Default mode� All items can be adjusted by users� Reader All items can be adjusted by users� Cinema All items can be adjusted by users� Designer All items can be adjusted by users�...
  • Page 24 h Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ■ Users can adjust Brightness in User, RTS, RPG and Reader mode� ■ Brightness will be grayed out when Anti Motion Blur or HDCR are enabled� Contrast 0-100 ■ Users can adjust Contrast in any Mode� Sharpness ■...
  • Page 25 OSD Setup h Navi Key 1st Level Menu 2nd Level Menu Description Up / Down / Left ■ Up Button default is Game Mode� / Right ■ Down Button default is Screen Assistance� Brightness ■ Left Button default is Alarm Clock� Game Mode ■...
  • Page 26 1st Level Menu 2nd Level Menu Description Information on ■ The information of the monitor status will be (OFF) Screen showed on the right side of the screen� ■ Users can enable or disable the Information on (ON) Screen� Default is OFF� Reset Users can Reset and restore settings to original OSD Default in any Mode�...
  • Page 27: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 28: Specifications

    Specifications Model Optix MAG274 Optix MAG274R (3CA7) (3CA7) Size 27 inch Curvature Flat Panel Type Resolution 1920 x 1080@144Hz Aspect Ratio 16:9 Brightness (nits) 300 (max) Contrast Ratio 1000:1 Refresh Rate 144Hz Response Time 1ms (MPRT) Input Interface HDMI x2, DP x1, USB-C x1 ■...
  • Page 29: Preset Display Modes

    Appendix Model Optix MAG274 Optix MAG274R (3CA7) (3CA7) Dimension (W x H x D) 614�9 x 451�4 x 225�2 mm 614�9 x 532�7 x 206�7 mm Net Weight 4�33Kg(net) / 7�1Kg(gross) 6�05Kg(net) / 8�7Kg(gross) Environment Operating Temperature: 0°C to 40°C...
  • Page 30: Troubleshooting

    Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image� ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
