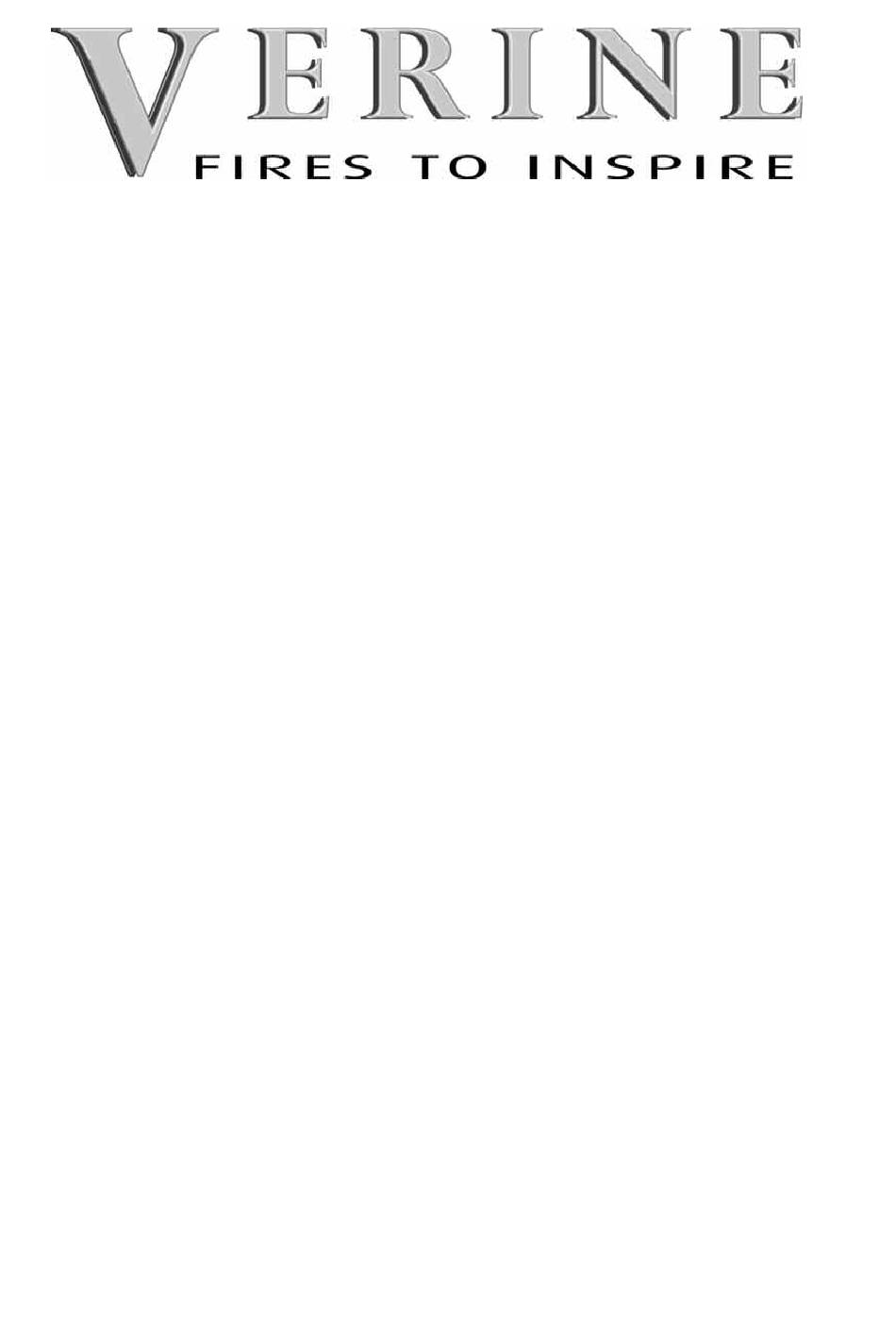

Quasar Plus
INSET LIVE FUEL-EFFECT GAS FIRES
Installation, Maintenance & User Instructions.
Hand these instructions to the user after installation.
Model No's NKPC**MN, NKPC**SN & NKPC**RN2 are for use on
Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.
** denotes variant of trim / fascia where applicable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quasar Plus NKPC MN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Verine Quasar Plus NKPC MN Series

Summary of Contents for Verine Quasar Plus NKPC MN Series

  • Page 1 Quasar Plus INSET LIVE FUEL-EFFECT GAS FIRES Installation, Maintenance & User Instructions. Hand these instructions to the user after installation. Model No’s NKPC**MN, NKPC**SN & NKPC**RN2 are for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E. ** denotes variant of trim / fascia where applicable...
  • Page 2 Information Requirements for Commission Regulation (EU) 2015/1188 Model Identifier NKPC**MN NKPC**SN NKPC**RN2 Indirect Heating Functionality Direct Heat Output 4.2kW Indirect Heat Output Not Applicable Fuel Natural Gas (G20) NOx Emissions 130mg/kWh Nominal Heat Output 4.2kW Minimum Heat Output (Indicative) 2.1kW Useful Efficiency at Nominal Heat Output 68.3% Useful Efficiency at Minimum Heat Output...

  • Page 3: Table Of Contents

    CONTENTS PAGE Section 1 Information and Requirements PAGE Appliance Information Conditions of Installation Flue and chimney suitability Fireplace / surround suitability Shelf position Chimney inspection Fire place opening / catchment space Fitting to metal flue boxes Hearths Pre-cast flue installations 1.10 Spillage monitoring system Section 2...

  • Page 4: Information And Requirements

    SECTION 1 INFORMATION AND REQUIREMENTS APPLIANCE INFORMATION Model NKPC**MN (MC) NKPC**RN2 (RC) NKPC**SN (SC) Gas Type Main injectors (2 off) Size 260 Size 280 Pilot Type Copreci ERTA OXYP 21100 / 141 (MC) PG-83-10 21100 / 162 (SC) (RC & EFC) Max.
  • Page 5 Fire box Dimensions (Quasar Plus Models) Width : (with trim, no spacer) 498mm Height : (with trim, no spacer) 600mm Depth : (overall-without fender) 170mm Gas Connection 8mm Compression (Supplied with fire) Appliance Efficiency Declaration The efficiency of this appliance has been measured as specified in BS 7977-1 : 2009 + A1 : 2013 and the result is 62.1%.

  • Page 6: Conditions Of Installation

    INSTALLATION REQUIREMENTS CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a GAS SAFE Registered Installer, in accordance with these installation instructions and the Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install appliances correctly could lead to prosecution.

  • Page 7: Fireplace / Surround Suitability

    FIREPLACE / SURROUND SUITABILITY The fire must only be installed on a hearth it must not be installed directly onto carpet or other combustible floor materials. The fire is suitable for fitting to non-combustible fire place surrounds and proprietary fire place surrounds with a temperature rating of at least 150 o c. If a heating appliance is fitted directly against a wall without the use of a fire surround or fire place all combustible material must be removed from behind the trim.

  • Page 8: Fire Place Opening / Catchment Space

    Check the chimney pot / terminal and general condition of the brickwork or masonry. If the chimney or flue is in poor condition or if there is no up-draught do not proceed with the installation. If there is a history of down-draught conditions with the chimney / flue, a tested and certificated flue terminal or cowl suitable for the relevant flue type should be considered.

  • Page 9: Fitting To Metal Flue Boxes

    120mm if the black 50mm spacer frame is used. This spacer frame can be purchased from Verine Fires as an optional extra. This appliance is suitable for use in fireplaces fitted with an existing chairbrick without the need for removal of the chairbrick, providing the minimum depth of the fireplace exceeds 260mm.

  • Page 10: Hearths

    If in doubt about the suitability of the fire contact Verine Fires for advice before proceeding. This fire has been designed to fit standard 100mm pre-cast starter blocks with 3 inch rebated surrounds.

  • Page 11: Installation Of Fire

    SECTION 2 INSTALLATION OF FIRE UNPACKING THE FIRE Carefully lift the fire out of the carton. Remove the loose item packaging carefully from the front of the appliance. Check the contents as listed :- Packing Check List 1 off Fire box / burner assembly 1 off Boxed ceramic base, front ceramic rail and 18 coals (4 large oblong, 5 large random, 7 large square &...
  • Page 12 For manual control models proceed as follows :- 2.2.1 Remove the burner heat shield from the front of the fire box to allow access to the burner. See figure 3 below. Fig. 3 2.2.2 Ensure that the hearth is protected from damage and carefully lift the fire box into the fire opening, then slide it back into position.
  • Page 13 For slide control models proceed as follows: 2.2.4 Remove the burner heat shield from the front of the fire box to allow access to the burner. See figure 5 below. Fig. 5 2.2.5 Ensure that the hearth is protected from damage and carefully lift the fire box into the fire opening, then slide it back into position.
  • Page 14 Fig. 6 2.2.7 Unscrew the burner assembly fixing screws at either side of the firebox, and the two fixing screws at the base of the fire (see figure 7 below). Carefully pull the base of the burner forwards. The burner can now be removed from the appliance.
  • Page 15 For remote & electronic fire control models proceed as follows: 2.2.8 Remove the trim. Remove the burner heat shield from the front of the fire box to allow access to the burner. See figure 8 below. Fig. 8 2.2.9 Ensure that the hearth is protected from damage and carefully lift the fire box into the fire opening, then slide it back into position.
  • Page 16 Continue for all models Whilst the fire box is still in position, decide which side the gas supply is to enter the fire from. If concealed pipe work is required plan the pipe run to enter the fire box through one of the openings in the sides of the fire box below the fuelbed support panel and connect to the isolating / inlet elbow.
  • Page 17 The preferred method of fixing which is suitable for almost all situations is the cable fixing method which is described in the following section in detail. To fit using the preferred cable method proceed as follows- 2.2.11 Mark out and drill 4 off No 14 (6mm) holes in the back face of the fire opening in the positions shown below in figure 12 Fig.
  • Page 18 Fig. 13 2.2.16 Evenly tighten the tensioning nuts to tension both cables and pull the fire snugly against the wall. Do not overtighten, it is only necessary to pull the seal up against the sealing face of the wall, it does not need to be compressed.

  • Page 19: Gas Tightness And Inlet Pressure (Manual Control Models)

    2.2.20 Before making the final gas connection, thoroughly purge the gas supply pipework to remove all foreign matter, otherwise serious damage may be caused to the gas control valve on the fire. GAS TIGHTNESS AND INLET PRESSURE - MANUAL CONTROL MODELS.

  • Page 20: Gas Tightness And Inlet Pressure (Remote Control Models)

    GAS TIGHTNESS AND INLET PRESSURE - REMOTE CONTROL MODELS 2.5.1 Remove the pressure test point screw from the inlet elbow and fit a manometer. 2.5.2 Turn on the main gas supply and carry out a gas tightness test. 2.5.3 Light the fire, see page 29 to 32 for full details of the operating method for the fire.

  • Page 21: Assembling Fuel Bed And Commissioning

    SECTION 3 ASSEMBLING FUEL BED AND COMMISSIONING ASSEMBLING THE CERAMICS AND FUEL BED - COAL MODELS 3.1.1 Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box.
  • Page 22 3.1.3 Fit three of the large sized square coals onto the front ceramic rail, and two of the random shaped coals as shown below ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See figure 16 below) Fig.
  • Page 23 3.1.5 Select two of the oblong coals and one of the square coals and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See figure 18 below) Fig. 18 Square Oblong Oblong...
  • Page 24 3.1.7 Select the remaining two oblong coals, one random coal and one square coal and position along the rear edge of the fuelbed, (See figure 20 below). Fig. 20 Random Square Oblong Oblong The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance.
  • Page 25 ASSEMBLING THE CERAMICS AND FUEL BED - PEBBLE MODELS 3.2.1 Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box. Ensure that the fuelbed base fit fully down onto the fuel bed support and is not lodged on the burner.
  • Page 26 3.2.3 Pick pebbles A to E and arrange along the the front rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See figure 23 below). Fig. 23 Pebble C Pebble D Pebble E Pebble A...
  • Page 27 3.2.5 Select pebbles K, L & M and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. Select the two small pebbles (J & N) and position to fill the gaps at each end of the third row of pebbles (See figure 25 below).

  • Page 28: Lighting The Appliance (Manual Control Models)

    LIGHTING THE APPLIANCE - MANUAL CONTROL MODELS 3.3.1 Turn on the gas isolation tap. 3.3.2 Depress the control knob and turn anti-clockwise to the position marked pilot. Hold in the control knob for a few seconds to purge the pipe work. 3.3.3 Continue to hold-in the control knob and press the igniter button.

  • Page 29: Lighting The Appliance (Slide Control Models)

    LIGHTING THE APPLIANCE - SLIDE CONTROL MODELS 3.4.1 Turn on the isolation valve. Depress the control lever fully downwards to the position marked. Hold down the control lever for a few seconds to allow the gas to reach the pilot. 3.4.2 The fire will then begin its ignition sequence.

  • Page 30: Fitting The Batteries (Remote Control Models)

    FITTING THE BATTERIES - REMOTE CONTROL MODELS 3.5.1 The control valve is located at the base of the fire as shown below in figure 26. Fig. 26 Position of battery cover on control valve 3.5.2 Remove the battery compartment cover from the control valve as indicated below in figure 27 and fit the 3 off AA sized batteries to the control valve unit.

  • Page 31: Manually Lighting Remote Control Models

    3.5.4 On remote control models fit two off AA batteries to the handset in the direction shown inside the handset moulded into the plastic. 3.5.5 For Remote control model operation please see section 3.7 LIGHTING THE FIRE MANUALLY VIA THE CONTROL VALVE 3.6.1 These products can be operated manually by using the buttons directly on the fire control in addition to the handset or EFC switch (should the...
  • Page 32 LIGHTING THE FIRE - REMOTE CONTROL MODELS 3.7.1 Ensure valve power isolation switch is in the on position - see figure 27 Hold the handset with one hand ensuring your hand is wrapped around the back and that your hand is in contact with both sides of the handset.

  • Page 33: Lighting The Appliance (Remote Control Models)

    LIGHTING THE APPLIANCE - REMOTE CONTROL MODELS  (CONTINUED) 3.7.3 To decrease the heat input level of the burner hold the handset as described in section 3.7.1 to unlock the keypad then press and release the - button. Pressing and releasing the - button will lower the heat input level one step at a time.

  • Page 34: Fitting The Trim Or Fascia

    FITTING THE TRIM OR FASCIA 3.8.1 The trim or fascia is held in position on the fixing flange by magnets. FITTING THE FENDER 3.9.1 The fender is placed up to the front of the ceramic front rail on all models. Position the ashpan under the fender and centralise.

  • Page 35: Checking For Clearance Of Combustion Products

    3.10 CHECKING FOR CLEARANCE OF COMBUSTION PRODUCTS 3.10.1 Close all doors and windows in the room. 3.10.2 Light the fire and allow to run for approximately 5 minutes on high position. 3.10.3 After approximately 5 minutes hold a smoke match 10mm inside and below the centre of the lower front edge of the top of the fire as shown overpage in figure 31.
  • Page 36 3.10.6 After ensuring that the fire is safe to use it should be left in the high position to fully warm up. During this time a slight odour may be noticed, this is due to the “newness” of the fire and will soon disappear. At this stage any minor adjustments to the coals should be made using suitable long handled tongs and taking care not to damage the coals.

  • Page 37: Maintenance

    Servicing Notes Servicing should be carried out annually by a competent person such as a GAS SAFE registered engineer. This is a condition of the Verine guarantee schemes. The service should include visually checking the chimney and fire opening for accumulations of debris and a smoke test to check for a positive up-draught in the chimney.

  • Page 38: Removal Of The Control Tap (Manual Control Models)

    Removing the Control Tap from the fire. 4.3.1 Remove the burner assembly as in section 4.1. 4.3.2 Pull the control knob off the control tap spindle. 4.3.3 Loosen and remove the three gas pipe retaining nuts from the control tap and release the ends of the gas pipes from the control tap body. Loosen and remove the thermocouple securing nut from the end of the control tap.

  • Page 39: Removal Of The Battery Igniter (Slide Control Models)

    4.5.3 Isolate the gas supply and remove the inlet pipe from the appliance inlet elbow. The control lever operating cable can be seen running across the base of the fire, below the burner. To release the cable, unscrew the cable securing screw located in the centre of the aluminium operating arm and release the front part of the operating arm, thereby freeing the cable from the burner (see figure 27 overpage).

  • Page 40: Removing The Oxy-Pilot Assembly (Slide Control Models)

    Removing the Oxy-Pilot Assembly Note: Because this appliance is fitted with an atmosphere sensing ‘Oxy- Pilot’ it is not possible to replace the thermocouple separately, because the thermocouple position is factory set to a tight tolerance. Any replacement of parts on the pilot requires a complete new pilot assembly. 4.8.1 Remove the burner assembly as in section 4.1 4.8.2...
  • Page 41 4.9.3 To fit the replacement cable, thread the end of the new cable into the long length of p.t.f.e. sleeve (as supplied) , taking care not to kink the sleeve. Now carefully feed the sleeve and cable into the left hand cable guide tube until the ends emerge above the control lever.

  • Page 42: Removal Of The Burner Assembly (Remote Control Models)

    Remote Control Models – For Diagrams refer to Section 2 4.10 Removing the burner assembly from the fire. 4.10.1 Prepare work area (lay down dust sheets etc.) 4.10.2 Lift the fender and ash pan cover of the way and put them in a safe location.

  • Page 43: Replacing The Batteries (Remote Control Models)

    4.12.4 Re-assemble in reverse order and carry out a gas tightness test. Re-fit coals as shown in section 3. The fender and ash pan cover can now be re-positioned. 4.13 Replacing the Batteries (Within the Firebox) 4.13.1 Remove the fender and ashpan assembly The battery holder is located on the valve at the right hand side of the burner.

  • Page 44: Part Shortlist / Fret Information

    FRET INFORMATION To enable Customers to choose their own style of fret these Quasar Plus models are now available without frets. In order to maintain the efficient and safe operation of the fire it is important that any fret which is used must comply with the following dimensions.

  • Page 45: Conditions Of Installation & About Your New Fire

    SECTION FIVE - USER INSTRUCTIONS 5.1 INSTALLATION INFORMATION CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a competent (e.g. GAS SAFE registered) Installer, in accordance with the installation instructions and the Gas Safety (Installation and Use) Regulations 1998. Failure to install appliances correctly could lead to prosecution.
  • Page 46 ABOUT YOUR NEW VERINE QUASAR PLUS GAS FIRE The Verine Quasar plus coal / pebble effect gas fire incorporates a unique and highly developed fuel bed which gives the realism of a loose coal layout combined with realistic flames and glow. The use of durable ceramic material in the con- struction of the fuelbed components ensures long and trouble free operation.

  • Page 47: 5.2 Operating The Fire - Manual Control Models

    5.2 OPERATING THE FIRE - MANUAL CONTROL MODELS The controls are located behind the ashpan cover which is situated behind the Ashpan / Fender. The controls, comprise a control valve to adjust the gas flow and a push button piezo igniter. To light the fire proceed as follows:- 5.2.1 Depress the control knob and turn anti-clockwise to the position marked pilot.

  • Page 48: 5.3 Operating The Fire - Slide Control Models

    5.3 OPERATING THE FIRE - SLIDE CONTROL MODELS The controls comprise a control lever, to turn the fire on and off and adjust the gas rate. The control lever is located at the top right hand side of the fire. Depressing the control lever fully operates the igniter and lights the pilot flame and ignition rate gas.
  • Page 49 WARNING : If the fire goes out for any reason or is turned off and it is necessary to re-light the fire it is important to allow the fire to cool for 3 minutes before attempting to re-light it.

  • Page 50: Operating The Fire (Remote Control Models)

    OPERATING THE FIRE - REMOTE CONTROL MODELS 5.4.1 The controls comprise a remote handset, to turn the fire on and off and adjust the gas rate. Ensure valve power isolation switch is in the on position - see figure 4. Hold the handset with one hand ensuring your hand is wrapped around the back and that your hand is in contact with both sides of the handset.
  • Page 51 OPERATING THE FIRE - REMOTE CONTROL MODELS  (CONTINUED) 5.4.3 To decrease the heat input level of the burner hold the handset as described in section 5.4.1 to unlock the keypad then press the and release the - button. Pressing and releasing the - button will lower the heat input level one step at a time.

  • Page 52: Manually Operation Of Remote Control Models

    MANUAL OPERATION OF REMOTE CONTROL & ELECTRONIC FIRE CONTROL MODELS 5.5.1 These products can therefore be operated manually should the need arise. The control valve is located at the base of the fire as shown below in figure 2. Fig. 2 Position of control valve 5.5.2...

  • Page 53: Replacing The Batteries In Remote Control Models

    5.5.3 To operate the fire press and hold the “power” button as shown in figure 2 on the previous page for two seconds, release as soon as the red indicator light in figure 3 on the previous page illuminates. The burner will start its ignition sequence and light to the maximum heat input level.

  • Page 54: 5.8 Spillage Monitoring System

    5.8 SPILLAGE MONITORING SYSTEM All models regardless of control type are fitted with a spillage monitoring system which shuts down the fire if the evacuation of combustion products from the fire is affected by a partially or fully blocked flue. If this system operates the fire will go out.

  • Page 55: 11 Re-Assembling The Ceramics And Fuel Bed (Coal/Pebble Variants)

    5.10 ASSEMBLING FUEL BED & CERAMICS - COAL MODELS 5.10.1 Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box. Ensure that the fuelbed base fit fully down onto the fuel bed support and is not lodged on the burner.
  • Page 56 5.10.3 Fit three of the large sized square coals onto the front ceramic rail, and two of the random shaped coals as shown below ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. See figure 6 below. Fig.
  • Page 57 5.10.5 Select two of the oblong coals and one of the square coals and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. See figure 8 below. Fig. 8 Square Oblong Oblong...
  • Page 58 5.10.7 Select the remaining two oblong coals, one random coal and one square coal and position along the rear edge of the fuelbed. See figure 10 below. Fig. 10 Random Square Oblong Oblong The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance.
  • Page 59 5.11 ASSEMBLING THE CERAMICS AND FUEL BED - PEBBLE MODELS 5.11.1 Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box. Ensure that the fuelbed base fit fully down onto the fuel bed support and is not lodged on the burner.
  • Page 60 5.11.3 Pick pebbles A to E and arrange along the the front rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. See figure 13 below. Fig. 13 Pebble C Pebble D Pebble E Pebble A...
  • Page 61 5.12.5 Select pebbles K, L & M and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. Select the two small pebbles (J & N) and position to fill the gaps at each end of the third row of pebbles.
  • Page 62 USER REPLACEABLE PARTS The only user replaceable parts on this fire are the fuelbed components and coals / pebbles which may be replaced as described in the above section. Replacement of any other parts must be carried out by a competent person such as a GAS SAFE registered gas installer.
  • Page 63 Due to our policy of continual improvement and development the exact accuracy of illustrations and descriptions contained in this book cannot be guaranteed. TROUBLE SHOOTING ADVICE FOR REMOTE CONTROL MODELS PRIOR TO REQUESTING A SERVICE CALL Please locate the Indicator light on the control valve behind the ashpan cover (see figure 3 on page 51, if it shows any of the following flashing sequences then the problem requires the batteries in the control valve and / or handset changing, be advised that service calls as a result of batteries requiring being changed in the product or...
