  • Page 1: Parts List

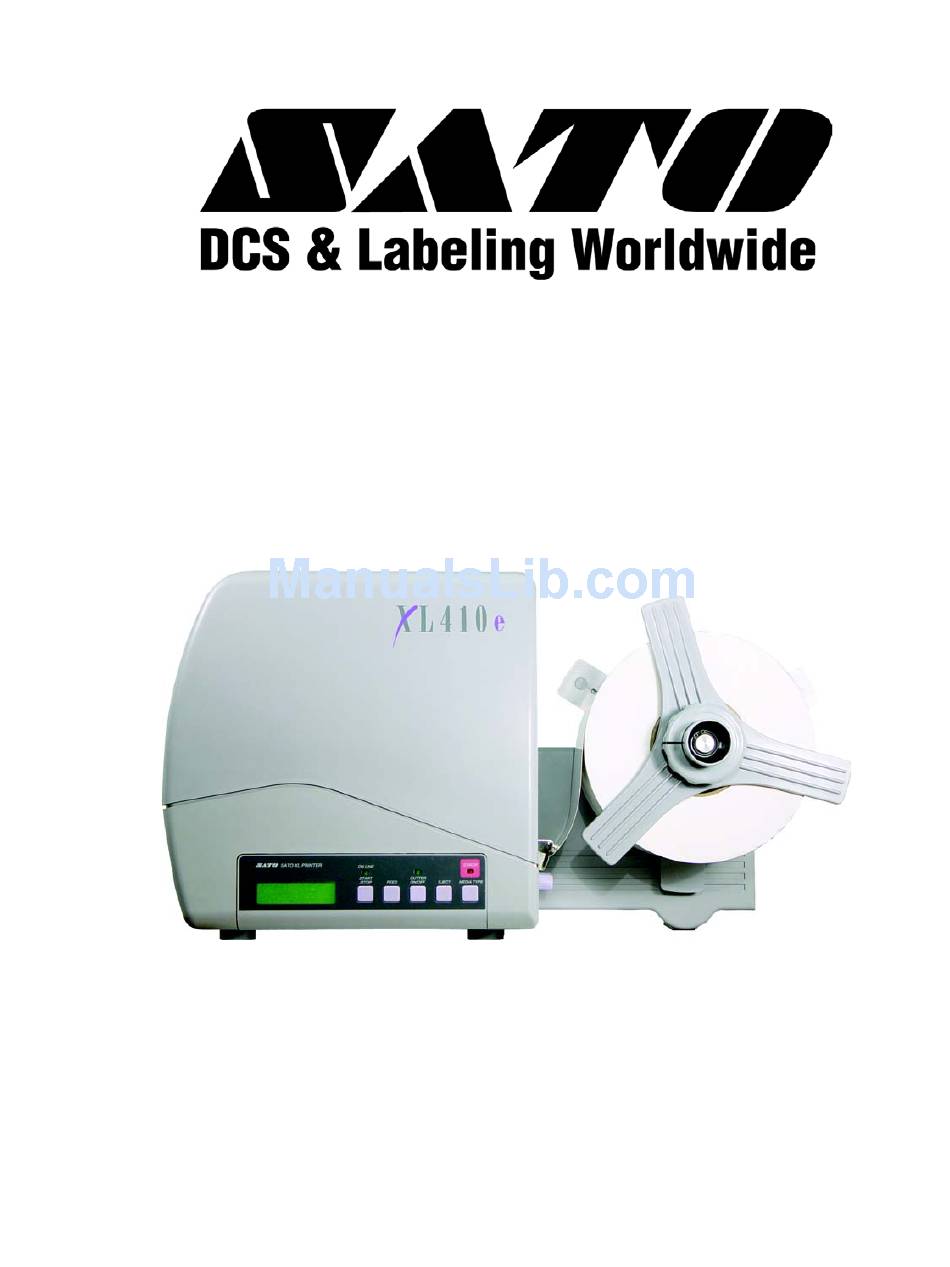

    XL400e / XL410e Printers PARTS LIST PN 9001137B...
  • Page 2 SATO America, Inc. 10350A Nations Ford Road Charlotte, NC 28273 Main Phone: (704) 644.1650 Technical Support Hotline: (704) 644.1660 Technical Support Fax: (707) 644.1661 E-Mail: satosales@satoamerica.com technical support@satoamerica.com www.satoamerica.com...

  • Page 3: Frame Assembly

    FRAME ASSEMBLY Figure PL1a, Frame Assembly Figure PL1b, Frame Assembly SATO XL400-410e Parts List PN 9001137B Page 1...
  • Page 4 Figure PL1c, Frame Assembly Figure PL1d, Frame Assembly SATO XL400-410e Parts List PN 9001137B Page 2...
  • Page 5 Figure PL1e, Frame Assembly Figure PL1f, Frame Assembly SATO XL400-410e Parts List PN 9001137B Page 3...

  • Page 6: Part Description

    PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PB0690200 LEVEL POST PA1761100 INK ROLLER HOLDER ND0020030 SNAP RING, TYPE E WB9001010 INK ROLLER FOR SA/SATO 26 R/BLACK PC0760900 BATCH SPRING RH1762200 SOLENOID SUB-ASSEMBLY SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B...
  • Page 7 P00087000 CIRCUIT BOARD BRACKET F PA1760400 CIRCUIT BOARD BRACKET D MA0301622 PAN HEAD SCREW MT1300522 HEX NUT MD4301422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PA3765901 BELT COVER SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 5...
  • Page 8 MOTOR COVER PT8155064 TIMING BELT PT8162064 TIMING BELT PA1761500 TENSION BRACKET PA1761600 SPRING PLATE PC0761200 TENSION SPRING MD4301022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PC0761100 TENSION SPRING SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 6...
  • Page 9 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER NB2040022 TOOTHED LOCK WASHER R00388000 GROUND CABLE 70 SET R00387000 GROUND CABLE 101 SET MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 7...

  • Page 10: Feed Assembly

    FEED ASSEMBLY SATO XL400-410e Parts List Figure PL2a, Feed Assembly Figure PL2b, Feed Assembly PN 9001137B Page 8...
  • Page 11 Figure PL2c, Feed Assembly Figure PL2d, Feed Assembly SATO XL400-410e Parts List PN 9001137B Page 9...
  • Page 12 PA3761001 PULLEY BRACKET MH0300821 PAN HEAD P-TAP SCREW PE8690602 PULLEY PB1760900 COLLAR MA0301622 PAN HEAD SCREW MT1300522 HEX NUT PR7760400 SENSOR SUB-ASSEMBLY PR4740200 LOWER SENSOR BRACKET PE1740400 UPPER SENSOR BRACKET SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 10...
  • Page 13 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PC2760800 TORQUE SPRING A PA3763200 PAPER LID PA3696302 STOPPER BRACKET PC2760900 SPRING B PB0693100 SHAFT ND0020030 SNAP RING, TYPE E RJ4760000 SEN1 CIRCUIT BOARD SUB-ASSEMBLY SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 11...
  • Page 14 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PA2760800 SLIDE GUIDE A PA2760900 SLIDE GUIDE B PB2760300 COLLAR MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER MC0301622 PAN HEAD SCREW W/TOOTHED WASHER SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 12...

  • Page 15: Head Assembly

    HEAD ASSEMBLY SATO XL400-410e Parts List Figure PL3a, Head Assembly Figure PL3b, Head Assembly PN 9001137B Page 13...
  • Page 16 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PC2760702 OPEN SPRING PA3740600 ADJUSTMENT PLATE MD4301422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 14...
  • Page 17 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PT1112060 BALL BEARING PA3766901 RIBBON ROLLER LEVER B PC0760200 SPRING ND0060030 SNAP RING, TYPE E HJ100201A FERRITE CORES G00012001 PRINT HEAD G00013001 PRINT HEAD NA1030022 FLAT WASHER SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 15...

  • Page 18: Ribbon Assembly

    RIBBON ASSEMBLY Figure PL4a, Ribbon Assembly Figure PL4b, Ribbon Assembly SATO XL400-410e Parts List PN 9001137B Page 16...
  • Page 19 SPRING MH0300521 PAN HEAD P-TIGHT SCREW PT2301020 OILESS DRY METAL WASHER PA0680400 DISC PC1730100 RIBBON SPRING PE2730100 STOPPER COLLAR PB5730100 ADJUSTMENT SCREW MA0303022 PAN HEAD SCREW SATO XL400-410e Parts List Figure PL4c, Ribbon Assembly PART DESCRIPTION PN 9001137B Page 17...
  • Page 20 PAN HEAD SCREW P-TIGHT SCREW MD4301422 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER MT1300522 HEX NUT PB2760200 COLLAR, 8 x 10 x 5 P00092010 POST SHAFT NA1040022 FLAT WASHER Q00164000 STICKER, DSW SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 18...
  • Page 21 MEDIA & POWER SUPPLY ASSEMBLIES Figure PL5a, Media & Power Supply Assemblies Figure PL5b, Media & Power Supply Assemblies SATO XL400-410e Parts List PN 9001137B Page 19...
  • Page 22 RH1764000 CABLE RH1764100 CABLE RH1760400 EXT POWER SET PA6685400 NUT PLATE MD3201221 PAN HEAD SCREW JG100191A WIRE STICKER RH1760110 AC POWER INLET SUB-ASSEMBLY NB2040022 TOOTHED LOCK WASHER P00589000 HOLD SPRING SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 20...

  • Page 23: Keyboard Assembly

    PE1761200 CLAMP A PE1762000 CLAMP B MH0301221 PAN HEAD P-TIGHT SCREW MA0300622 PAN HEAD SCREW RH1764400 KEYBOARD CABLE SET RH1761900 LCD CABLE SET HJ100201A FERRITE CORE SATO XL400-410e Parts List Figure PL6, Keyboard Assembly PART DESCRIPTION PN 9001137B Page 21...
  • Page 24 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER P00139010 VR POTENTIOMETER COVER Q00059000 STICKER, VR P00138000 CARD COVER P00148000 INTERFACE COVER MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER R00079001 MEMORY BOARD ASSEMBLY C SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 22...
  • Page 25 CUTTER SENSOR COVER MH0300521 PAN HEAD P-TIGHT SCREW RH1762400 SENSOR CORD SET MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER RJ4760500 CUTTER SENSOR ASSEMBLY SATO XL400-410e Parts List Figure PL8, Cutter Sensor Assembly PART DESCRIPTION PN 9001137B Page 23...

  • Page 26: Cutter Assembly

    CUTTER ASSEMBLY SATO XL400-410e Parts List Figure PL9a, Cutter Assembly Figure PL9b, Cutter Assembly PN 9001137B Page 24...
  • Page 27 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PA2760200 SENSOR BRACKET PT9761000 PAN HEAD SCREW RH1761401 CUTTER CABLE SET RH2760100 SENOSR CIRCUIT BOARD R00390000 CUTTER CIRCUIT BOARD ND0040030 SNAP RING, TYPE E PB1767000 SHAFT SATO XL400-410e Parts List PART DESCRIPTION PN 9001137B Page 25...

  • Page 28: Other Accessories

    OTHER ACCESSORIES OTHER ACCESSORIES ITEM PART NUMBER PART DESCRIPTION R02117000 POWER CORD, 110V SATO XL400-410e Parts List PN 9001137B Page 26...
