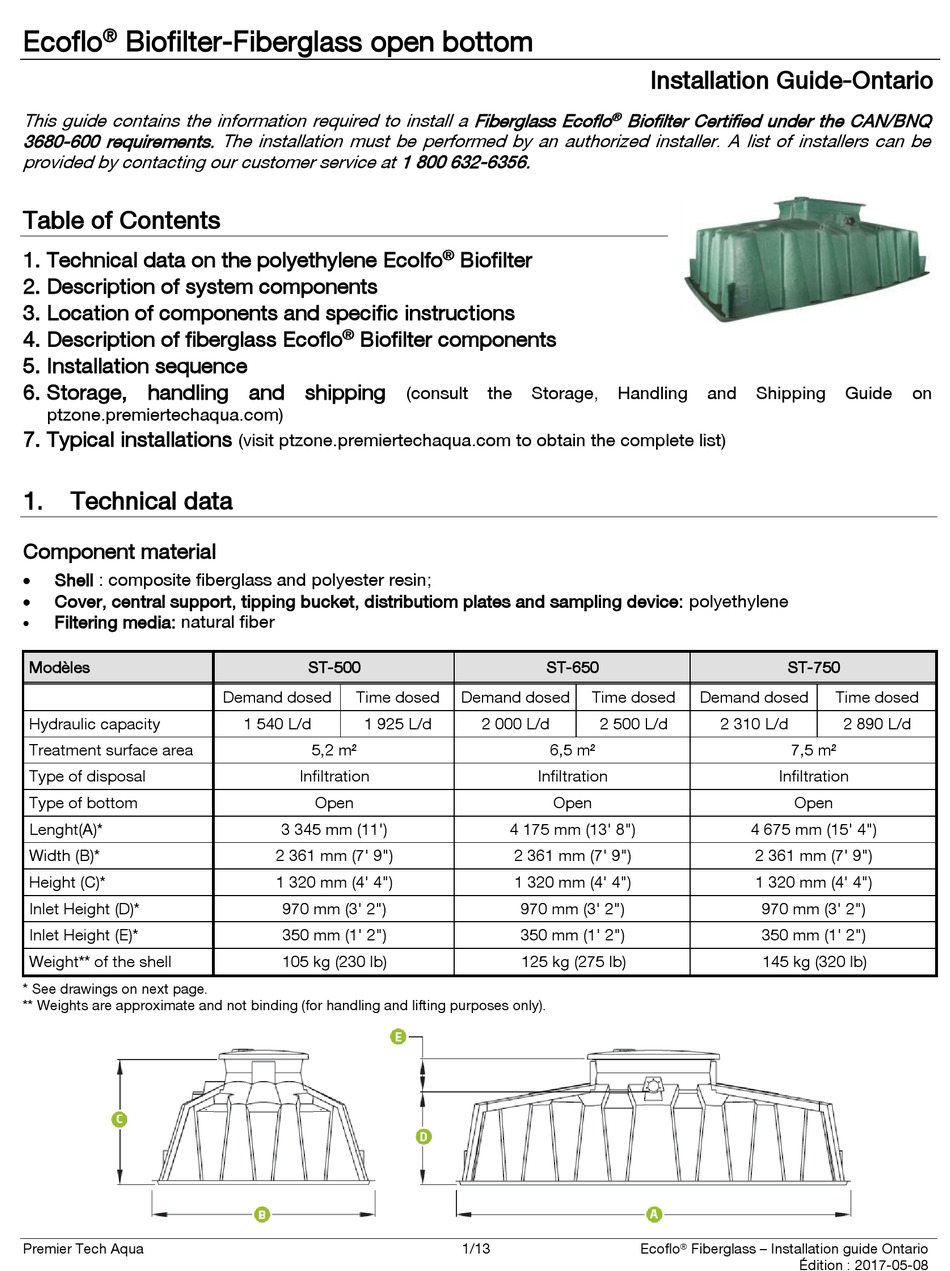

Ecoflo ST-500 Installation Manual

®
Ecoflo Biofilter-Fiberglass open bottom
This guide contains the information required to install a Fiberglass Ecoflo
3680-600 requirements. The installation must be performed by an authorized installer. A list of installers can be
provided by contacting our customer service at 1 800 632-6356.
Table of Contents
1. Technical data on the polyethylene Ecolfo
2. Description of system components
3. Location of components and specific instructions
4. Description of fiberglass Ecoflo
5. Installation sequence
6. Storage, handling and shipping
ptzone.premiertechaqua.com)
7. Typical installations
1. Technical data
Component material

Shell : composite fiberglass and polyester resin;

Cover, central support, tipping bucket, distributiom plates and sampling device: polyethylene

Filtering media: natural fiber
Modèles
Hydraulic capacity
Treatment surface area
Type of disposal
Type of bottom
Lenght(A)*
Width (B)*
Height (C)*
Inlet Height (D)*
Inlet Height (E)*
Weight** of the shell
* See drawings on next page.
** Weights are approximate and not binding (for handling and lifting purposes only).
Premier Tech Aqua
®
Biofilter components
(visit ptzone.premiertechaqua.com to obtain the complete list)
ST-500
Demand dosed Time dosed
1 540 L/d 1 925 L/d
5,2 m²
Infiltration
Open
3 345 mm (11')
2 361 mm (7' 9")
1 320 mm (4' 4")
970 mm (3' 2")
350 mm (1' 2")
105 kg (230 lb)
®
Biofilter
(consult the Storage,
ST-650
Demand dosed
2 000 L/d
6,5 m²
Infiltration
Open
4 175 mm (13' 8")
2 361 mm (7' 9")
1 320 mm (4' 4")
970 mm (3' 2")
350 mm (1' 2")
125 kg (275 lb)
1/13
Installation Guide-Ontario
®
Biofilter Certified under the CAN/BNQ
Handling and Shipping
Time dosed Demand dosed
2 500 L/d 2 310 L/d
4 675 mm (15' 4")
2 361 mm (7' 9")
1 320 mm (4' 4")
970 mm (3' 2")
350 mm (1' 2")
145 kg (320 lb)
®
Ecoflo Fiberglass – Installation guide Ontario
Guide on
ST-750
Time dosed
2 890 L/d
7,5 m²
Infiltration
Open
Édition : 2017-05-08
