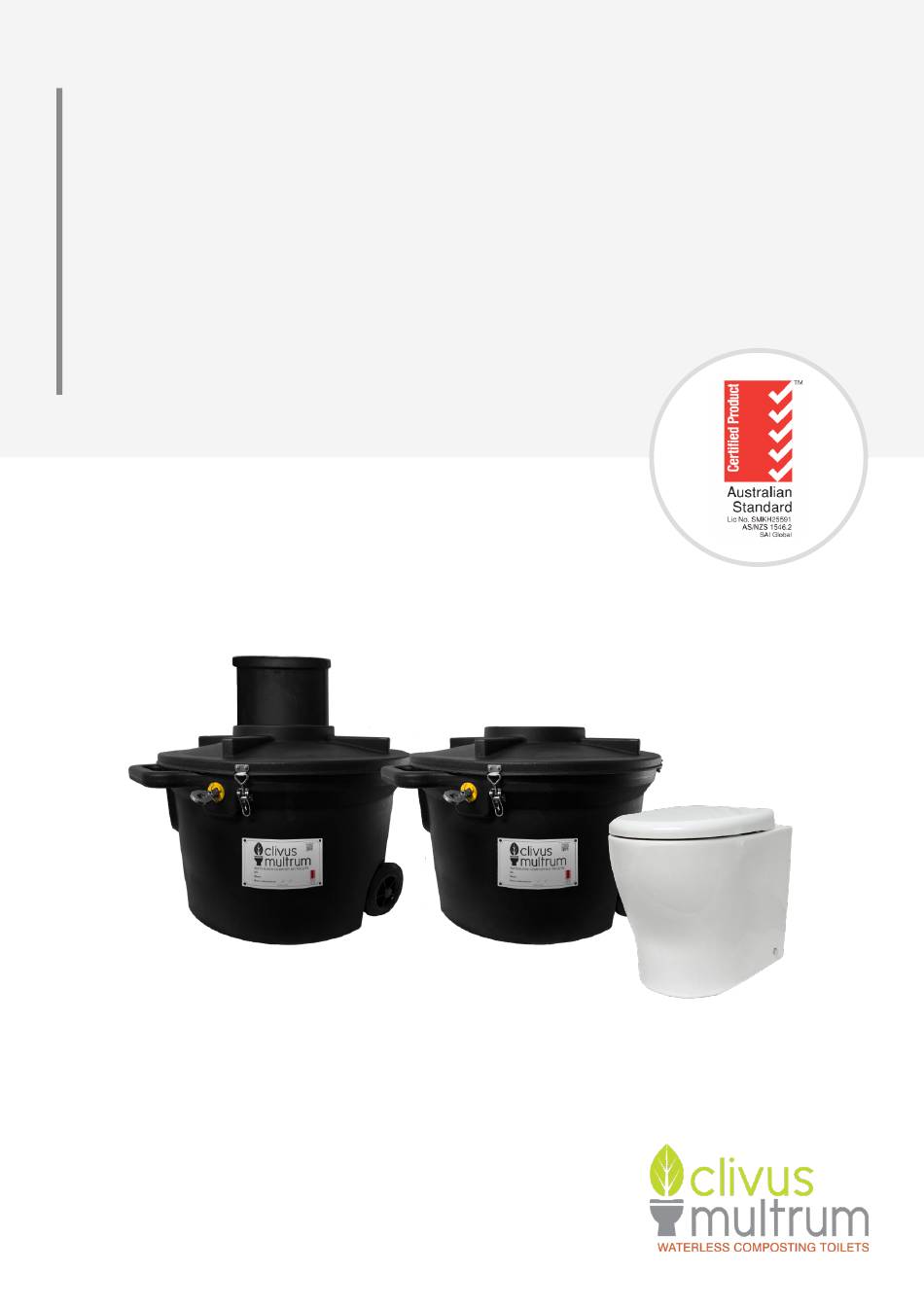

- Page 1 CLIVUS MULTRUM LOW PROFILE INSTALLATION & OPERATION MANUAL IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ITEMS REQUIRED (NOT INCLUDED) TOOLS REQUIRED SCHEMATICS INSTALLATION STEP 1: POSITION THE PEDESTAL STEP 2: POSITION THE WASTE CHUTE STEP 3: INSTALL THE WASTE CHUTE EXTRA LENGTH FOR UNDER-FLOOR AREAS STEP 4: INSTALL THE WHEELS STEP 5: INSTALL THE MIXER STEP 6: INSTALL THE CHAMBER STEP 7: CONNECT THE VENT PIPE AND FAN OPTIONAL EXTRAS... -
Page 3: Items Required (Not Included)
• 1.5m x 0.5m Synthetic or Hessian geotextile mat • 50mm PVC pipe to connect the hose to the agricultural pipe • 0.30m³ 20mm Aggregate A vent kit and drain kit are available to purchase separately from Ecoflo. TOOLS REQUIRED Marker... -
Page 4: Schematics
Ecoflo. L.I.T Reducer Vent pipe Chute Min. 500mm In-service Out-of-service chamber chamber T-piece* (3 way hose connector) Camlock fittings Excess liquid drain hose Leachate drain* IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 2... -
Page 5: Installation
NOTE: Due to the pedestals being man made, the distance to the center may vary from 245-255mm. Please check before cutting the hole. STEP 2: POSITION THE WASTE CHUTE A 240mm hole must be cut in the toilet room floor to accommodate the waste chute. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 3... - Page 6 If there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end of the cut joist, and fix all connections with galvanized framing anchors with 4 nails each leg (refer to diagram below). View from under floor IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 4...
-
Page 7: Step 3: Install The Waste Chute
First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Insert the chute into the hole Note: Remove lid before measuring. Mark position IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 5... -
Page 8: Extra Length For Under-Floor Areas
As the chute joints are tapered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 6... -
Page 9: Step 4: Install The Wheels
The compost mixer comes pre-assembled and installed in each chamber. Ring Gear Mixer Key Mixer Rake Crank handle for rotating the ring gear. Simply place the hook in the eyelet and turn clockwise. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 7... -
Page 10: Step 6: Install The Chamber
5. Rotate the lid to lock the catch 6. Lock the toggle latches as shown plates onto the pins. below. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 8... -
Page 11: Step 7: Connect The Vent Pipe And Fan
T-piece* (3 way hose connector) Camlock fittings OPTIONAL EXTRAS Excess liquid drain hose These optional kits are available to purchase separately from Ecoflo Wastewater Management. Leachate drain* 100mm DWV vent kit: Extra chamber connection kit: • Y junction • ø100mm DWV Pipes •... -
Page 12: Step 8: Connect The Flexible Vent Pipe And Liquid Drain Hose
Dip the ends of the vent pipe into hot water for easier insertion of the pipe connectors. MI Connector Slotted Pipe Flexible Vent Pipe Connector Nipple Female Male Barbed Liquid Drain Hose Camlock Camlock IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 10... -
Page 13: Powering Your Fan
The fan has anti-polarity protection and would not run if connected incorrectly. Connect the fans to the transformer as follows: olar ower Refer to separate installation manual for the solar panel. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 11... -
Page 14: Leachate Drain
LEACHATE DRAIN A leachate drain kit (not including gravel) is available to purchase separately from Ecoflo Wastewater Management. Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked slotted Ag pipe, buried in an absorption trench as shown in the diagram below. -
Page 15: Composting Accelerators
Any staining of the pedestal can also be removed with the spray. icroBes This should be used each time a chamber is changed to kick start the process in the new chamber. Shop consumables: ecoflo.com.au/products/consumables IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 13... -
Page 16: Maintenance
It is important to observe safety procedures when dealing with fresh human waste. Please ensure you wear protective clothing (gloves and old clothes). Do not attempt to move the chambers on your own. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 14... -
Page 17: Rotation Of Chambers
If the ‘Out-of-service’ chamber is to be placed away from the Main Vent assembly, you will need to dig a small second trench 200 x 200 x 200mm to allow residual liquid to exit the chamber. Connect the second liquid drain hose from the chamber to the trench. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 15... -
Page 18: Troubleshooting
If you need to change your ‘In-service’ chamber and the ‘Out-of-service’ chamber is not yet composted, dispose of the waste as normal and order an extra chamber from Ecoflo. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd... - Page 19 Cover the pedestal with cling film until the power is restored. If you are connected to mains power consider installing an Uninterrupted Power Supply (UPS), available at Ecoflo. The UPS will cut in with power from a 7Ah battery when there is a loss of mains power.
-
Page 20: Product & Component Warranty
Items subject to a dispute, where photographic evidence is inconclusive, must be sent prepaid to Ecoflo. The cost will be reimbursed by Ecoflo should the claim be found valid. In addition to the above, Ecoflo will only replace a fan that fails during the warranty period under the following conditions: •... -
Page 21: Maintenance Schedule
The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’. aTe chaMBers were lasT roTaTeD Wear protective clothing including gloves and eyewear when servicing, rotating or emptying chambers. IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 19... - Page 22 Ecoflo Wastewater Management Pty Ltd ecoflo.com.au clivusmultrum.com.au Phone: 1300 138 182 (07) 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMCM-203-2023.04.18 ©Ecoflo Wastewater Management Pty Ltd Page 20...
