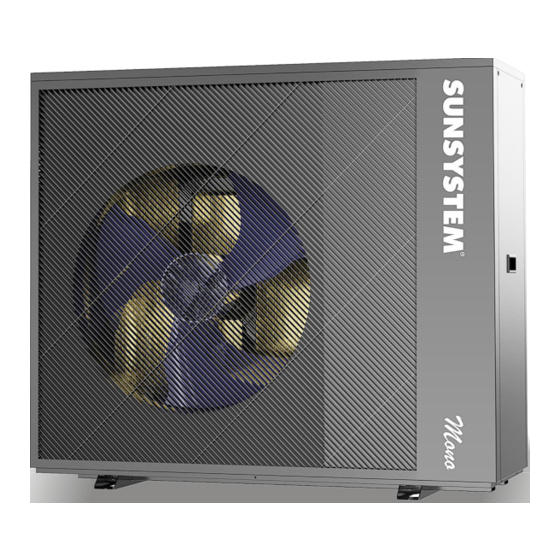

- Page 1 EVI DC inverter heat pump for heating and cooling - monobloc (with Wi-Fi control) TECHNICAL PASPORT INSTALLATION AND OPERATION MANUAL Version 0.2...
-
Page 2: Table Of Contents
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ CONTENT BASIC INSTRUCTIONS AND WARNINGS ................4 HEAT PUMP ENERGY SAVING TIPS ..................4 HEAT PUMP INSTALLATION ....................5 INSTALLATION OF THE HEAT PUMP ..................7 ELECTRICAL CONNECTIONS ....................17 OPERATION OF THE HEAT PUMP .................. - Page 3 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ GENERAL FEATURES: Dear clients, before using the device, 1. General Features familiarize yourself with this instruction for installation, storage and operation. 1. Low running costs and high efficiency We hope that the appliance you have ·A high coefficient of performance (COP) of up purchased will contribute to creating coziness...
-
Page 4: Basic Instructions And Warnings
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 1. BASIC INSTRUCTIONS The power cable has a standard tip, which must be connected to a AND WARNINGS standard outlet (16A; 230V). The outlet must have a separate power Before starting installation... -
Page 5: Heat Pump Installation
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ prolonged period, then you might choose ease of serviceability. to turn the heat pump off or decrease the 3.2. Installation details: temp. setting of the control several degrees to Prevailing local conditions, such as the minimize energy consumption. - Page 6 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 3.2.5. The heat pump must be mounted with shock-resistant bushings to prevent vibration and/or imbalance. 3.2.6. Although the controller is waterproof, care should be taken to avoid direct sunlight and high temperature.
-
Page 7: Installation Of The Heat Pump
ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4. INSTALLATION OF THE HEAT PUMP 4.1. Dimensions of the heat pump. PW030-DKZLRS-B/S SUNSYSTEM MONO R32-0840-1PH PW040-DKZLRS-B/S PW040-DKZLRS-B SUNSYSTEM MONO R32-0130-1PH 1079 PW050-DKZLRS-B/S PW050-DKZLRS-B PW060-DKZLRS-B SUNSYSTEM MONO R32-0160-1PH / SUNSYSTEM MONO R32-0230-3PH 1050... - Page 8 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4.2. Heat pump components. SUNSYSTEM MONO R32-0840-1PH / SUNSYSTEM MONO R32-0130-1PH № SPARE PARTS № SPARE PARTS 1. Chassis 18. Electric box cover 2. Water pump 19. Top panel 3.
- Page 9 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ SUNSYSTEM MONO R32-0160-1PH / SUNSYSTEM MONO R32-0230-3PH / SUNSYSTEM MONO R32-0261-3PH / SUNSYSTEM MONO R32-0308-3PH № SPARE PARTS № SPARE PARTS 1. Chassis 20. Driver board 2.
- Page 10 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4.3. Installation location. 4.5. Minimum distances during installation. 4.5.1. Minimum distances in mm for 1 Choose a place with good air outdoor unit with 1 and 2 fans: circulation so that the cooled air can flow in and the warm air can flow out.
- Page 11 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ c) Arrangement in a row: Air inlet Air inlet Air inlet Air inlet Air inlet > 500 > 500 > 500 > 500 > 500 >...
- Page 12 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ G/ Brackets for floor mounting; G/ Designer cover with console; H/ Strip foundation; H/ Strip foundation; K/ Frost protection for the foundation K/ Frost protection for the foundation (compacted gravel, e.g. 0 to 32/56 mm), layer (compacted gravel, e.g.
- Page 13 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Do not close the openings.; G/ Designer cover with console; G/ Brackets for floor mounting; H/ Strip foundation; H/ Strip foundation; K/ Frost protection for the foundation (compacted gravel, e.g.
- Page 14 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4.6.2. Wall mounting. b) Wall mount with wall mount а) Wall mounting with a set of wall bracket kit and designer trim. mounting brackets. A/ Gravel layer for percolation of condensate; A/ Gravel layer for percolation of condensate; B/ Vibration isolation;...
- Page 15 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ charge valve, Three-way valve. Temperature 4.7. Drainage and Condensation sensor should be added in the storage water Condensation will occur from the evaporator tank. An additional electric heater can be when the unit is running and drain at a steady installed in the DHW tank or the buffer tank rate, depending upon ambient air temp.
- Page 16 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Sheme 2. Scheme of installation 2 Safety valve Hot water outlet Hot Water Tank EXTERNAL MODULE Cool water inlet Safety valve Fan convectors Hot water outlet 3-way valve Radiators Cool water inlet Floor pipe Water Tank...
-
Page 17: Electrical Connections
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 5. ELECTRICAL CONNECTIONS Risk of electrical shock or electrocution. Ensure that all high voltage circuits are disconnected before commencing heat pump installation. Contact with these circuits could result in death or serious injury to users, installers or others, due to electrical shock and may also cause... - Page 18 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 5.3. Electrical Wiring Diagram. 5.3.1. Single phase system (SUNSYSTEM MONO R32-0840-1PH / SUNSYSTEM MONO R32-0130- 1PH ).
- Page 19 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 5.3.2. Single phase system (SUNSYSTEM MONO R32-0160-1PH). Water tank temp Return gas temp Exhaust gas temp Ambient temp Water tank heater Water tank Heating coil temp...
- Page 20 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 5.3.3. Three phase system (SUNSYSTEM MONO R32-0230-3PH / SUNSYSTEM MONO R32-0261-3PH / SUNSYSTEM MONO R32-0308-3PH). Water Outlet temp Ambient temp Cooling coil temp Return gas temp Water tank heater...
-
Page 21: Operation Of The Heat Pump
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 6. OPERATION OF THE HEAT PUMP 6.3. Definition of Buttons. 6.1. Controller panel. Buton Description Function When the heat pump is off, all buttons are On/Off turn on or turn off the heat gray, and when on and running, all buttons... - Page 22 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 6.4.3. Operate mode selection. Buton Function Description Status Check the running parameters of the heat pump Faulty Record the most recent error codes WiFi Wifi settings System Check and set the system parameters of the heat pump parameters Factory...
- Page 23 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 6.4.7. Timer settings. In the main interface, press TIMER button to enter timing setting interface. -In the WEEK column, users can select which weekdays to perform timer switch.
- Page 24 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 6.4.9. System parameters query & settings. Description Remark Press “SETTING” in the main interface to enter Water inlet temperature -30~99 setting interface, then press “SYSTEM Water outlet temperature -30~99 PARAMETERS”...
- Page 25 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Description Range Default Code Р01 Temperature difference of return water and cooling target 2~18 temperature Р02 Temperature difference of return water and hot target temperature 2~18 Р03 Hot water setting temperature...
- Page 26 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Description Range Default Code Celsius/Fahrenheit switch 0-Celsius / 1-Fahrenheit (0 is not enabled, Heating target temperature automatic Р22 1 is enabled) (only adjustment enable applicable at heating mode) Р23 Heating compensation temperature point 0-40 (ambient temperature)
- Page 27 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 6.4.10. High Temperature Antisepsis Function: 6.4.12. Auxiliary Electric Heater for Water (when hot water function is selected). Tank. High temperature Antisepsis Start conditions (all below conditions must be cycle once every...
-
Page 28: General Operating Guide
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Shut-down condition: heating running. 1) Under Cooling or Hot Water Refrain from using this heat pump if Mode; any electrical components have been 2) Without Heating Demand or in contact with water. -
Page 29: General Maintenance
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 8.2.6. Safety Precautions: 9. GENERAL MAINTENANCE a) User can’t self-install the unit, ensure agent 9.1. Controller Error Codes. or specialized install company to do, or else maybe cause safety accident and affect the If there’s error in the heat pumps, the error use effect. - Page 30 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Definition of Error or Protection Error Code Er 03 Water flow failure Er 04 Antifreeze in winter Er 05 High pressure fault Er 06 Low pressure fault Er 09 Communication failure Er 10 Communication failure of frequency conversion module...
- Page 31 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ When there’s Er 20 error in the system, it will display below detailed error code from 1 to 348. Among them, 1~128 are in the first class, when will be displayed as priority, 257~384 are in the second class, which will be displayed only when error 1~128 don’t appear.
- Page 32 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 9.2. Common Faults and Debugging Common Faults and Debugging Error Status Possible Reason Solution Power fault Put off the power switch, check the Wiring loose power supply find out the causes and repair Heat pump not Fuse blow fused...
-
Page 33: Wifi Connection And Operation
INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 10. WIFI CONNECTION AND OPERATION WIFI Connect Method 2: intelligent network distribution mode: 10.1. APP Download. The 1st step: Please go to “Google Play Store” or “Apple By default, it can be connected within 10s App Store”... - Page 34 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Remarks: When the wired controller’s WIFI module is connected to the WIFI hotspot, the AP mode add device interface, confirm that icon flashes fast. the AP network configuration mode is selected icon flashes), click "Next"...
- Page 35 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 10.2. Software function operation. 10.2.1. Interface Introduction. Click "My house Heat Pump" in "All Devices" in After the device is successfully bound, enter the main interface of "Smart Life" APP to the "My house Heat Pump "...
- Page 36 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ Click "Work mode" on the main interface of temperature). the equipment operation to switch mode, and the mode selection interface will pop up as shown in the figure below, just click the mode you need to select.
- Page 37 INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 10.2.7. Timer settings. be started, then the electric heating will be started instead of the compressor after 5 In the Setting interface, click ”timing” to enter minutes.
-
Page 38: Technical Parameters
Model: SUNSYSTEM SUNSYSTEM SUNSYSTEM MONO R32- MONO R32- MONO R32- INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 0840-1PH 0130-1PH 0160-1PH Nominal heating power Heating mode: ambient temperature +7 C/water (input - output) 30-35 Output heating power (kW) 1.57-8.40... - Page 39 Model:- SUNSYSTEM SUNSYSTEM SUNSYSTEM MONO R32- MONO R32- MONO R32- INSTALLATION and OPERATION MANUAL INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 0230-3PH 0261-3PH 0308-3PH Nominal heating power 26,2 Heating mode: ambient temperature +7 C/water (input - output) 30-35 Output heating power (kW) 7.50-23.0...
- Page 40 tel.: +359 700 17 343 www.burnit.bg...
