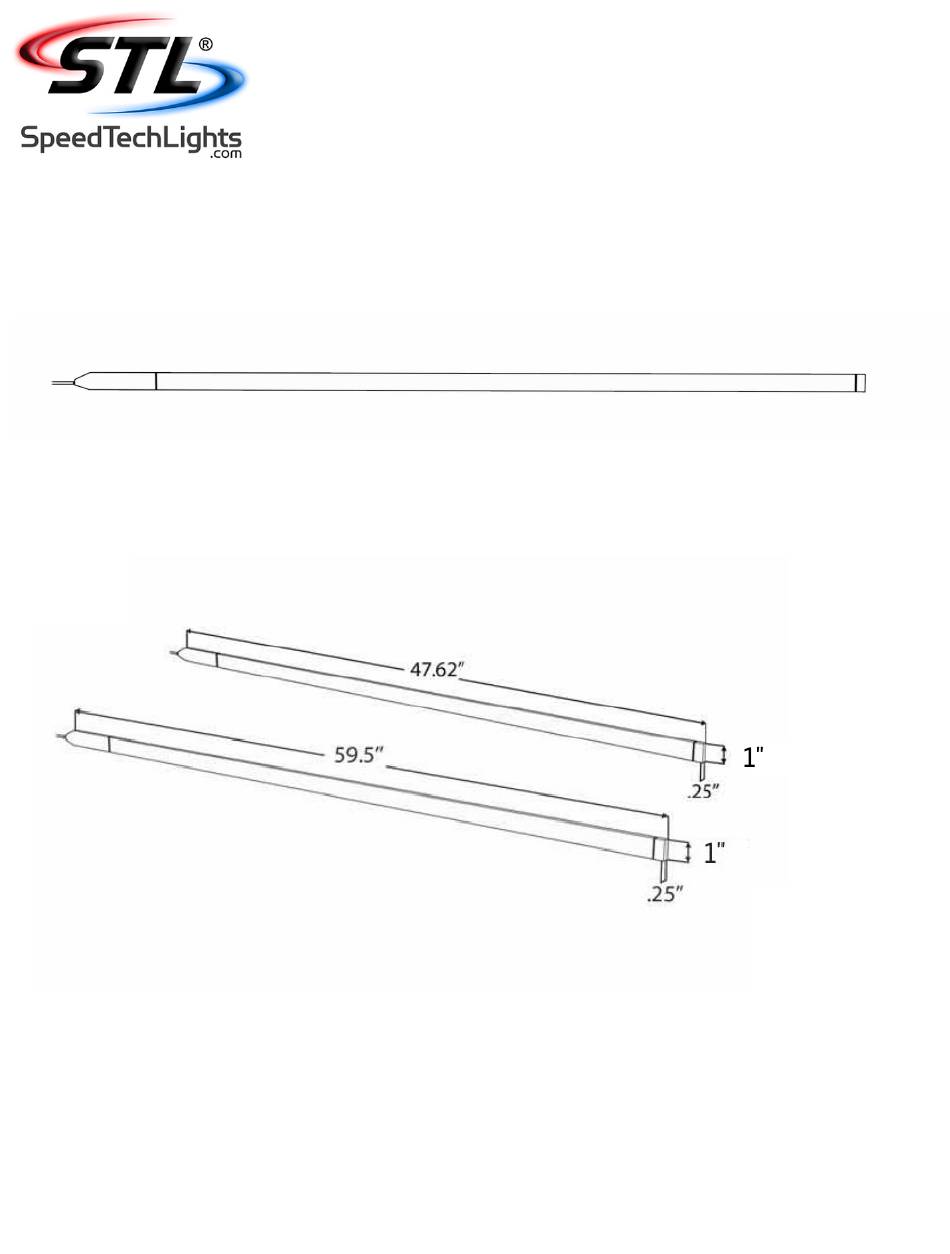

- Page 1 / 60 TAILGATE ” ” WARNING LIGHTBAR T-TGW48 T-TGW60 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2023...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. -
Page 4: Specifications
/ 60 TAILGATE ” ” WARNING LIGHTBAR Wiring Diagram Wire Color Function Wire Color Function Red* Positive Yellow Flash Pattern Black* Negative Green Reverse/Steady Burn White * Indicates a main power cable. NOTE: All cables except Ground contact +DC. Specifications Voltage 12 VDC Amps... - Page 5 / 60 TAILGATE ” ” WARNING LIGHTBAR Mounting the Tailgate Lightbar • Unhinge and remove your tailgate (if necessary). • Clean the mounting area thoroughly and make sure to remove all dirt and dust to ensure best adhesive contact. • Position 2 of the mounting clips at each end of the lightbar and equally space out the remaining clips.
- Page 6 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by folowing the wiring diagram and contacting the Flash Pattern cable to +12 VDC to cycle through the various patterns.
