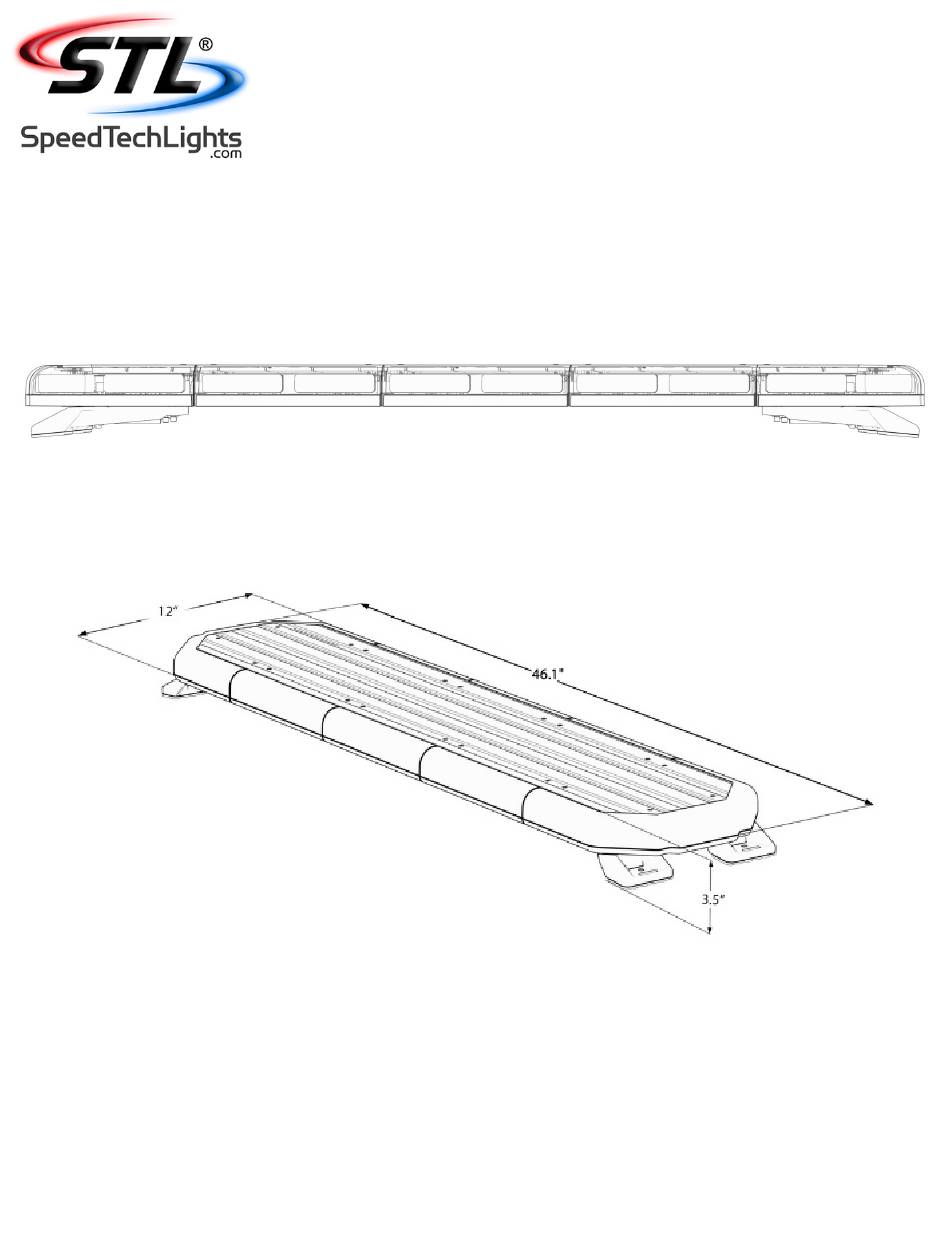

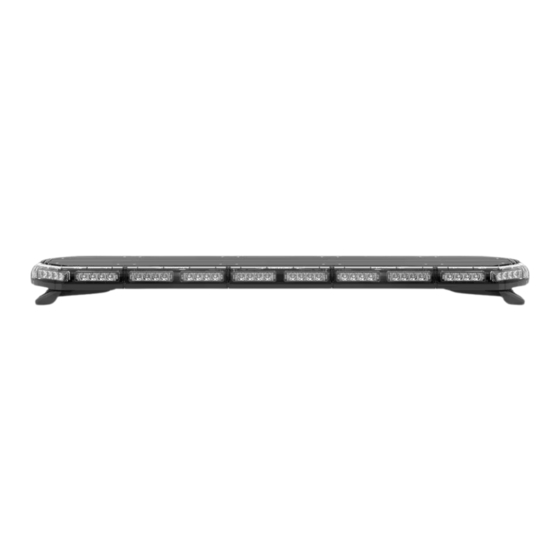

- Page 1 K-FORCE SUPER TD 47 ® FULL LIGHT BAR F-TKFSTD47 F-LKFSTD47 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. -
Page 4: Wiring Diagram
K-FORCE SUPER TD 47 ® FULL LIGHT BAR Wiring Diagram Wire Color Function Wire Color Function Positive Left Arrow Red (Thick)* Blue Negative Center Out Arrow Black (Thick)* White Forward Facing Lights Right Arrow Brown Orange Rear Facing Lights Cruise Lights (4 Corners) Light Blue Grey Full 360°... - Page 5 K-FORCE SUPER TD 47 ® FULL LIGHT BAR Supreme Control Switch Box Operation (Sold Separately) Slide Switch: • Off position: Turns off warning functions of the Light Bar. • 1st position: Powers only the front of the Bar and forward facing 45° warning modules. •...
- Page 6 K-FORCE SUPER TD 47 ® FULL LIGHT BAR Foot Brackets (Included) • This unit comes included with adjustable Foot Brackets. • Adjust the Foot Brackets along the length of the aluminum track accordingly to create a flat, even contact with the roof. Universal Mounting Brackets (Included) •...
-
Page 7: Flash Pattern List
About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Supreme Control Box to cycle through the various patterns.
