Paragon HydraFLOW Installation, Operation And Maintenance Manual page 6

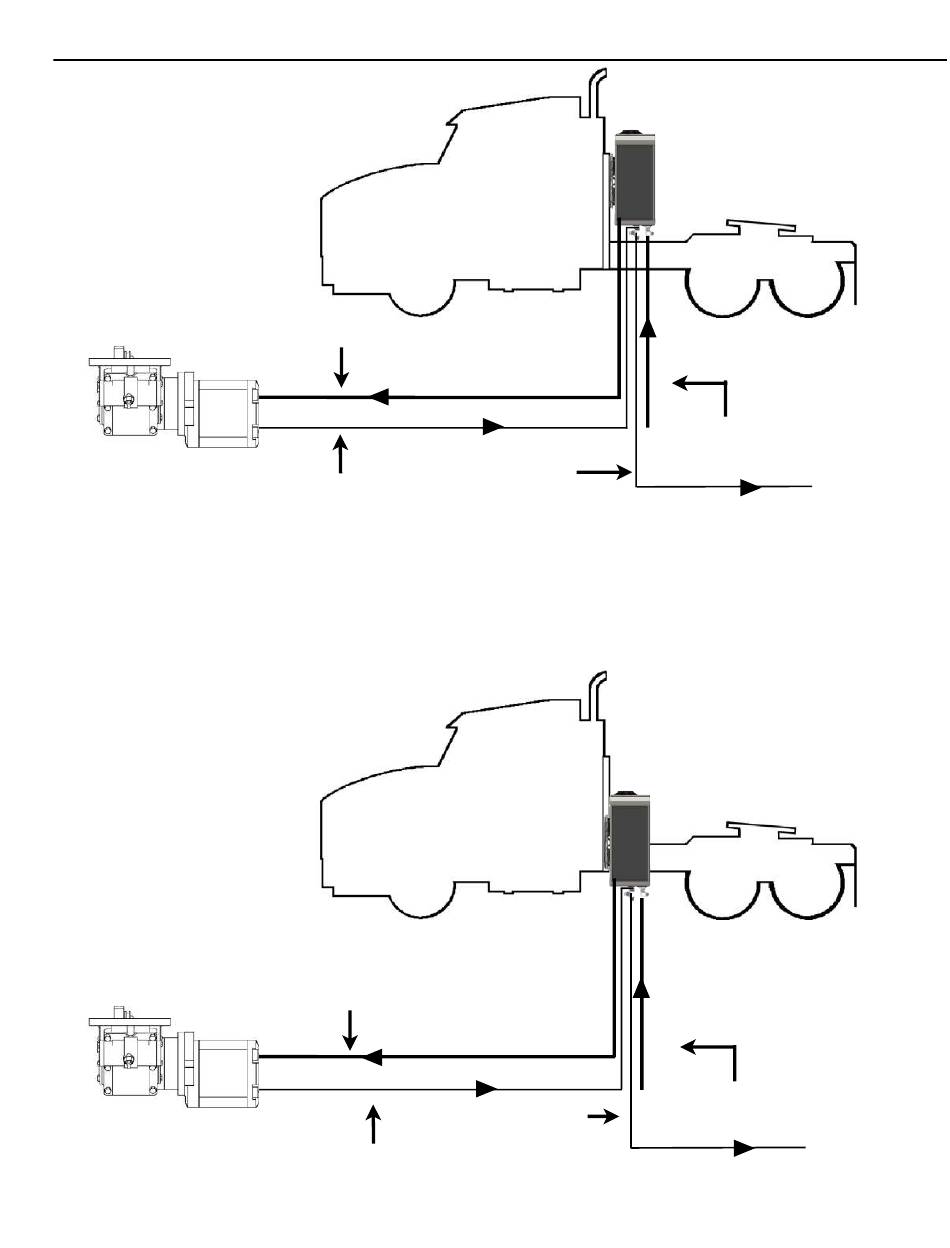

Preferred behind the cab mount
(optimum suction conditions, Fig. 2)
BEST Suction Condition:
Behind Cab Mount
Suction (see page 4)
Low Pressure Return
Motor to HydraFlow 1"
High Pressure to
Hydraulic Motor 3/4"
High Pressure
Pump to HydraFlow 3/4"
Note:
• Review Hose Chart (Fig. 1) to ensure the correct suction hose sizing.
• For off road applications do not mount HydraFLOW directly to the frame rail. Behind the cab
mount is recommended.
• See system circuit drawing for complete hydraulic plumbing.
Alternate Frame Rail Mount
(Fig. 3)
Suction (see page 4)
Low Pressure Return
Motor to HydraFlow 1"
High Pressure to
Hydraulic Motor 3/4"
High Pressure
Pump to HydraFlow 3/4"
