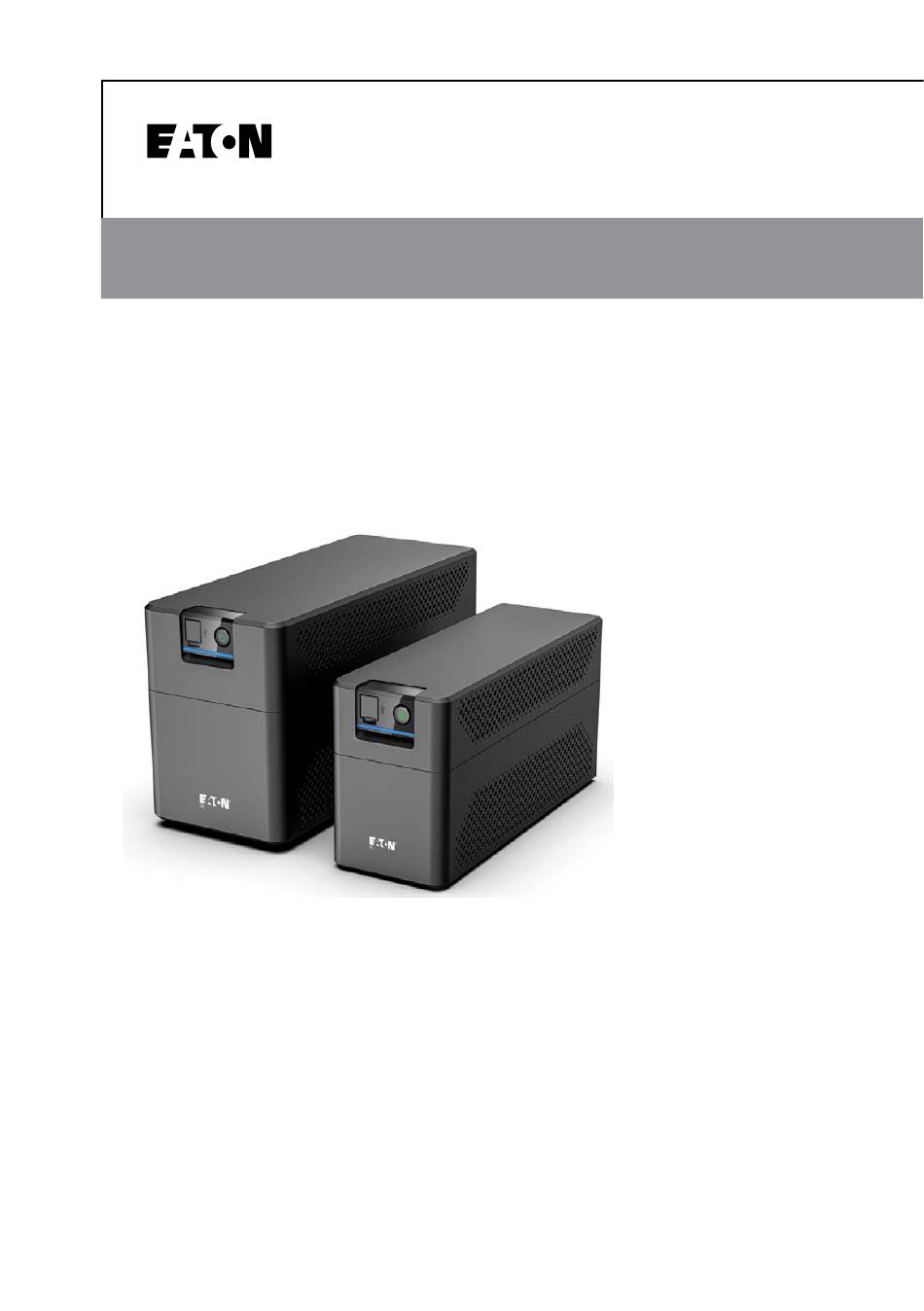

- Page 1 Eaton 5E Advanced User Guide 5E700UI-EA 5E900UI-EA 5E1200UI-EA 5E1600UI-EA 5E2200UI-EA Copyright © 2023 EATON All rights reserved. DSD-5E2206 English...
-
Page 3: Table Of Contents
Contents 1 Special symbols ....................1 2 Introduction ....................2 2.1 Environmental protection ................. 2 2.2 Benefits ..................... 3 3 Presentation ....................4 3.1 Standard installation ................. 4 3.2 Front panel ................... 5 3.3 Rear panel ....................5 4 Installation ....................... 6 4.1 Inspecting the equipment ................. 6 4.2 Recommended positions ................ -
Page 5: Special Symbols
1 Special symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: DANGER: Dangerous voltage levels are present within the UPS. The UPS has its own internal power source (the battery). Consequently, the pow- er outlets may be energized even if the UPS is disconnected from the AC power source. -
Page 6: Introduction
2 Introduction Thank you for selecting an Eaton 5E product to protect your electrical equipment. The Eaton 5E range has been designed with the utmost care. We recommend that you take the time to read this advanced user guide to take full advantage of the many features of your UPS (Uninterruptible Power System). Before installing your Eaton 5E, please read the information and safety instruc- tions provided. Follow the instructions in the quick start guide and if necessary, refer to this advance user guide. -
Page 7: Benefits
Follow all local regulations for the disposal of packing materials. 2.1.3 End of life Eaton will process products at the end of their service life in compliance with local regulations. Eaton works with companies in charge of collecting and eliminating our products at the end of their service life. 2.1.4 Product The product is made up of recyclable materials. Dismantling and destruction must take place in compliance with all local regulations concerning waste. At the end of its service life, the product must be transported to a processing cen- ter for electrical and electronic waste. -
Page 8: Presentation
3 Presentation 3.1 Standard installation 3.1.1 Weights and dimensions Description (UPS) Weights (kg / lbs) Dimentions (mm / inch) D x W x H 5E700UI-EA 4.2 / 9.3 288 x 100 x 148 / 11.5 x 3.9 x 5.8 5E900UI-EA 5.2 / 11.4 288 x 100 x 148 / 11.5 x 3.9 x 5.8 5E1200UI-EA 8.2 / 18.2... -
Page 9: Front Panel
3.2 Front panel 1. USB communication port 2. ON/OFF Button 3. UPS status LED 3.3 Rear panel 5E700UI-EA / 5E900UI-EA 5E1600UI-EA / 5E2200UI-EA 5E1200UI-EA AC Input Breaker AC Output... -
Page 10: Installation
4 Installation 4.1 Inspecting the equipment If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for the carrier or place of purchase and file a claim for ship- ping damage. If you discover damage after acceptance, file a claim for concealed damage. To file a claim for shipping damage or concealed damage: 1. File with the carrier within 15 days of receipt of the equipment; 2. Send a copy of the damage claim within 15 days to your service representative. Check the battery recharge date on the shipping carton label. If the date has passed and the batteries were never recharged, do not use the UPS. Contact your service representative. 4.1.1 Package content Verify that the following addi- tional items are included with the UPS: 1. UPS 2. Connection cables 3. Instructions and Safety Infor- mation 4. -
Page 11: Recommended Positions
4.2 Recommended positions Place the Eaton 5E on a flat, stable surface in its final location. Always keep 6” or 150 mm of free space near UPS openings for ventilation. Installation in tower position 4.3 UPS connection 4.3.1 Power supply connection Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source and the true electrical consumption of the total load. Connect the UPS to the AC-power source with cable through a wall outlet equipped with an earth connector, using your equipment cord. 1. Disconnect the protected equipment, keep the power cable 2. Connect IEC cable on protected equipment side. 3. Connect IEC cable provided on UPS AC output side 4. Connect the power cable to UPS AC inlet... - Page 12 4.3.2 Protected outlets / Backup & Protected outlets Plug critical equipment (computer, monitor, modem, etc.) to the backup & pro- tected outlets providing battery backup power, taking care not to exceed the rated current indicated in amperes. Equipment connected to these outlets is supplied as soon as the AC cord is plugged in. These are not affected by ON/OFF button.
-
Page 13: Usb Com Port
4.4 USB COM port Connect the UPS to the computer using the USB cable. Enhance your purchase by downloading the monitoring software “Eaton UPS Com- panion” using URL : eaton.com/downloads... -
Page 14: Operation
5 Operation 5.1 Start-up and normal operation Check that the indications on the name plate located on the back of the UPS meets to the AC power source and the true electrical consumption of the total load. 5.1.1 Battery charge The UPS charges the battery as soon as it is connected to the AC outlet, whether the ON/OFF button is pressed or not. It is recommended that the UPS be perma- nently connected to the AC power supply to ensure the best possible autonomy. Button function: 1. Buzzer mute: Push the button for <2s to mute the buzzer temporarily when there is a fault occur or battery test fail. 2. UPS on/off: Push the button for >2s, then to power on/off the UPS. 3. Silence mode: Let UPS working in the standby mode, then to push the button for >11s to enter the configuration mode. To start the UPS: 1. -
Page 15: Starting The Ups On Battery
4. Verify that the indicator illuminates in green, indicating that the UPS is op- erating normally and any loads are powered and protected. The UPS should be in Normal mode. 5. The UPS will make a first battery test, the will blink for few seconds, this behavior is normal > 2 s 5.2 Starting the UPS on battery To start the UPS on battery: 1. When the UPS is disconnected from the AC power source, press the button on the UPS front panel. The UPS transfers from Standby mode to Battery mode. -
Page 16: Operating Modes
5.4 Operating modes The Eaton 5E front panel indicates the UPS status through the UPS LED indicator. 5.4.1 Normal mode When the symbol is illuminated in green, the UPS is providing protected AC power output. The UPS charges the batteries and provides power protection to your equipment. 5.4.2 Battery mode When the UPS is operating during a power outage, the alarm beeps once every five seconds and the indicator illuminates blinking. The necessary energy is provided by the battery. -
Page 17: Ups Maintenance
For full battery life, keep the equipment at an ambient temperature of 25 °C (77 °F). The batteries are rated for a 3-5 year service life. The length of service life varies, depending on the frequency of usage and ambient temperature (life divided by 2 each 10 °C above 25 °C). If the UPS requires any type of transportation, verify that the UPS is turned off. Batteries used beyond expected service life will often have severely reduced run- times. Replace batteries at least every 4 years to keep units running at peak per- formance. Batteries runtime will be reduced at low temperature (below 10 °C). 6.2 Storing the equipment If you store the equipment for a long period, recharge the battery every 6 months by connecting the UPS to utility power. The internal batteries charge to 90% capac- ity in less than 3 hours. However, Eaton recommends that the batteries charge for 48 hours after long-term storage. Check the battery recharge date on the shipping carton label. If the date has passed and the batteries were never recharged, do not use them. Contact your service representative. 6.3 Recycling the used equipment Contact your local recycling or hazardous waste center for information on proper disposal of the used equipment. eaton.com/recycling Do not dispose the battery or batteries in a fire. Batteries may explode. Proper disposal of batteries is required. Refer to your local codes for disposal requirements. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic. Do not discard the UPS or... - Page 18 the UPS batteries in the trash. This product contains sealed, lead acid batteries and must be disposed of properly. For more information, con tact your local recycling/reuse or hazardous waste center. Do not discard waste electrical or electronic equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazard ous waste center.
-
Page 19: Troubleshooting
7 Troubleshooting The Eaton 5E is designed for reliable, autonomous operation while providing you with notifications and alerts whenever a potential operational or performance issue occurs. Usually the alarms shown by the control panel do not mean that the output power is affected. Instead, they are preventive alarms intended to alert the user. • Events are silent status information that are recorded into the Event log. Exam- ple = “AC freq in range”. • Alarms are recorded into the Event log and displayed on the LCD status screen with the logo blinking. Some alarms may be announced by a beep every 3 sec- onds. Example = “Battery low”. -
Page 20: Service And Support
Contact your service fails. defective. representative. 7.1 Service and support If you have any question or problem with the UPS, call Eaton or your local ser- vice representative in your country / region. Please have the following information ready when you call for service: • Model number • Serial number • Firmware version number •... -
Page 21: Specification And Technical Characteristics
8 Specification and technical characteristics 8.1 Electrical input Catalog Number Nominal Current Nominal Voltages Voltage Windows 5E700UI-EA 3.8A 5E900UI-EA 4.8A 5E1200UI-EA 6.0A 220-240V; 50/60Hz 140-300V; 46-65Hz 5E1600UI-EA 8.6A 5E2200UI-EA 8.2 Electrical output All models Normal mode Battery mode Boost1 : Vin*1.2 Voltage regulation Boost2 : Vin*1.4 +10/-15% Buck : Vin*0.857... -
Page 22: Battery
700VA: 5A 900VA: 6A Short circuit current lim- Depend on the external fuse or breaker 1200VA: 16A itation in battery mode in the upstream of UPS 1600VA/2200VA: Short Time withstand 50ms current Transfer time 10ms for on-line to battery mode 8.3 Battery Internal batteries 700VA: 12Vdc –... - Page 23 This UPS can be connected to TN, TT, IT electrical supply system, same Earthing system system is supplied to the load. Protective Class Class I Operating 0 to 40 °C (32 to 104 °F) temperature Storage 0 to 40 °C (32 to 104 °F) with battery temperature -25 to 55 °C (-13 to 131 °F) without battery Relative...
-
Page 24: Glossary
9 Glossary Time during which the load can be supplied by the UPS operat- Backup time ing on battery power. This is a battery-voltage level indicating that battery power is low Low-battery warning and that the user must take action before the UPS shuts down. Load Devices or equipment connected to the UPS output.
