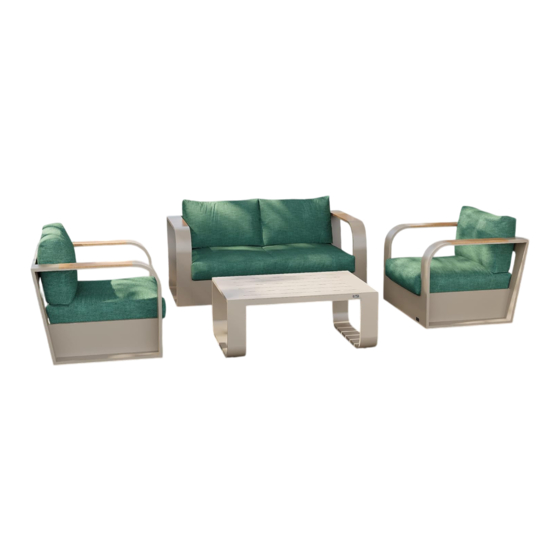

- Page 1 4-Piece Patio Conversation Set Owner’s Manual MODEL: PCS23004 PCS23005 PCS23006 EASTOAK.COM OWNER’S MANUAL...
- Page 2 Questions? Comments? Reach out to us for expert support! support@eastoak.com eastoak.com 1-833-EAST-OAK ( USA ) ( 1-833-327-8625 ) Follow eastoakliving on Follow Follow eastoakliving eastoakliving on Claim your 3-year warranty Please scan the QR code to view the installation video at eastoak.com/warranty 4-PIECE PATIO CONVERSATION SET EASTOAK.COM...
- Page 3 IMPORTANT CAUTION • Keep the set out of the fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, snow, or wind. PLEASE NOTE that the metal paint may Please check all parts and components to ensure that there are no damages or come off due to weather conditions.
-
Page 4: Parts List
PRODUCT ASSEMBLY - SINGLE SOFA PARTS LIST Align the hole position Align the hole position of the single sofa seat with the hole position of the right arm and Right arm Left arm stick them tightly. A (3PCS) B (3PCS) Single Single sofa seat... - Page 5 Fix the back on one side Install screws (X1) (X4) (X5) After aligning the back with the right arm, fix Fix with screws. (X1) (X1) them with screws. Align the hole position Align the back with the left arm, and at the same time align the hole position of the single sofa seat with hole position of the left arm and stick them tightly.
- Page 6 Tighten screws Fix the seat cushion Tighten all the screws. Tie the seat cushion to the seat tube with Velcro. 100% 4-PIECE PATIO CONVERSATION SET EASTOAK.COM OWNER’S MANUAL...
- Page 7 PRODUCT ASSEMBLY - LOVESEAT Place the back cushion Align the hole position Place the back cushion on the seat. Align the hole position of the loveseat seat with the hole position of the right arm and stick them tightly. Install screws Fix the loveseat seat and right arm with (X4) (X4)
- Page 8 Fix the back on one side Install screws (X1) (X4) (X5) After aligning the loveseat back with the right (X1) (X1) Fix with screws. arm, fix them with screws. Align the hole position Tighten screws Align the back with the left arm, and at the same time align Tighten all the screws.
- Page 9 Fix the seat cushion Place the back cushion Put the back cushion on the seat. Tie the seat cushion to the seat tube with Velcro. 4-PIECE PATIO CONVERSATION SET EASTOAK.COM OWNER’S MANUAL...
- Page 10 PRODUCT ASSEMBLY - TABLE Align the table top with the table leg on one side. Align the table top with the table leg on one side. Install screws Install screws Fix with screws. (X4) (X4) (X4) (X4) Fix with screws. 4-PIECE PATIO CONVERSATION SET EASTOAK.COM OWNER’S MANUAL...
- Page 11 Tighten the screws Tighten all the screws. 100% 4-PIECE PATIO CONVERSATION SET EASTOAK.COM OWNER’S MANUAL...
-
Page 12: Warranty Policy
A pair of wide armchairs helps provide a comfortable experience. Soft GUARANTEED 3-YEAR WARRANTY sponge-fi lled seats give you extra comfort. Thank you for choosing East Oak. This product is covered by our company • The covers of cushions can be removed for easy cleaning and warranty for up to 3 years from its original purchase date. - Page 13 support@eastoak.com eastoak.com 1-833-EAST-OAK (USA) 4-PIECE PATIO CONVERSATION SET...
