Technical Support and E-Warranty Certificate www.vevor.com/support
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
CAR REFRIGERATOR
USER MANUAL
MODEL: T35K T45K T55K
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR T35K
Summary of Contents for VEVOR T35K
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support CAR REFRIGERATOR USER MANUAL MODEL: T35K T45K T55K We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.

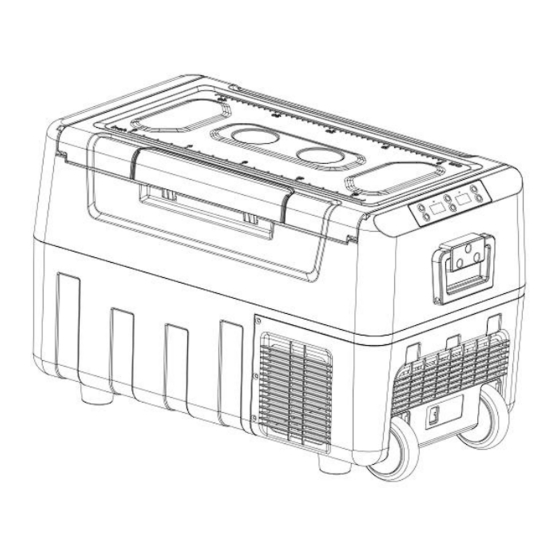

- Page 2 Car Refrigerator T35K T45K T55K <Picture Only For Reference > NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: CustomerService@vevor.com - 1 -...
-
Page 3: Connect The Power Supply
4.Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety. 5.This manual applies to T35K/T45K /T55K refrigerators (American and European markets). Connect the Power Supply 1.Find the DC power cord in the kit. Connect DC plug to the power outlet of the... - Page 4 car refrigerator. 2.Well place the refrigerators in the car (back-up, seats..). 3.Lay out power cords per your car's interior space. Then, insert the cigarette lighter plug (one side of the power cord) into the car cigarette lighter hole. 4.Press "ON/OFF" for 3 seconds, and the car refrigerator can be turned on. Adapter Connect the car cigarette lighter Connect the car refrigerator...
-
Page 5: Component Diagram
DC24.6V OFF DC22.3V OFF DC21.3V OFF DC24V DC26.0V ON DC23.7V ON DC22.7V ON Note: When the power supply is connected and the refrigerator is turned on, disconnecting or starting refers to disconnecting or starting the compressor. Component Diagram 1. Cabinet 2. - Page 6 ①Setting for large compartment ②large compartment ③Setting button ④Small compartment ⑤Setting for small compartment ⑥Cooling indicator ⑦ON/OFF button ⑧ Max/Eco △Function Introduction After power-on, the digital display screen will be fully lit for 1 second and displayed normally. The default is the last memory function. The display screen temperature figure will be permanently lit in the middle in standby mode.
- Page 7 If no operations were detected, the set level will flash for 3s, then exit and save the current setting. Model Parameter Table: Temper ature Capa Plug Model Voltage Adjust city type Power Power able AC100~24 Coolin plug Cooling 50~- (50/60Hz) T35K : 60W 4℉ DC12V/24V plug - 6 -...
- Page 8 AC100~24 Coolin 10~- plug Cooling (50/60Hz)D T35K : 60W C 12V/24V ℃ plug Coolin 100~240V plug Cooling 50~- (50/60Hz)D T45K : 60W 4℉ C 12V/24V plug Coolin 10~- 100~240V plug Cooling (50/60Hz)D T45K : 60W C 12V/24V ℃ plug Coolin...
- Page 9 Power-off Memory Function There is a power-off memory function for car refrigerators. When the power is lost, the working state (On/Off status, working mode, etc.) before power-off can be automatically recovered at the next startup; no need to set it again. ECO: Energy-saving coolingMAX: Powerful cooling Use Clapboard 1.Align with two rails on inner liner.
- Page 10 Simple Fault Analysis Advice: If abnormal situations cannot be resolved through a simple fault analysis, please get in touch with professional customer service for assistance. I. Car Refrigerator Does Not Work 1.Check if the power is connected correctly. (check If the plug is loosened or positive and negative poles are reversed).
- Page 11 When the ambient air humidity exceeds 75%, slight condensation will occur on the box surface, which is normal. Failures and Solutions △E1: Low Input Voltage Failure 1: Insert the refrigerator power cord into the cigarette lighter before the car starts. Solution 1: Wait a while to connect the car after it starts. Failure 2: The input voltage of the adapter is too low.
-
Page 12: Safety Precautions
compressor causes the overheating. Use Suggestions 1. If equipped with a backup battery, you can maintain any temperature you set under any circumstances without worries. 2. When placing ice cream, please adjust the temperature to the lowest; it must be powered on for a long time. - Page 13 at any time (The parameters are labeled with the approved voltage parameters of the onboard refrigerator). (2) Do not pour liquid directly into the car refrigerator. (3) Modifying the refrigerator without permission is forbidden to avoid danger. (4) This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
-
Page 14: Electrical Schematic Diagram
Electrical Schematic Diagram - 13 -... - Page 16 Technical Support and E-Warranty Certificate https://www.vevor.com/support...
