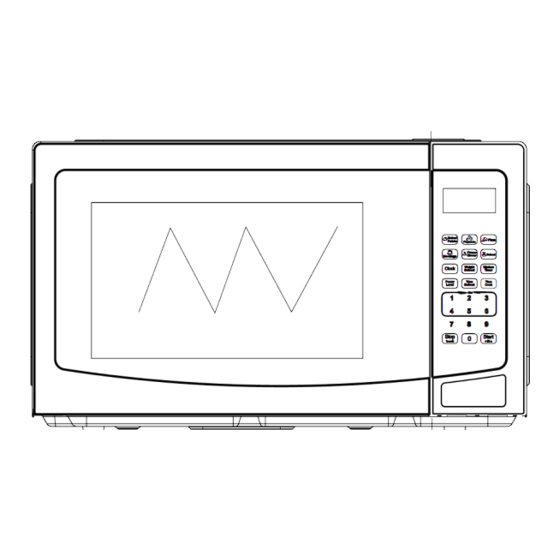

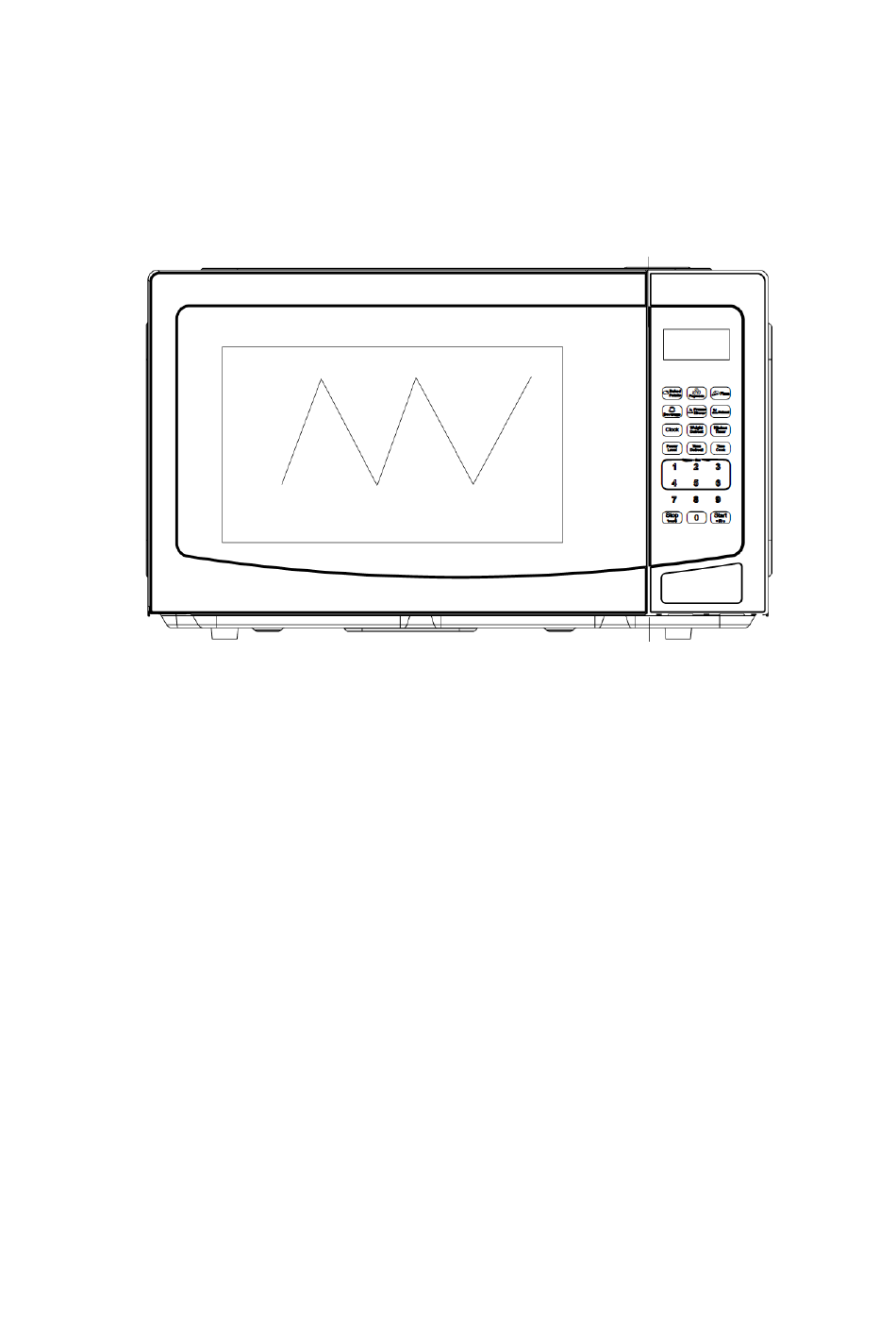

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL C28PCS20-A90 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
Household use only SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS …………。 。 ……………… ……… When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: Read all instructions before using the appliance. - Page 3 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water –...
- Page 4 SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. 18. Notice for extension cord: a. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
- Page 5 of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire. e.
- Page 6 damaged or the oven is malfunctioned or supply cord is damaged. Return the appliance to the nearest authorised service center for repair and maintenance. Never try to adjust or repair the oven yourself. 6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
- Page 7 15. This appliance is not intended for using by young children or infirm persons without supervision. 16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 17.
- Page 8 handling the container. 28. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 29. Eggs in their shell and whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
-
Page 9: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
38. The temperature of accessible surfaces may be high when the appliance is operating. CAUTION: HOT SURFACE 39. This device complies with Part 18 of the FCC Rules. 40. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. -
Page 10: Grounding Instructions
(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse. - Page 11 receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance, or .INSTALLATION… …………………………………………………..…… … .… 1. Take out all the packing. if there is a safe film over the oven, tear it off before Use.
-
Page 12: Microwave Oven Care
place a cup of water in the turntable, setting at high power and operate for several times. .CLEANING …………………… …………… MICROWAVE OVEN CARE The oven should be cleaned regularly and any food deposits removed. 1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy... -
Page 13: Tips For Cleaning
TIPS FOR CLEANING Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls: Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed... -
Page 14: Operation Of Control Panel
The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 1) Rotating axis The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate 2) Turntable The food sits on the turntable, its rotation during operation helps to cook food evenly - Place the rotating ring first - Fit the turntable onto the rotating axis and make sure that it is... -
Page 15: Before Cooking
1. BEFORE COOKING The display lights up when plugged in power supply, then enter the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are five firepower levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Microw.” button continuously to select the desired microwave power. - Page 16 cooking time, press “START/+30s” button to start work. An buzzing sound to notify completion of the operation. (Applicable quick HIGH 100% power output thorough cooking) (Applicable medium M.High 80% power output express cooking) 50% power output (Applicable for steaming food) M.Low 30% power output (Applicable for defrosting food)
- Page 17 this button to select defrost by weight or by time, and the display screen will corresponding display "dEF1" or "dEF2". Turn the knob to select food weight or defrost time. The weight range of dEF1 is from 4oz to 50oz, and the optional time range of dEF2 is from 0:10 to 60:00.
-
Page 18: Auto Cooking
than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks in hours. The hour time can be set by turning the knob. After setting the hour, press the "START/+30s" button for a short time to switch to the setting minute mode. - Page 19 Meat The optional weights are 7oz, 14oz and 21oz. The optional weights are 3.5oz, 7oz, 10.5oz, 14oz Bread and 17.5oz. a. The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
-
Page 20: Child Lock Function
In standby mode, after the food is put in and the door is closed, press the "START/+30s" button to quickly start the microwave. The default working time is 30 seconds. In the process of working, press the "START/+30s" button once for 30 seconds. An buzzing sound to notify completion of the operation. -
Page 21: Cooking Tips
Never use the ceramics Heat-resistant ceramic which are decorated with metal rim or glazed Cannot be used for long time microwave cooking. Heat-resistant plastic High temperature resistance above 248 ℉. Heat-resistant glass Grill rack It should not be used when cooking meat or chops as Plastic film the over-temperature may... -
Page 22: Maintenance
Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking. Allow standing time After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner. -
Page 23: Microwave Radiation
SERVICING Please check the following before calling for services. 1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. - Page 24 The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth. 1.
- Page 25 If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.
