Summary of Contents for DonLim E25PGP06-A90

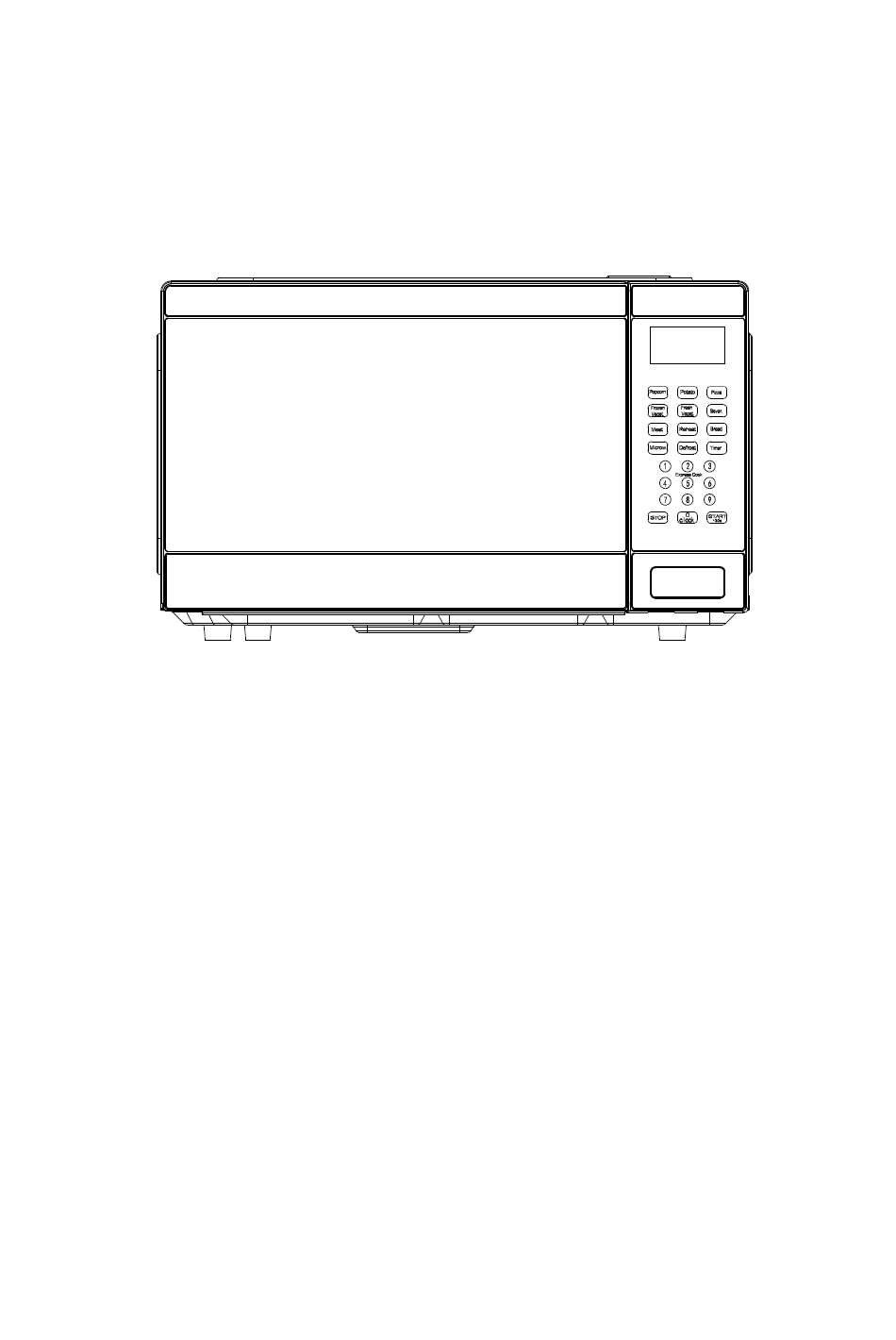

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL E25PGP06-A90 E25PGP02-A90 E25PGP04-A90...
-
Page 2: Important Safety Instructions Read Carefully And Keep For Future Reference
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Household use only SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS …………。 。 ……………… ……… When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: Read all instructions before using the appliance. - Page 3 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
- Page 4 overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT VERY LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
- Page 5 b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven. c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.
- Page 6 be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 5. Never operate the oven further if the door or door seals is damaged or the oven is malfunctioned or supply cord is damaged.
- Page 7 14. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven. 15. This appliance is not intended for using by young children or infirm persons without supervision. 16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
- Page 8 27. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 28. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
-
Page 9: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
37. The appliances are not intended to be operated by means of an external timer or separate remote -control system. 38. The temperature of accessible surfaces may be high when the appliance is operating. CAUTION: HOT SURFACE 39. This device complies with Part 18 of the FCC Rules. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open... -
Page 10: Grounding Instructions
serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse. (c) Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and... - Page 11 marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance, or 2) Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.
-
Page 12: Microwave Oven Care
even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times. -
Page 13: Tips For Cleaning
power. c) Put some orange peel into oven, and then heat them with high power for 1 minute. TIPS FOR CLEANING Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth... - Page 14 1) Door lock Microwave oven door must be properly closed in order for it to operate. 2) Viewing window Allow user to see the cooking status 3) Rotating ring The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 1) Rotating axis The glass turntable sits on the axis;...
-
Page 15: Operation Of Control Panel
geared in properly 3) Control panel See below in details (the control panel is subject to change without prior notice) 4) Waveguide cover It is inside the air fryer oven, next to the wall of control panel. Never remove the waveguide cover. .OPERATION OF CONTROL PANEL …。... -
Page 16: Before Cooking
1. BEFORE COOKING The display lights up when plugged in power supply, then enter the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are five firepower levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Microw.” button continuously to select the desired microwave power. - Page 17 buzzing sound to notify completion of the operation. (Applicable quick HIGH 100% power output thorough cooking) (Applicable medium M.High 80% power output express cooking) 50% power output (Applicable for steaming food) M.Low 30% power output (Applicable for defrosting food) 10% power output (Applicable for keeping warm) a.
- Page 18 screen will corresponding display "dEF1" or "dEF2". Turn the knob to select food weight or defrost time. The weight range of dEF1 is from 4oz to 50oz, and the optional time range of dEF2 is from 0:10 to 60:00. After selecting the defrost weight or time, press the “START/+30s”...
-
Page 19: Auto Cooking
time, the display screen blinks in hours. The hour time can be set by turning the knob. After setting the hour, press the "START/+30s" button for a short time to switch to the setting minute mode. The minutes can be set by turning the knob. After setting minutes, press the "START/+30s"... - Page 20 Meat The optional weights are 7oz, 14oz and 21oz. The optional weights are 3.5oz, 7oz, 10.5oz, 14oz Bread and 17.5oz. a. The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
-
Page 21: Child Lock Function
In standby mode, after the food is put in and the door is closed, press the "START/+30s" button to quickly start the microwave. The default working time is 30 seconds. In the process of working, press the "START/+30s" button once for 30 seconds. An buzzing sound to notify completion of the operation. -
Page 22: Cooking Tips
Never use the ceramics Heat-resistant ceramic which are decorated with metal rim or glazed Cannot be used for long time microwave cooking. Heat-resistant plastic High temperature resistance above 248 ℉. Heat-resistant glass Grill rack It should not be used when cooking meat or chops as Plastic film the over-temperature may... -
Page 23: Maintenance
Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking. Allow standing time After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner. -
Page 24: Microwave Radiation
SERVICING Please check the following before calling for services. 1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. - Page 25 The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth. 1.
- Page 26 If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.
