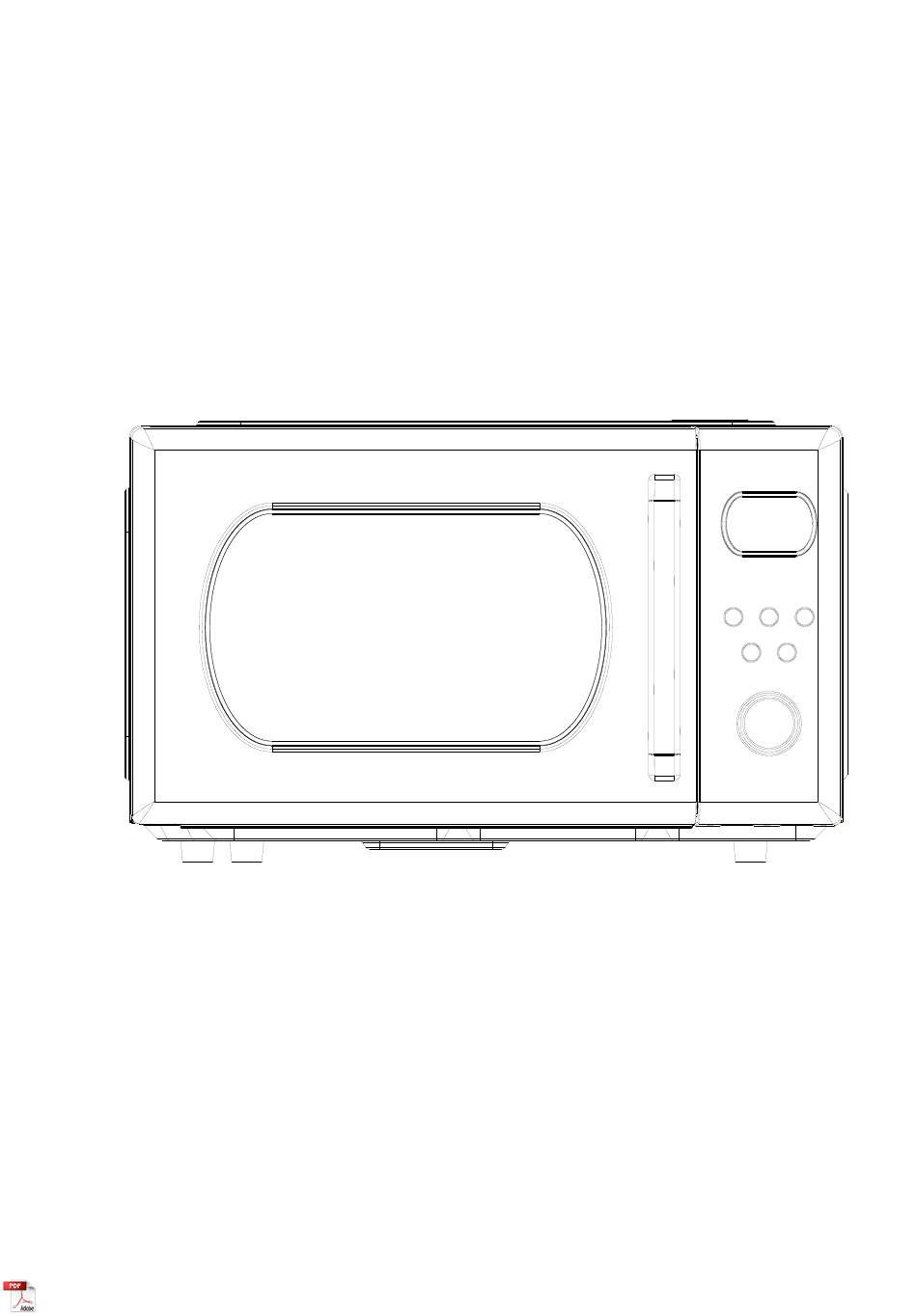

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL E25UXP17-A90 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
Household use only SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS …………。 。 ……………… ……… When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. - Page 3 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water –...
- Page 4 SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. 18. Notice for extension cord: a. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
- Page 5 of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire. e.
- Page 6 damaged or the oven is malfunctioned or supply cord is damaged. Return the appliance to the nearest authorised service center for repair and maintenance. Never try to adjust or repair the oven yourself. 6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
- Page 7 15. This appliance is not intended for using by young children or infirm persons without supervision. 16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 17.
- Page 8 handling the container. 28. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 29. Eggs in their shell and whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
-
Page 9: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
38. The temperature of accessible surfaces may be high when the appliance is operating. CAUTION: HOT SURFACE 39. This device complies with Part 18 of the FCC Rules. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. -
Page 10: Grounding Instructions
wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse. (c) Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connection. - Page 11 short, have a qualified electrician or serviceman install an outlet near the appliance. .INSTALLATION… …………………………………………………..…… … .… 1. Take out all the packing. if there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer’s service center.
-
Page 12: Microwave Oven Care
and operate for several times. .CLEANING …………………… …………… MICROWAVE OVEN CARE The oven should be cleaned regularly and any food deposits removed. 1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy 2. -
Page 13: Tips For Cleaning
TIPS FOR CLEANING Exterior: Wipe the enclosure with a dampened soft cloth Door: Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter Wipe the control panel with a slightly dampened soft cloth Interior walls: Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed... - Page 14 2) Viewing window Allow user to see the cooking status 3) Rotating ring The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 1) Rotating axis The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate 2) Turntable The food sits on the turntable, its rotation during operation helps...
-
Page 15: Operation Of Control Panel
.OPERATION OF CONTROL PANEL …。 。 。 。 。 。 。 。 。 。 1. BEFORE COOKING... -
Page 16: Microwave Function
The display lights up when plugged in power supply, then enter the standby state and display shows 1:00. 2. MICROWAVE FUNCTION There are five firepower levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Microw.” button continuously to select the desired microwave power. - Page 17 f. If you intend to remove the food before the preset time, you must press Stop/Lock button once to clear the preset procedure to avoid unintended operation of next time use. 3. DEFROST/CLOCK 3.1 DEFROST There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time.
-
Page 18: Auto Cooking
considered completed. d. Microwave penetrates around 4cm into most food. e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. 3.2 CLOCK (12 hour) In standby mode, press “DEFROST/CLOCK” button for more than 3 seconds to enter the clock setting interface. - Page 19 Pizza The optional weights are 7oz and 14oz. Frozen The optional weights are 7oz, 14oz and 21oz. Vegetable Fresh The optional weights are 7oz, 14oz and 21oz. Vegetable The optional weights are 1 cup, 2 cups or 3 cups, Beverage each one about 250ml.
-
Page 20: Child Lock Function
button to start microwave oven immediately. In working state, can press “START/+30s” button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time. In pause state, can press “START/+30s” button to continue the microwave oven before cooking mode. -
Page 21: Utensils Guideline
.UTENSILS GUIDELINE 。………………………….. …… Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use: Material of container Microwave Notes... - Page 22 possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking.
-
Page 23: Maintenance & Servicing
Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded. .MAINTENANCE …………。 。 ………………………………………………… SERVICING Please check the following before calling for services. - Page 24 It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating The high voltage capacitor remains charge after disconnection;...
- Page 25 has been short circuit and you need replace it at the nearest repaired department. 2. If LED displays Err1 during working, it indicates that sensor has been open circuit and you need replace it at the nearest repaired department. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;...
