Technical data

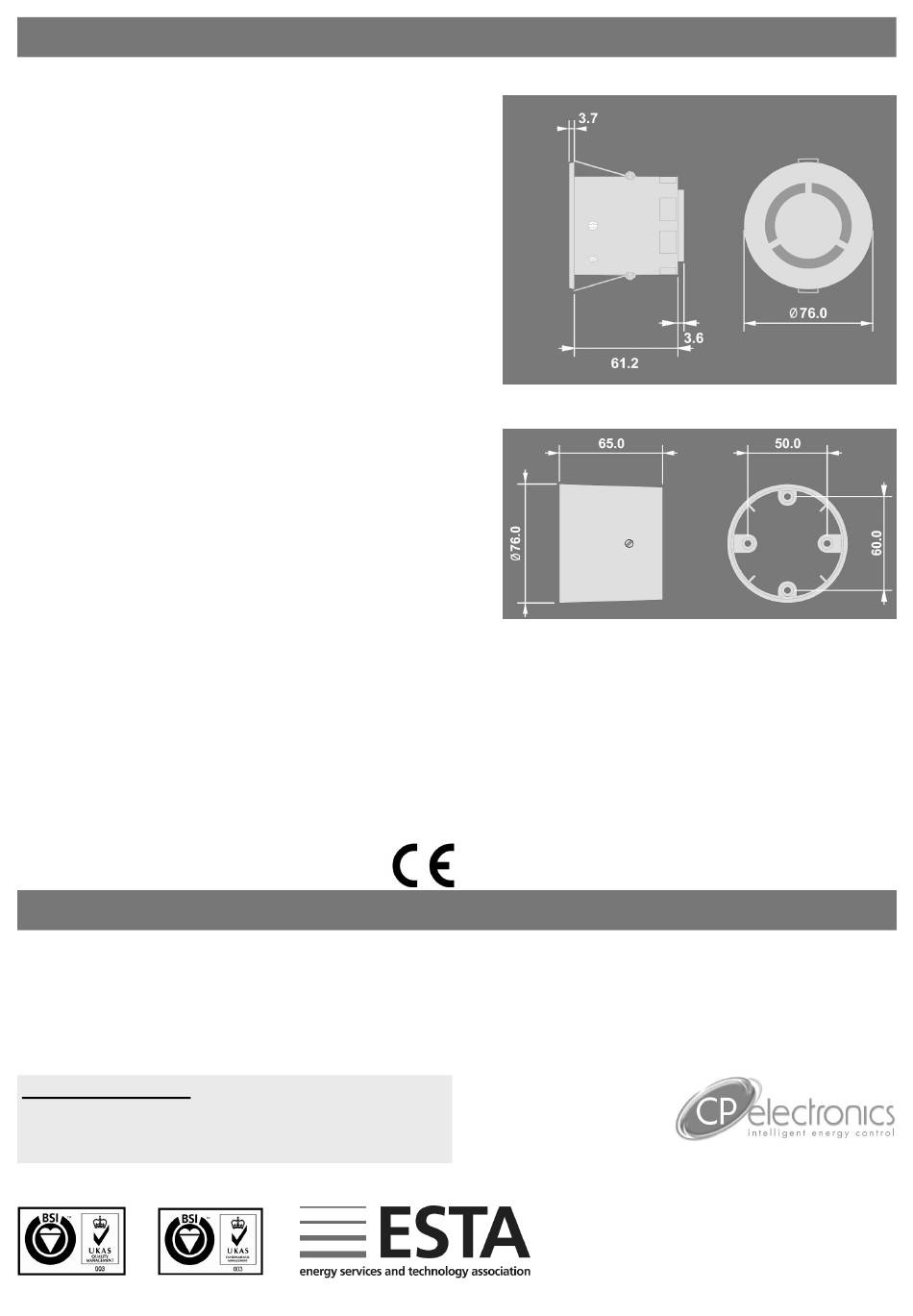

Dimensions
Weight
Supply Voltage
Maximum Load
Power consumption
Note
Terminal Capacity
Temperature
Humidity
Material (casing)
Type
IP rating
Microwave frequency
Safety
Compliance

Part numbers

Part number
Detector MWS6-PRM-VFC-LV
MWS6-PRM-VFC-LV-NC Ceiling mounted Microwave pres/abs detector + volt free contact 12-24V AC/DC,
Accessories DBB
UHS5
UNLCDHS
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE Wiring
Regulations and any applicable Building Regulations.
FM 45789
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
8
See diagrams opposite
0.15kg
Min 11.5VDC max 36VDC, min
10VAC max 26.5VAC
Normally open contact
10 Amp resistive and incandescent
lighting
6 Amp fluorescent lighting and resistive
3 Amp compact fluorescent lighting
3 Amp low energy lighting
3 Amp low voltage lighting (switch
primary of transformer)
Fluorescent lighting (max 6 fittings
recommended)
For fluorescent lighting total power factor
correction capacitance must not exceed
40μF.
3 Amp fans and ventilation equipment
Switch SON lighting loads via a
contactor
Minimum load 100mA
Normally closed contact
2 Amp maximum
Minimum load 100mA
On 898mW, Off 562mW
If the output contact is used to
switch mains voltage then the
SELV rating of any power supply
will be compromised.
2
2.5mm
-10ºC to 35ºC
5 to 95% non-condensing
Flame retardant ABS and PC/ABS
Class 2
IP40
5.8 GHz
The microwave radiation emitted by these
units is extremely low power and complies
with ANSI standard "IEEEC95.1-1999
Standard for Safety Levels with Respect to
Human Exposure to Radio Frequency
Electromagnetic Fields 3kHz 300GHz."
EMC-2004/108/EC
LVD-2006/95/EC
Description
Ceiling mounted Microwave pres/abs detector + volt free contact 12-24V AC/DC
normally closed fail safe operation
Surface mounting box
Programming IR handset
Universal LCD IR handset
EMS 534520
MWS6-PRM-VFC-LV
DBB
