EBDSPIR-PRM-L3
Ceiling PIR presence detector with 3m pre-wired lead
Front features
Mounting Bezel
Product Guide
The EBDSPIR-PRM-L3 PIR (passive infrared) presence
detector provides automatic control of lighting loads.
The output channel comprises a mains voltage relay
capable of simple on/off switching.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
PIR Sensor
Detects movement within the unit‟s detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
PIR Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Overview
Features
when movement is detected
Advertisement
Table of Contents
Related Manuals for C.P. Electronics EBDSPIR-PRM-L3
Summary of Contents for C.P. Electronics EBDSPIR-PRM-L3

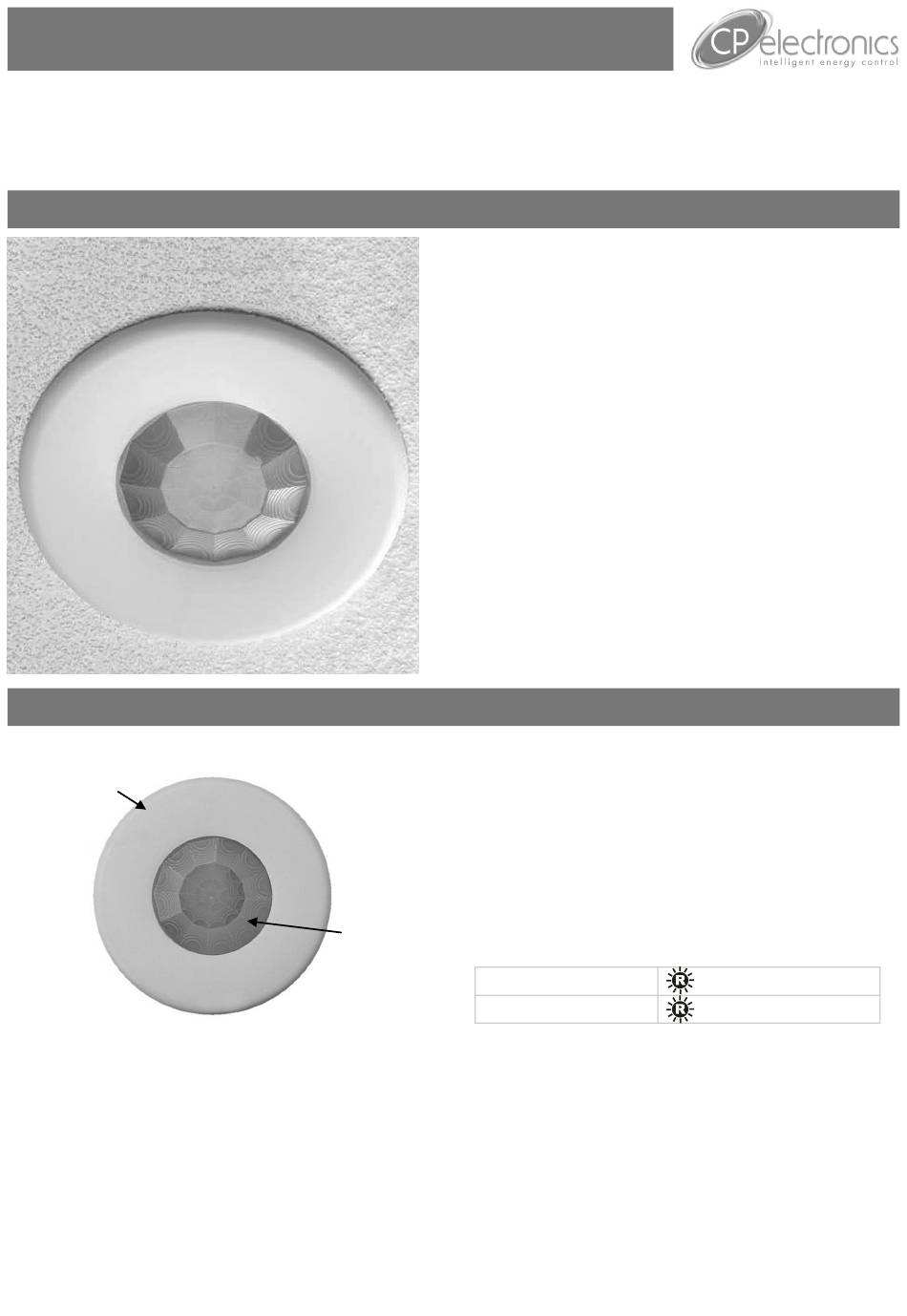

- Page 1 Product Guide EBDSPIR-PRM-L3 Ceiling PIR presence detector with 3m pre-wired lead Overview The EBDSPIR-PRM-L3 PIR (passive infrared) presence detector provides automatic control of lighting loads. The output channel comprises a mains voltage relay capable of simple on/off switching. Functioning as a presence detector, the unit can turn lights on when a room is occupied and off when the room is empty.
- Page 2 Detection diagram Area of high sensitivity Area of lower sensitivity...
- Page 3 Installation Choosing a Suitable Location The EBDSPIR-PRM is designed to be ceiling mounted and must satisfy the following criteria: Avoid positioning the unit where direct sunlight may enter the sensor element. Do not site the sensor within 1m of any lighting, forced air heating or ventilation. Do not fix the sensor to an unstable or vibrating surface.
- Page 4 Installation The EBDSPIR-PRM-L3 is designed to be mounted using either: Flush fixing, or Surface fixing, using the optional Surface Mounting Box (part no. DBB). Both methods are illustrated below. Flush Fixing Hole Ø64mm Warning - be careful bending springs when mounting unit.
- Page 5 Basic programming The functionality of the EBDSPIR-PRM-L3 is controlled by a number of parameters which can be changed or programmed by any of the following devices: UHS5 Infrared Handset. See below for programmable functions. UNLCDHS Infrared Handset (with LCD). See user guide for full programming details.
- Page 6 Advanced programming UHS5 UNLCDHS Parameter Name Default Value Range / Options Description Detector Parameters Walk Test LED On or Off When set to On this causes a red LED to flash on the sensor when it detects movement. Use this feature to check for adequate sensitivity levels. Once the detector is turned on, this value sets how long the lights will stay on once ...
- Page 7 This page intentionally left blank...
- Page 8 Universal LCD IR handset IMPORTANT NOTICE! This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations. C.P. Electronics Ltd Brent Crescent London NW10 7XR United Kingdom...
