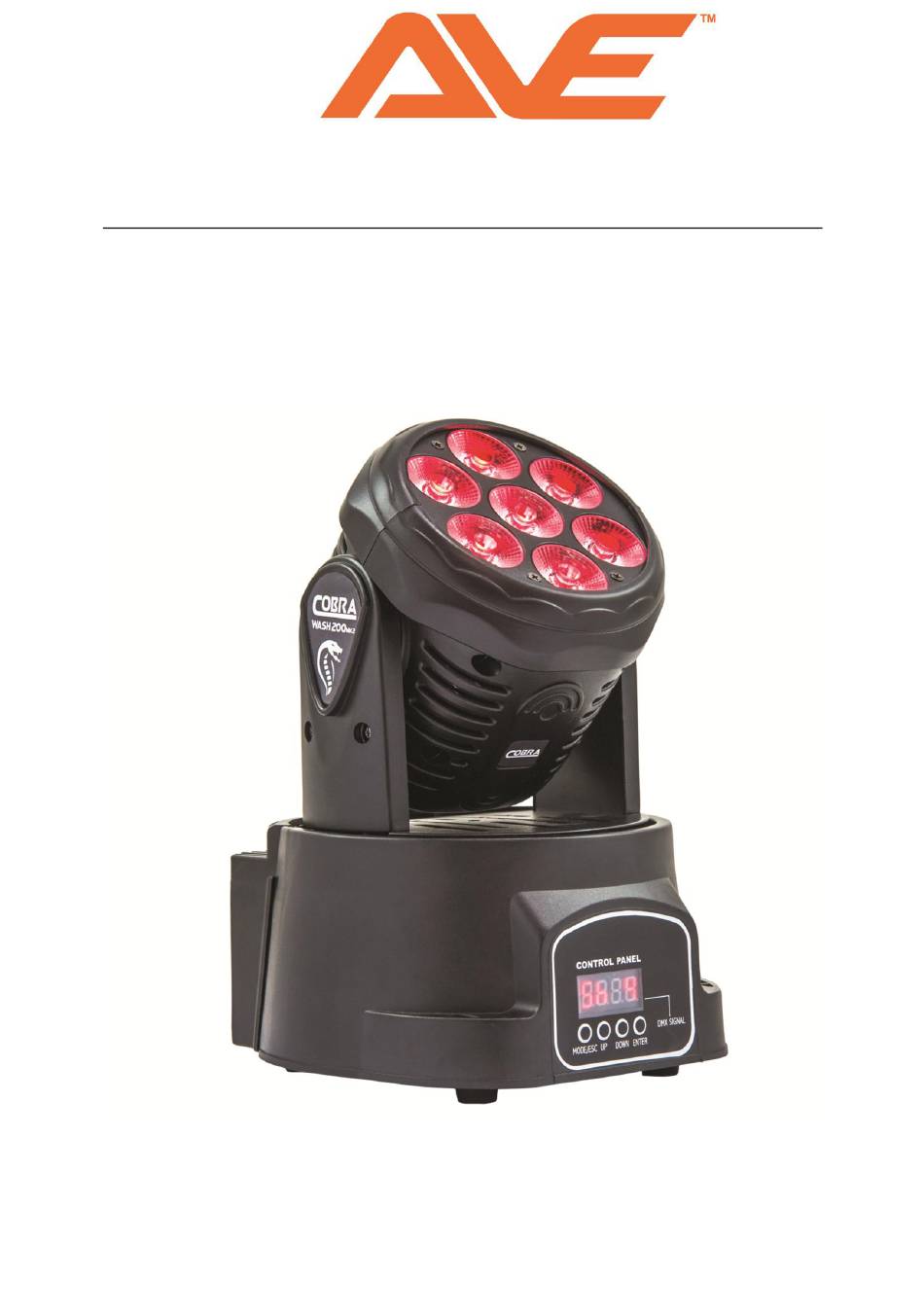

- Page 1 COBRA WASH 200 MK2 User Manual...
- Page 2 T able of Contents Safety ..................2 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Mounting ..................4 Description ................5 ................Features Setup ..................6 ..............Power Linking ................Operation ................Menu Map ..............DMX Channel Specifications................8...
- Page 3 Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE.
- Page 4 Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C.
- Page 5 Description The AVE Cobra Wash 200mk2 is a compact and high-output LED moving head wash fixture that provides a vivid colour wash for your dance floor or stage area. Fitted with 7x 10watt LED diodes, each with Hex Colour (RGBAW+UV) Technology allowing you to mix any colour you imagine. The moving yoke has a wide pan and tilt range with smooth movement creating an amazing effect.
- Page 6 Setup To set up your AVE Cobra Wash 200mk2 follow the below steps; 1. Mount the item on your lighting stand or on the floor 2. Connect the AC power cord from a grounded mains 240v power source 3. Power the fixture/s on from the mains socket 4.
- Page 7 Menu Map Main Level Program Level Description Addr 1 – 512 DMX Address Value Chnd 9 Channel DMX Mode 15Ch 15 Channel DMX Mode ShNd Sh 1 Show 1 Sh 2 Show 2 Sh 3 Show 3 Sh 4 Show 4 SLNd NASt Master...
- Page 8 Specifications Light Source: 7 x 10W Hex-Colour LED Diodes Diode Colour: Red, Green, Blue, Amber, White, Ultra Violet Pan Range: 540° Tilt Range: 270° Strobe Rate: 0 – 10Hz DMX Channels: 9CH / 15CH DMX Connectors: 3-Pin XLR Power Consumption: 90W Power Supply: 240V AC / 50Hz Power Connectors: IEC Mains Dimensions: 240 x 165 x 175 mm...
