LD MAUI i1 WMBT Quick Start Manual

MAUI i1 WMBT (W)
®
TILT-AND-SWIVEL WALL MOUNT FOR MAUI® i1, BLACK AND WHITE
DESCRIPTION
This heavy duty wall mount for Maui® i1 is made of powder-coated steel and provides
horizontal plus vertical adjustment for precision aiming. Side to side swivel is 160° while
down tilt is continuously variable to a maximum of 40°. The heavy duty 5 mm wall plate
features a safety rope eyelet in accordance with BGV C1.
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Only use the accessories in the manner intended.
DANGER: KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE
SWALLOWED AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT
OUT OF REACH OF CHILDREN!
PRODUCT INFORMATION
This item is a product-specific accessory intended exclusively for use with the LD Systems
MAUIi1 installation speaker. These installation instructions do not replace the operating
instructions for the associated product.
Always read the relevant operating instructions first.
These accessories have no influence on the intended use of the associated product.
Observe the safety instructions from the operating instructions of the associated product!
The technical data stated in the operating instructions may change in connection with this
accessory.
MANUFACTURER'S DECLARATIONS
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach
E-Mail Info@adamhall.com / +49 (0)6081 / 9419-0.
Our current warranty conditions and limitation of liability can be found at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf
In case of service, please contact your sales partner.
DISPOSAL
Packing:
1. Packaging can be fed into the recycling system via the usual disposal channels.
2. Please separate the packaging according to the disposal laws and recycling
regulations in your country.
Product:
Dispose of the product in accordance with the disposal regulations in force in your country.
CE CONFORMITY
Adam Hall GmbH hereby confirm that this product meets the following guidelines
(where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 20#17 /
Low-voltage directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS (2011/65/EU) /
The full declaration of conformity can be found at www.adamhall.com.
Misprints and errors, as well as technical or other changes are reserved!
1
B
A
2
LD Systems
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany | Phone: +49 6081 9419-0 | adamhall.com
FEATURES
•
160° swivel speaker wall mount
•
0 to 40° down tilt, continuously variable
•
Easily readable tilt angle scale
•
5 mm wall plate with safety rope eyelet
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material.
Please check that the delivery is complete and intact and inform your sales partner
immediately after purchase if the delivery is incomplete or damaged.
Included in the packaging content are:
•
1x tilt and swivel wall bracket
•
4x fastening screw M5 x 12 plus spring washers and flat washers for mounting the wall
bracket on the loudspeaker
•
Assembly instructions

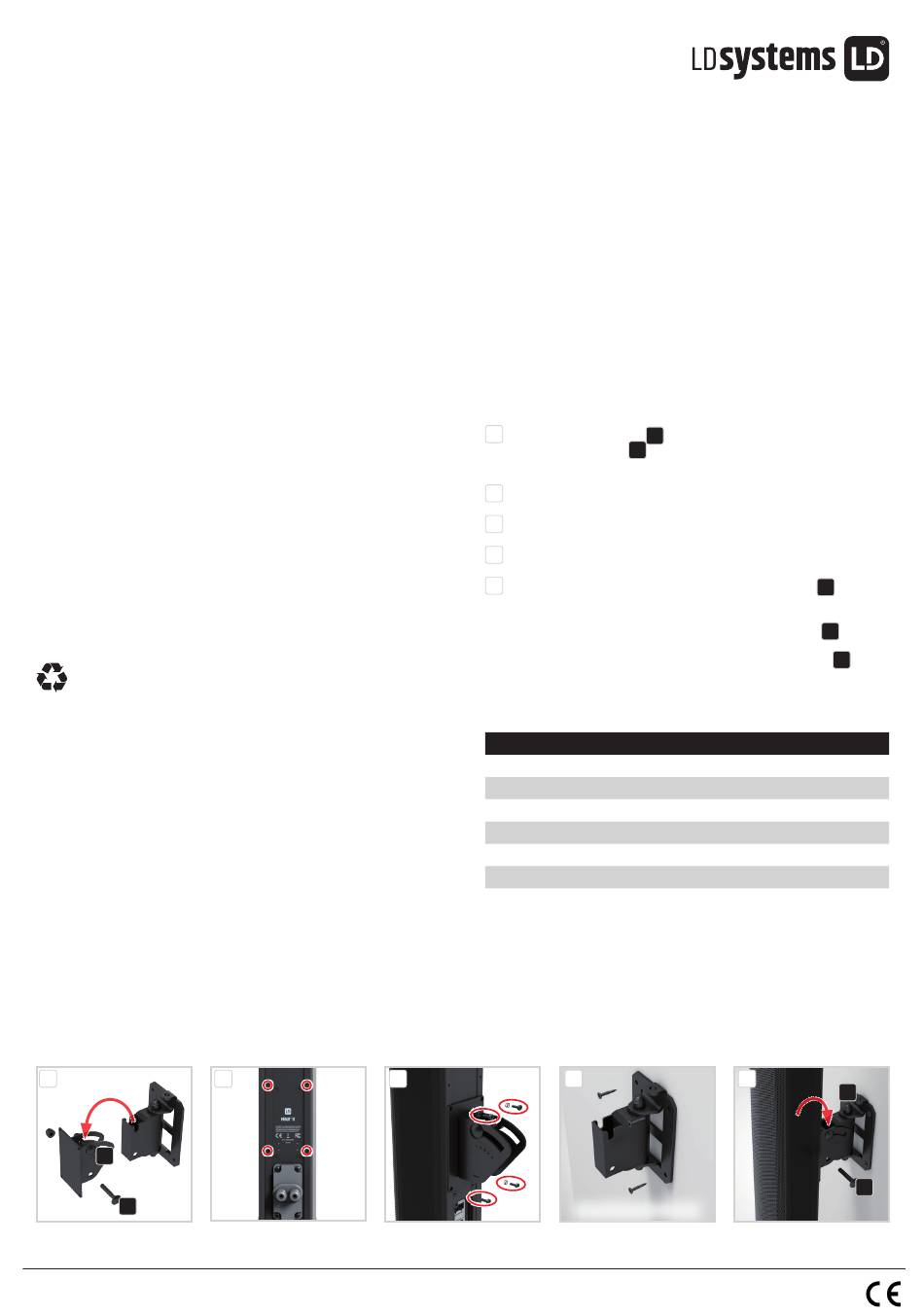

ASSEMBLY
1 Loosen the nut from the screw
Loosen the nut from screw
the bracket with the adapter plate for the loudspeaker from the part of the bracket
with the wall mounting plate.
2 To attach the adapter plate, loosen and remove the four M5 enclosure screws marked
in the picture from the speaker.
3 Screw the adapter plate to the speaker housing using the M5 fastening screws, spring
washers and washers supplied.
4 Screw the part of the bracket with the wall mounting plate vertically, with the secur-
ing eyelet facing upwards, to a load-bearing wall at a suitable location (4 screws).
5 Now place the speaker on the bracket on the wall, reinsert the screw
designated place and secure it using the nut removed earlier.
You can tilt the speaker vertically by slightly loosening the nut of the screw
(remove the plastic cap beforehand), set the desired angle and tighten the nut again.
You can adjust the loudspeaker horizontally by loosening the nut of the screw
slightly (remove the plastic cap first), adjusting the direction of radiation as desired
and tightening the nut again.
SPECIFICATIONS
Model name:
Product type
Material:
Surface:
Colour:
Max. load:
Additional information: Incl. universal mounting plate
Weight:
3
® is a registered brand of the Adam Hall Group
A and remove the screw from the Bracket.
B
only slightly (approx. 1 turn). Now remove the part of
LDMAUII1WMBT(W)
Speaker wall mount
Steel
Powder coated
Black (LDMAUII1WMBT), white (LDMAUII1WMBTW)
20 kg
1.35 kg
4 5
Screws for the wall not included
A
in the
B
C
C
A
