USER´S MANUAL LDEBG3SCP
Super Clamp Truss Mount for Loudspeaker
SAFTY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Be attentive when mounting the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/
pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach
/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
1
2
3
For further instructions, please check out the detailed online manual in the download area of this product at:: www.ld-systems.com

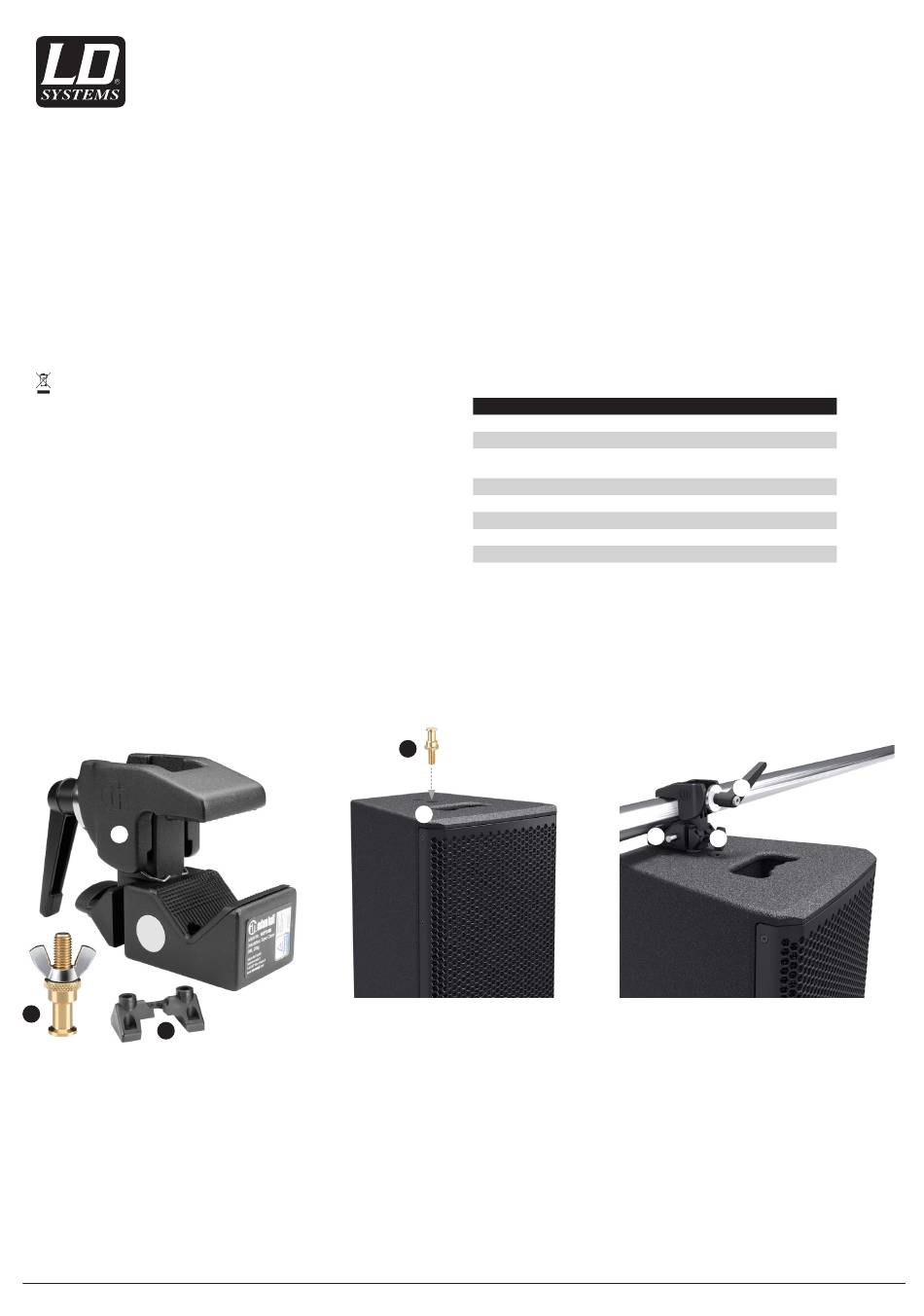

LDEBG3SCP (SUITABLE FOR LDEB82G3, LDEB82AG3, LDEB102G3, LDEB102AG3)
1 Traverse clamp with adjustable T-screw and flange for mounting pin (only for mounting on horizontal traverses).
2 Mounting pin with M10 thread and wing nut.
3 Adapter for attaching the clamp to square-section tubes.
4 Remove the M10 screw on the top of the speaker.
5 Remove the M10 wing nut from the mounting pin (No. 2) and screw it fully into the M10 thread on the top
of the speaker.
6 Attach the traverse clamp to a traverse with the adjustable T-screw in a suitable position and ensure a firm grip.
7 Loosen the locking screw so far that the flange on the underside of the clamp can accept the mounting pin
(do not remove the bolt).
8 Push the spring-loaded locking pins on the side of the clamp into the housing so that the flange on the
underside of the clamp can accept the mounting pin and push the pin all the way into the flange. Release the
pressure from the locking pin and keep hold of the speaker until you are certain that the mounting pin is fully
engaged. Rotate the speaker to achieve the desired dispersion and secure the connection by tightening the
locking screw No. 7.
SPECIFICATIONS
Model name:
Type:
Part:
Suitable for:
Material:
Surface:
Colour:
Max. Load
Dimensions (W x H x D):
Weight:
5
4
Adam Hall GmbH · Daimlerstr. 9 · 61267 Neu-Anspach · Germany
Tel.: (+49) 60 81 / 94 19 0 · Fax: (+49) 60 81 / 94 19 1000 · eMail: mail@adamhall.com
LDEBG3SCP
PA Loudspeaker Accessories
Truss Mount Bracket
LDEB82G3, LDEB82AG3
LDEB102G3, LDEB102AG3
Aluminium/Brass
Powder Coated/Uncoated
Black/Brass
20 kg
57mm x 136mm x 118mm
0.564 kg
6
8
7
