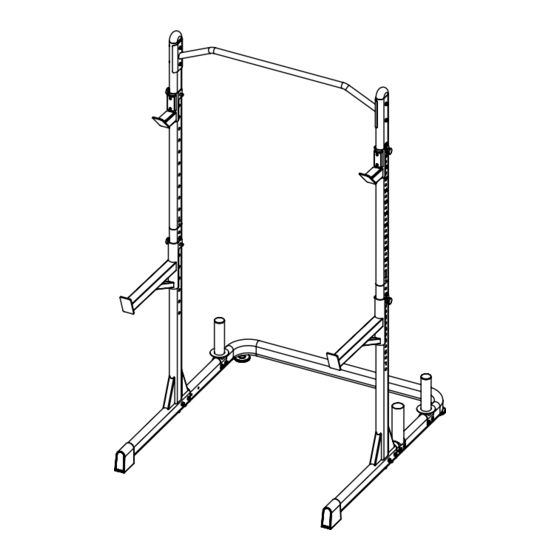

GRIND FITNESS GR131 User Manual

Power rack exerciser
Hide thumbs

Advertisement

Quick Links

Download this manual
GRIND FITNESS
POWERED BY PRX PERFORMANCE
We are an obsessed group of lifters who believe
that access to out-of-this-world equipment and
extraordinarily effective programming shouldn't
be limited to the filthy rich.
Our equipment only works if you GRIND.
Download the app and get to work.
POWER RACK EXERCISER
USER'S MANUAL
A2000 — MODEL NO. GR131
!
WARNING
Read the assembly, installation, care, maintenance, and use instructions in this manual
prior to assembling and using this equipment. Save this manual for future reference.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR131 and is the answer not in the manual?

Questions and answers

Related Manuals for GRIND FITNESS GR131

Summary of Contents for GRIND FITNESS GR131

  • Page 1 Download the app and get to work. POWER RACK EXERCISER USER’S MANUAL A2000 — MODEL NO. GR131 WARNING Read the assembly, installation, care, maintenance, and use instructions in this manual prior to assembling and using this equipment. Save this manual for future reference.
  • Page 2 GET YOUR WORKOUTS! SCAN ME How you’ll feel after 30 days How you feel now https://thegrindfitness.com/a2000 FREE on the GRIND App* *It only works if you GRIND!

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS To reduce the risk of serious injury, read all important precaustions and instructions in this manual and all warnings on the rack before using the weight rack. GRIND assumes no responsibility for personal injury or property damage sustained by or through the use of this product. 1.

  • Page 4: Part List

    PART LIST Key No. Qty. Description Key No. Qty. Description U Base Right Lower Upright Plug Left Lower Upright M8X55mm Bolt Right Upper Upright M8X20mm Bolt Left Upper Upright M8 Nut Pull-up Bar M8 Washer Weight Storage Tube M8 Spring Washer Barbell Storage Tube Inner Cap Weight Rest...

  • Page 5: Exploded Drawing

    EXPLODED DRAWING...
  • Page 6 ASSEMBLY Two adults assembly required. STEP 1 Put the Weight Storage Tubes (7) to the U Base (1) as shown, secure with M8X58mm Bolts (21) and M8 Nuts (17). Do not fully tighten the Bolts yet.
  • Page 7 STEP 2 Put the Barbell Storage Tubes (8) to the U Base (1) as shown, secure with M8X58mm Bolts (21) and M8 Nuts (17). Do not fully tighten the Bolts yet.
  • Page 8 ASSEMBLY STEP 3 Secure the Adjustment knob (11) to the bottom of Base as shown.
  • Page 9 STEP 4 Put the Right Lower Upright (2) and Left Lower Up- right (3) onto the Base, make sure the numbers are facing outside. Secure with M8X20mm Bolts (16), M8 Spring Washers (19), M8 Washers (18) as shown. Do not fully tighten the Bolts yet.
  • Page 10 ASSEMBLY STEP 5 Put the End Cap (12) onto Base as shown.
  • Page 11 STEP 6 Insert the Cap (13) into the Upper Uprights as shown. 11 11...
  • Page 12 ASSEMBLY STEP 7 Insert the Right Upper Upright (4) into the Right Lower Upright (2) as shown, secure with M8X20mm Bolts (16), M8 Spring Washers (19), M8 Washers (18) as shown. Repeat to attach the Left Upper Upright. Do not fully tighten the Bolts yet. Make sure the numbers are facing outside.
  • Page 13 STEP 8 Orient the Pull-up Bar (6) as shown, secure to the Upright with M8X55mm Bolts (15), M8 Washers (18), and M8 Nuts (17). Tighten all bolts! 13 13...
  • Page 14 ASSEMBLY STEP 9 Put the Weight Rest (9) onto desired adjustment hole in the Upright, secure with Plug (14) as shown. Make sure to put the Weight Rests at the same height.
  • Page 15 STEP 10 Put the Spotter (10) onto the desired adjustment hole in the Upright, secure with Plug (14) as shown. Make sure to put the Spotters at the same height. 15 15...

  • Page 16: Get To Work

    GET TO WORK STEP 11 Scan the QR Code to get your FREE 30-days of programming using the GRIND App. iPhone users can simply open their camera to scan the code. How you’ll feel after 30 days Android users may need to use a scanning app. How you feel now FREE on the GRIND App*...
  • Page 17 » Inspect equipment prior to use. DO NOT use if it appears damaged or inoperable » DO NOT attempt to fix broken equipment. Call GRIND Fitness for assistance 701-566-5204 » Use equipment only for the intended use. DO NOT modify the machine »...
  • Page 18 PRx Performance LLC, DBA GRIND Fitness warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for 30 days from the date of purchase. GRIND Fitness will repair or replace the product, at our sole option, in the event of such a defect within the warranty period.
