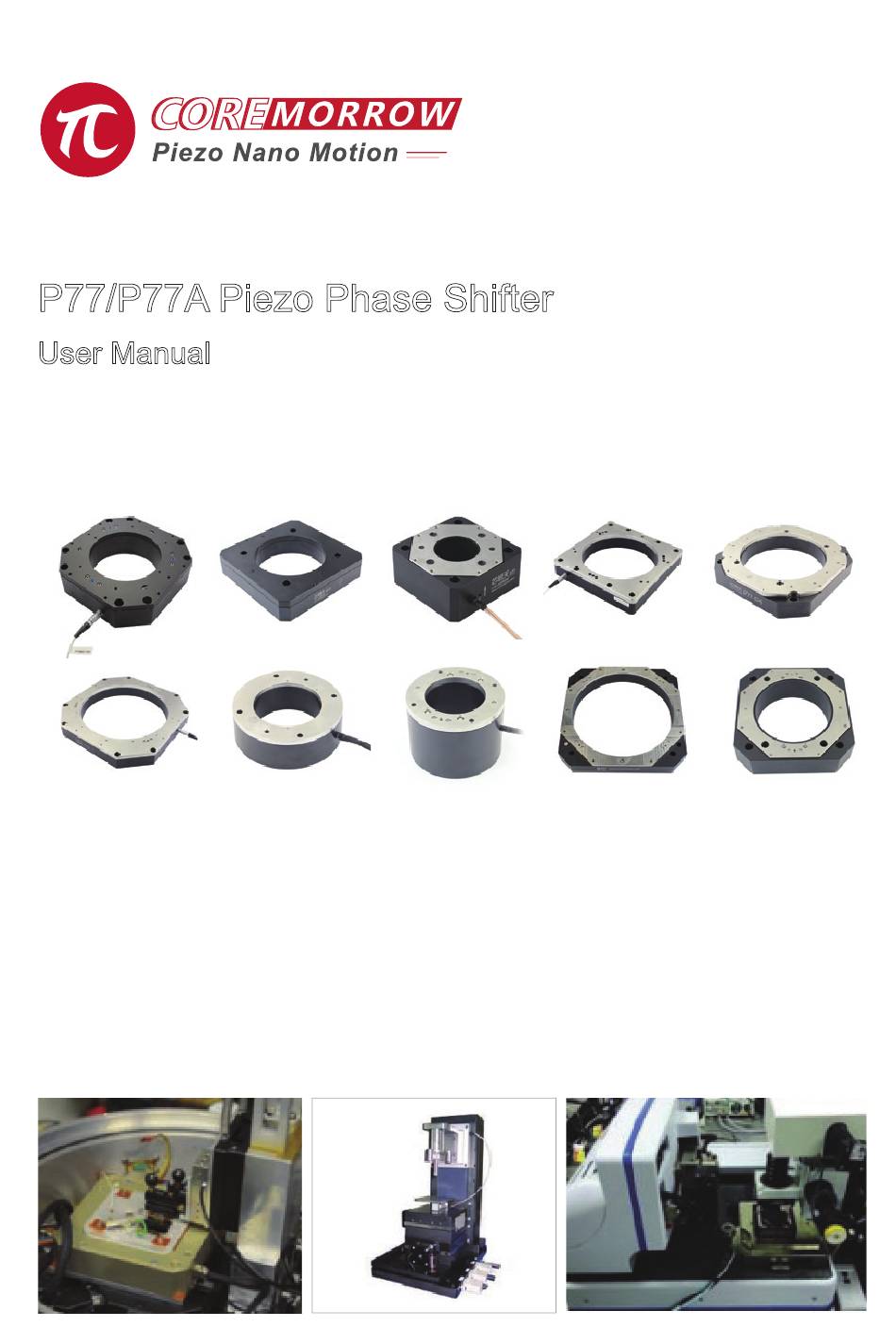

- Page 1 P77/P77A Piezo Phase Shifter User Manual Version: V1.0 This document describes the following products: ■ P77.S/K106 ■ P77.S/K106A ■ P77.S/K36 ■ P77.S/K160 ■ P77.S/K160A ■ P77.S/K210 ■ P77.S/K242 ■ P77.30S/K140 ■ P77.S/K310 ■ P77A...
- Page 2 DECLARATION This user manual is applicable to P77/P77A Piezo Phase Shifter, for your smooth and correct use of this product, please read this manual carefully before using it. Please follow the instructions in the installation and use process. Improper operation may cause injury to the operator and/or...
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
2. Safety Guide P77/P77A Piezo Phase Shifter is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezoelectric actuator, and... -
Page 6: Product Overview
P77/P77A Piezo Phase Shifter has a travel range of up to 50 μm in Z, and features fast response speed, no mechanical friction, high repeatable positioning accuracy, easy... -
Page 7: Product Features
P77/P77A is mainly used in biotechnology, interferometry, quality detection, optical detection, nanometer positioning, microscopy and imaging, image processing and other fields, with a good development prospect. 3.2 Product Features High resolution. Closed-loop strain gauge sensor, high positioning accuracy. -
Page 8: Operating Environment
Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. 5.1 Installation and Precautions Installation diagram of P77/P77A is as follows: Hole for mounting Motion surface... -
Page 9: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of P77/P77A, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. - Page 10 P77/P77A Piezo Phase Shifter User Manual For the protection of the product, we do not recommend that the load is too high. If a high load must be used, please appropriately low the position of the center of gravity of the load.
- Page 11 Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product. Short bolts will lead to insufficient compactness of the connection and easy looseness, which will damage the internal structure of the product during operation.
-
Page 12: Operating
150V). 5.After use, please carry out voltage reset operation. Please take light steps when P77/P77A in operation, do not knock the product, so as not to affect the use of the product or even damage the product. In order to achieve better motion precision of P77/P77A, it is recommended to use our company's supporting controller. -
Page 13: Transportation And Inspection
Do not remove the ground protection during operation. If it needs to be temporarily removed, please reconnect the ground protection before restart. The driving voltage shall not exceed the voltage range of P77/P77A. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting 6. -
Page 14: Maintenance And Treatment
P77/P77A Piezo Phase Shifter User Manual Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. -
Page 15: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Customer Service
P77/P77A Piezo Phase Shifter User Manual 8.Customer Service If you have questions about the products you are currently using, please let us know the following information: Product model and relevant number The controller model Software driver version Computer operating system that installs supporting software 9.Contact us...
