Stamina 15-1345A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

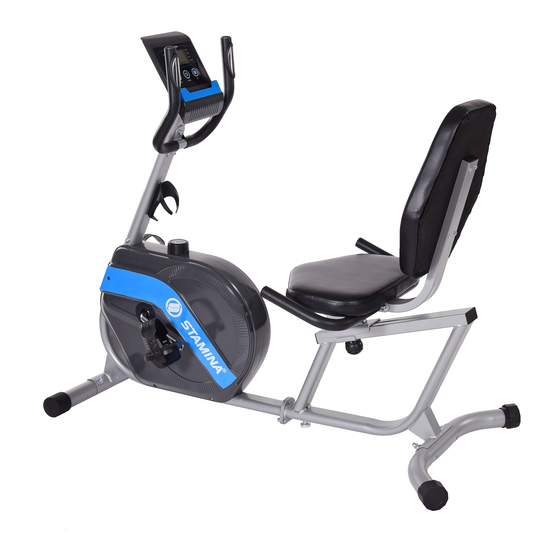

Owner's Manual
Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 300 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
Customer Care
1 (800) 375-7520
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 15-1345A
S/N: _____________
STAMINA PRODUCTS
MADE IN CHINA
© 2020 Stamina Products, Inc.
2020, 12

Advertisement

Table of Contents
loading

Related Manuals for Stamina 15-1345A

Summary of Contents for Stamina 15-1345A

  • Page 1 Weight on this product should not exceed 300 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N Alliance Ave, Springfield, MO 65803 Customer Care © 2020 Stamina Products, Inc. 1 (800) 375-7520 2020, 12 www.staminaproducts.com...
  • Page 2 Quickstart Guide Smart Audio Workouts for Your Bike Go to the App Store on your device or scan the QR Code for quick access. Download the app and get moving! Assembly video included in app. Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S.

  • Page 3: Table Of Contents

    20. The Stamina® Recumbent Exercise Bike 345 should not be used by persons weighing over 300 pounds. 21. The Stamina® Recumbent Exercise Bike 345 should be used by only one person at a time. 22. The Stamina® Recumbent Exercise Bike 345 is for consumer use only. It is not for use in public or semipublic facilities.
  • Page 4 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook. Be sure to contact us if you have any questions on your new product.

  • Page 5: Before You Begin

    Stamina® Recumbent Exercise Bike 345. many hours of quality exercise to make you feel Providing you with a quality product is Stamina's better, look better, and enjoy life to its fullest. top priority. However, sometimes there could be It's a proven fact that a regular exercise a missing or incorrectly sized part.

  • Page 6: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the Stamina® Recumbent Exercise Bike 345. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

  • Page 7: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the fasteners used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Attach the SEAT(37) to the SEAT FRAME(65) with ROUND HEAD BOLTS(M6x1x15mm)(48) and WASHERS(M6)(68). STEP 5 There is an “R” decal on the RIGHT HANDRAIL(5), and an “L” decal on the LEFT HANDRAIL(4). Refer to the detail view A. Note the correct position of the HANDRAILS(4, 5), the HANDRAILS(4, 5) should be assembled with a angle upward.
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 7 NOTE: The RIGHT PEDAL(34) has an R stamped on the end of the pedal shaft. The RIGHT PEDAL(34) has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(33) has an L stamped on the end of the pedal shaft. The LEFT PEDAL(33) has left hand threads and is tightened by turning counterclockwise.
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 9 Attach the HANDLEBAR(66) to the UPRIGHT(2) with BUTTON HEAD BOLTS(M8x1.25x15mm)(45), LOCK WASHERS(M8)(71), and WASHERS(M8)(59). STEP 10 Install two AAA batteries into the METER(11), the batteries are not included. See page 15 for detailed battery installation instructions. Plug the EXTENSION WIRE(8) into the connecting wires of the METER(11), and push the excess wires back into the UPRIGHT(2).

  • Page 12: Set Up Instructions

    SET UP INSTRUCTIONS Place the Stamina® Recumbent Exercise Bike 345 in the area where it will be used. It is recommended that the Stamina® Recumbent Exercise Bike 345 be placed on an equipment mat. The Stamina® Recumbent Exercise Bike 345 is approximately 57.7 inches long (max.) x 21.1 inches wide x 42.3 inches tall.

  • Page 13: Operational Instructions

    CAUTION: Do not attempt to adjust the seat while you are on the Stamina® Recumbent Exercise Bike 345. 2. Always tighten the LOCKING KNOB(74) after adjusting the seat to a new position. CAUTION: Do not use the HANDRAILS(4, 5) to raise or lower your full body weight.
  • Page 14 OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON: Move the pedals or press any button. POWER OFF: Automatically shuts off after 4 minutes of inactivity. FUNCTION BUTTONS : MODE : Press and release to select functions for display or to preset target values.

  • Page 15: Storage

    5. Do not dispose of batteries in fire. STORAGE 1. To store the Stamina® Recumbent Exercise Bike 345, simply keep it in a clean dry place. 2. Adjust the SEAT FRAME(65) to the shortest position. The Stamina® Recumbent Exercise Bike 345 is approximately 49.4 inches long x 21.1 inches wide x 42.3 inches tall.

  • Page 16: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 17: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 18: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...

  • Page 19: Parts List

    PARTS LIST PART# PART NAME Front Frame Upright Front Stabilizer Left Handrail Right Handrail Rear Stabilizer Idler Arm Extension Wire Sensor Wire Pulse Sensor Plate Meter Magnetic Unit Crank w/ Pulley Sensor Bracket V-Ribbed Belt (320-J5) Idler Wheel Bearing (6000zz) Bearing Housing Ball Bearing Bearing Nut...
  • Page 20 PARTS LIST PART# PART NAME Bolt, Round Head (M6 x 1.0 x 15mm) Carriage Bolt (M8 x 1.25 x 65mm) Acorn Nut (M8 x 1.25) Screw, Round Head (ST4.2 x 20mm) Flange Nut (M10 x 1.0) Screw, Washer Head (M5 x 0.8 x 12mm) C Ring (ø10mm) Carriage Bolt (M10 x 1.5 x 20mm) Washer (M10)

  • Page 21: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance Ave, Springfield, Missouri, USA, MO 65803, or email us at customer.care@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 22: Notes

    NOTES...

  • Page 23: Fax/Mail Ordering Form

    2040 N Alliance Ave, Springfield, MO 65803 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
