WisyCom BFLT1 Quick Start Manual page 2

FIBER TIPS BOX
• Clean your fiber connectors on both
ends
• Use single mode fiber only
• Be sure your fiber connectors are APC
• Typical fiber loss with Wisycom systems
is approx. 0.4 dB/Km

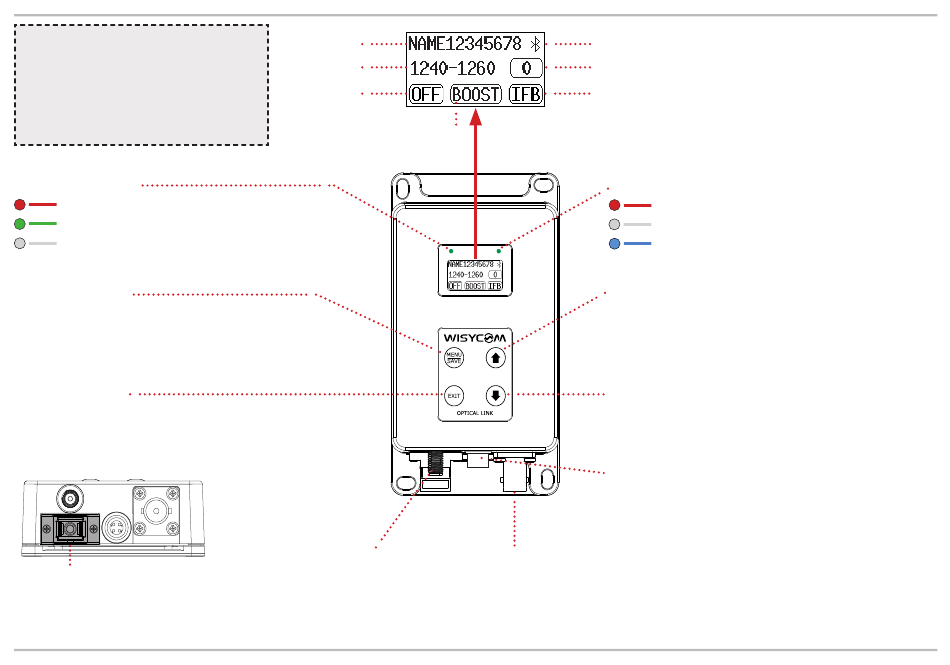

Link Status Led
Red: link alarm
(laser fault)
Green: laser on
Grey: laser off
Menu Button
Press this button to enter the main
menu and select menu options.
Press to SAVE.
Exit Button
Press this button to step back
while in the main menu.
TX TX
TX TX
BT BT RF IN RF IN
OPT OPT
9 ~ 18 Vdc 9 ~ 18 Vdc
OUT OUT
Optical Connector
SC/APC (others on request)
ST and FC connectors are
available for user upgrade.
BFL name
BT
RF filter
OPT
OUT
Link status
Antenna booster status
RX RX
RX RX
BT BT RF OUT RF OUT
OPT OPT
9 ~ 18 Vdc 9 ~ 18 Vdc
IN IN
Bluetooth Connector
SMA connector for BT
antennas to remotely
control via Wisycom BT
(iOS/Android app).
TX
Bluetooth enabled icon
TX RF IN
Gain level
9 ~ 18 Vdc
Mode
• ANT operating in reception (wireless microphone)
• IFB operating in transmission (IEM / IFB remoting)
Bluetooth Status and RF alarm Led
Up
Short Press to scroll up in the main menu
or to access the rotary quick menu.
Down
Short Press to scroll down in the main
menu or to access the rotary quick menu.
Power Connector
Hirose power connector 9-18 VDC
type HR10A-7R-4S (pin1: GND, pin4: VDC)
(consumption 3.5 W with booster & 2.5 W without).
RF Connector
BNC connector for RF input. If used with
active antennas enable the booster by BFL
settings menu Boost (12 VDC @ 150 mA max)
21G BFLx1 QUICK MANUAL
N connector is available for user upgrade.
RX
BT RX RF OUT
OPT
9 ~ 18 Vdc
IN
Red: RF alarm
(Rf overload/booster fault)
Grey: Bluetooth off
Blue: Bluetooth on
