WisyCom BFLR1 Quick Start Manual page 2

FIBER TIPS BOX
• Clean your fiber connectors on both ends
BT
• Use single mode fiber only OPT
OUT
• Be sure your fiber connectors are APC
• Typical fiber loss with Wisycom systems
is approx. 0.4 dB/Km
• Optical PWR working range 0.3mW-4mW

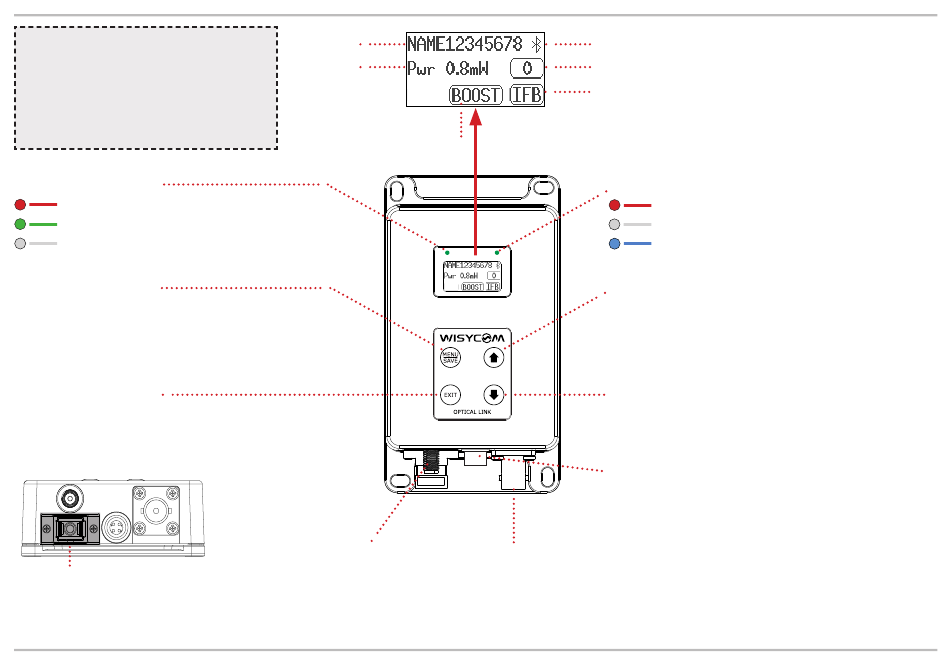

Link Status Led
Red: link alarm
(optical PWR out of range)
Green: laser on
Grey: laser off
Menu Button
Press this button to enter the main
menu and select menu options.
Press to SAVE.
Exit Button
Press this button to step back
while in the main menu.
TX RX
BT BT TX RX RF OUT RF IN
OPT OPT
9 ~ 18 Vdc 9 ~ 18 Vdc
OUT IN
Optical Connector
SC/APC (others on request)
ST and FC connectors are
available for user upgrade.
TX
BFL name
TX
RF IN
Received
9 ~ 18 Vdc
Optical Level
Antenna booster status
(IFB mode only)
RX
RX
BT RF OUT
OPT
9 ~ 18 Vdc
IN
Bluetooth Connector
SMA connector for BT
antennas to remotely
control via Wisycom BT
21G BFLx1 QUICK MANUAL
(iOS/Android app).
RX
BT RX RF OUT
OPT
9 ~ 18 Vdc
IN
RF Connector
BNC connector for RF output. If used with active
antennas (e.g. LBP) enable the booster by BFL
settings menu Boost (12 VDC @ 150mA max).
N connector is available for user upgrade.
Bluetooth enabled icon
Gain level
Mode
• ANT operating in reception (wireless microphone)
• IFB operating in transmission (IEM / IFB remoting)
Bluetooth Status and RF alarm Led
Red: RF alarm
(Antenna fault)
Grey: Bluetooth off
Blue: Bluetooth on
Up
Short Press to scroll up in the main menu
or to access the rotary quick menu.
Down
Short Press to scroll down in the main
menu or to access the rotary quick menu.
Power Connector
Hirose power connector 9-18 VDC
type HR10A-7R-4S (pin1: GND, pin4: VDC)
(consumption 2.5 W with booster & 1.5 W without).
