HighPoint RocketAIC 7540HW Quick Installation Manual
8x m.2 to pcie 4.0 x16 nvme drive
Hide thumbs
Also See for RocketAIC 7540HW:
- Installation manual (19 pages) ,
- Using manual (19 pages) ,
- Installation manual (19 pages)
Related Manuals for HighPoint RocketAIC 7540HW
Summary of Contents for HighPoint RocketAIC 7540HW
- Page 1 RocketAIC 7540HW 8x M.2 to PCIe 4.0 x16 NVMe Drive Quick Installation Guide V1.00...
-
Page 2: System Requirements

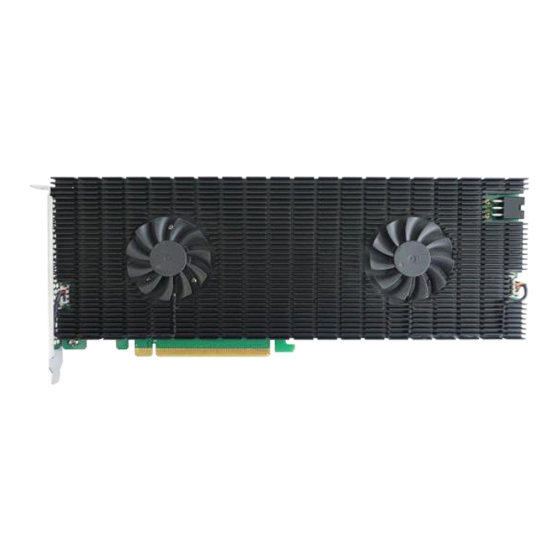

System Requirements Hardware • PC platform with a free physical PCIe x16 slot • Form factor: full height, full length • PCI Express: PCle 3.0 or later Operating System • Windows 11, 10 / Server 2022, 2019, 2016/ Microsoft Hyper-V •... - Page 3 Hardware Front View Full Height form factor 0000 Full-Length anodized aluminum heat sink Low-Noise Cooling Fan External power port PCIe 4.0 x16 Host Interface...
-
Page 4: Hardware Installation
Hardware Installation Please follow the steps below to install the RocketAIC 7540HW into a motherboard with a compatible PCle slot. Disconnect all power and powered devices from your system. Open the motherboard chassis cover. Insert the RocketAIC 7540HW into one of the system’s open PCIe 3.0/4.0/5.0 x16 slots. - Page 5 Once the RocketAIC 7540HW is fully seated affix the included screw to the bracket. Reassemble the chassis cover and reconnect the system to the power supply.
- Page 6 In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme-2/ssd7540 FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)
-
Page 7: Customer Support
Customer Support If you encounter any problems while utilizing RocketAIC NVMe drives, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
