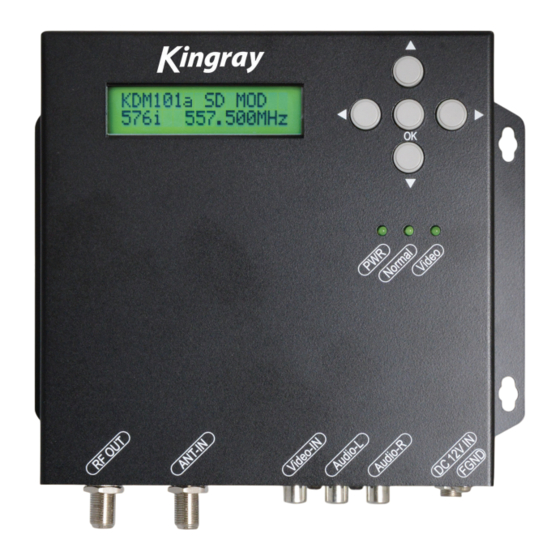

AV TO DIGITAL (DVB-T) MODULATOR
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDM101a and is the answer not in the manual?

Questions and answers

Related Manuals for Kingray KDM101a

Summary of Contents for Kingray KDM101a

  • Page 1 KDM101a AV TO DIGITAL (DVB-T) MODULATOR I N S T R U C T I O N M A N U A L...

  • Page 2: Table Of Contents

    CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 RF output advanced .

  • Page 3: Introduction

    1. The power-supply cord or plug is damaged Mounting 2. Liquid has been spilled, or objects have fallen into The KDM101a can either be wall or shelf mounted . Ensure the the unit . unit is mounted securely so as not to cause harm to anyone or to damage the product by being dislodged .

  • Page 4: Installation

    Power supply Video player (DVD, set top box, satellite receiver) TV antenna KDM101a GENERAL OPERATION After boot-up press the OK button to enter the menus . Use the arrows to select between basic and advanced menus . In the Menus and Submenus, press the arrows to scroll up or down .

  • Page 5: Submenu Of Advanced Menu

    Submenu in Advanced Menu Advanced Menu RF Output Advanced Menu Video RF Output Set RF Output Video Tune Colour RF Output Aspect Ratio Rtrv Status RF Output Video Advanced Rtrv Status Advanced Menu Encoder Rate: Advanced Menu Stream Audio 128k Stream Set Service ID Stream...

  • Page 6: Basic Menu

    BASIC MENU Press the OK button to enter the menu selecting page, then press the arrows to select basic menu and press the OK button again . In this menu you can change basic parameters such as output level and frequency . Country: In the basic menu, the first page is ‘Country’...

  • Page 7: Retrieve Status

    Use the same steps as above to set the Constellation (QAM16, QAM64) . Constellation: QAM64 Use the same steps as above to set the FEC (1/2, 2/3, 3/4, 5/6, 7/8) . FEC: Use the same steps as above to set the Guard Interval (1/4, 1/8 . 1/16, 1/32) . Guard Interval: 1/32 When all the items in ‘Setup RF Output’...

  • Page 8: Retrieve Video Status

    Tune Colour Press the arrow to select tune colour, press the OK button to enter the Submenu . Cont: Press the OK button to access the adjust mode . Press the arrow to advance to the next character and the arrows to set .

  • Page 9: Stream

    Press the OK button to enter the next page to set the Service Name . Service Name: KINGRAY SD MOD Press the OK button to enter the ‘Adjustment Mode’ . The LCD display will show an ‘ ’ in the Service Name: upper right corner .
  • Page 10 Set PID arrow to enter ‘Stream Set PID’ . Press the OK button to enter the Submenu PMT . Press the PMT: Press the OK button to enter edit mode . Set the PID using the arrows, use the 1328 arrow to advance to the next digit .

  • Page 11: Retrieve Status

    Set TS ID arrow to enter ‘Stream Set TS ID’, press the OK button to enter TS ID . Press the OK Use the TS ID: button to enter edit mode . Use the arrows to set the first number of the TS ID . Press arrows to set (1-65535) .

  • Page 12: Channel Table List - Australia

    CHANNEL TABLE LIST – AUSTRALIA Appendix A Dig. Central Dig. Central Dig. Central Channel Channel Channel Channel Frequency Channel Frequency Channel Frequency Frequency MHz Frequency MHz Frequency MHz Band III 582–589 585 .5 174–181 177 .5 589–596 592 .5 694–701 697 .5 181–188 184 .5...

  • Page 13: Recommended Mpeg-2 Code Rate

    RECOMMENDED MPEG-2 CODE RATE Appendix B 7 MHz Bandwidth 8 MHz Bandwidth Modulation Guard Interval Guard Interval Constellation 1/16 1/32 1/16 1/32 8 .70 9 .67 10 .24 10 .55 9 .95 11 .06 11 .71 12 .06 11 .61 12 .90 13 .66 14 .07...

  • Page 14: Warranty Against Defects

    (iii) the cost of repairing the goods or of acquiring equivalent goods; 4 .1 We provide the following warranty on GME and Kingray (b) in the case of services we supply, to any one of the products . No repair or replacement during the warranty following as we decide –...
  • Page 15 A division of Standard Communications Pty Ltd . Head Office: PO Box 96, Winston Hills, NSW 2153, Australia . New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ . T: (09) 274 0955 . All other international enquiries email: export@gme .net .au K D M 1 0 1 a I N S T R U C T I O N M A N U A L Drawing No: 48403-1 Part No: 310696...
