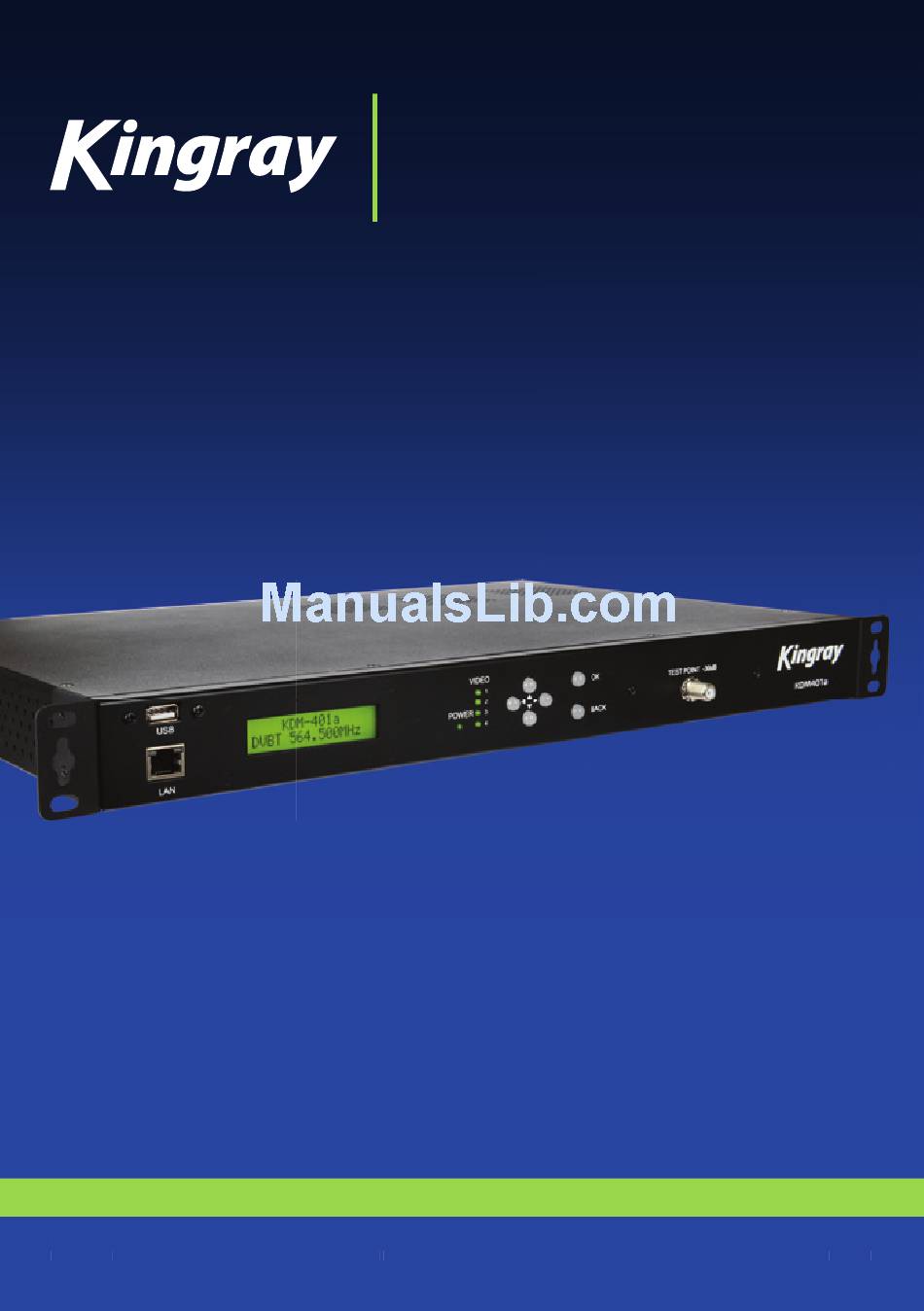

- Page 1 KDM401a QUAD AV TO DIGITAL (DVB-T) MODULATOR I N S T R U C T I O N M A N U A L K D M 4 0 1 a K D M 4 0 1 a I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Retrieve RF Output Status . -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Kingray KDM401a SD modulator . Please read this manual carefully prior to installation as it contains information which will ensure you achieve the best performance from your KDM401a . FRONT LED display normal/video 1,2,3,4... -
Page 4: Safety Instructions
Standard Communications branch for servicing if any of the Mounting following occurs: The KDM401a can either be rack or shelf mounted . Ensure the 1. The power-supply cord or plug is damaged unit is mounted securely so as not to cause harm to anyone or to damage the product by being dislodged . -
Page 5: Installation
INSTALLATION USB Flash Drive Internet or PC Earth Connection Distributor network Video player Power (Digital TV Or (DVD, set top box, satellite input Set-top box) receiver) GENERAL OPERATION After boot-up press the OK button to enter the menus . Use the arrows to select between basic and advanced menus . -
Page 6: Quick Menu Guide
QUICK MENU GUIDE SYSTEM BOOTING Boot system KDM401a Model name Please wait . . . 564 .500 MHz RF Output frequency MAIN MENU Main Menu Country: Main Menu Advanced Menu Basic Australia Advanced RF Output Frequency: Advanced Menu C33 (564 .500) - Page 7 SUBMENU IN ADVANCED MENU CONTINUED... Advanced Menu Video Advanced Menu Port number: Video Set Video Audio Video Audio: Tune Colour Encoder Rate Video Aspect Ratio Video Rtrv Status Advanced Menu Stream Advanced Menu System Stream Set Service Name System Rtrv Inventory Stream System Set Service ID...
-
Page 8: Operating Adjustment Via Lcd And Buttons
OPERATING ADJUSTMENT VIA LCD AND BUTTONS For ‘Basic and Advanced Menu’ settings, press the OK button to access the adjustment mode . In this mode ‘ ’ will be displayed in the upper right corner . Use the arrows to select parameter values, then press the OK button to confirm the setting . -
Page 9: Rf Output Advanced
Carrier: Use the same steps as above to set the Carrier (2K, 8K) . Use the same steps as above to set the Constellation (QAM16*, QAM64) . Constellation: QAM64 Use the same steps as above to set the FEC (1/2, 2/3, 3/4, 5/6, 7/8) . FEC: Use the same steps as above to set the Guard Interval (1/4, 1/8, 1/16, 1/32) . -
Page 10: Retrieve Rf Output Status
When the ‘Modulator’ number has been set, there will be a confirmation on the display . Press Are you sure? arrows to select YES or NO . Select ‘y’ for yes, all the settings above will be stored in the memory . -
Page 11: Retrieve Video Status
Service Name . 0-9 and A-Z can be used up to 15 characters . Press the arrow to KINGRAY SD MOD advance to the next character and the arrows to set . Press the OK button to save . - Page 12 Set Service ID Press the OK button to enter the next page of the menu . Stream Set Service Press the OK button to access port number adjustment mode . Use the arrows to Port Number: select the port number, press the OK button to enter the next page to set the service name . Use the same steps in Stream Set Service Name for ports 2-4 .
- Page 13 Use the same steps as above to set the Audio (32-8190 excluding 71) . Audio When the ‘PID’ has been set, there will be a confirmation on the display . Press arrows Are you sure? to select YES or NO . Select ‘y’ for yes, all the settings above will be stored in the memory . Select ‘n’...
-
Page 14: Retrieve Stream Status
When the ‘Stream Set TS ID’ has been set, there will be a confirmation on the display . Are you sure? Press arrows to select YES or NO . Select ‘y’ for yes, all the settings above will be stored in the memory . Select ‘n’ for no to cancel . Press the OK button to confirm . RETRIEVE STREAM STATUS Following the main Submenu flow charts (pages 6 and 7) enter the ‘Advanced Menu System’... -
Page 15: Set Language
ETHERNET CONNECTION The web browser will allow the user to fully confi gure the 1 . Connect the PC to the LAN port of the KDM401a unit . KDM401a unit via an Ethernet connection . Your computer will See below diagram . - Page 16 . Quick Setup Using the interface below set the modulation number from 0 4 . Enter the KDM401a IP address . to 10 when using multiple modulators, once complete click Save Settings to save . 5 . Click on ENTER to access the welcome screen . Enter the default password ‘1234’...
-
Page 17: Audio Parameters
Stream Parameters Tune color Using the interface below set the contrast, brightness, hue Set Service Name and saturation for each port, click Save Settings to save . Using the interface below set the service name of each port, click save Settings to save . Aspect Ratio Using the interface below set the Aspect Ration to 4:3 or Highlight and delete the current name, when typing in the... - Page 18 Set PID Set TSID Using the interface below set the PMT, PCR, Video and Audio Using the interface below set the TSID, click Save Settings PID for each port, click Save Settings to save . to save . Set NIT System Parameters Using the interface below set the original network ID, System Reset...
- Page 19 Upgrade Code Set Language Using the interface below the code can be upgraded . Using this interface the language used can be set . Backup Parameters Set Password Using this interface the parameters can be backed up . Using this interface the password can be set . Restore Parameters Using this interface the parameters can be restored from a stored file .
-
Page 20: Channel Table List - Australia
CHANNEL TABLE LIST – AUSTRALIA APPENDIX A Dig. Central Dig. Central Dig. Central Channel Channel Channel Channel Frequency Channel Frequency Channel Frequency Frequency MHz Frequency MHz Frequency MHz Band III 582–589 585 .5 174–181 177 .5 589–596 592 .5 694–701 697 .5 181–188 184 .5... -
Page 21: Channel Table List - Europe
CHANNEL TABLE LIST – EUROPE APPENDIX A Channel Dig. Central Channel Dig. Central Channel Dig.Central Channel Frequency Frequency Channel Frequency Frequency Channel Frequency Frequency Band III Band V 174–181 177 .5 606–614 694–702 181–188 184 .5 614–622 702–710 188–195 191 .5 622–630 710–718 195–202... -
Page 22: Specifications
SPECIFICATIONS Video input Output Video input Frequency range CVBS 174–820 MHz (Aus) 470–862 MHz (NZ) Video input level 0 .5–2 Vpp Output level 80–95 dBµV Video mode Output impedance 75 Ω Input connector Channel bandwidth 7, 8 MHz Audio input Output level adjustment up to 15 dB Audio input... -
Page 23: Warranty Against Defects
(iii) the cost of repairing the goods or of acquiring equivalent goods; 4 .1 We provide the following warranty on GME and Kingray (b) in the case of services we supply, to any one of the products . No repair or replacement during the warranty following as we decide –... - Page 24 1300 463 463 kingray.net.au A division of Standard Communications Pty Ltd . Head Office: PO Box 96, Winston Hills, NSW 2153, Australia . New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ . T: (09) 274 0955 . All international enquiries email: export@gme .net .au...
