Mensor Model 9415 Multi-Channel Pressure Test System
Mensor LP, 201 Barnes Drive, San Marcos, TX, USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9415 and is the answer not in the manual?

Questions and answers

Related Manuals for mensor 9415

Summary of Contents for mensor 9415

  • Page 1 Mensor Model 9415 Multi-Channel Pressure Test System Mensor LP, 201 Barnes Drive, San Marcos, TX, USA...
  • Page 2 Pg 28: Operation of Model 9414 Pg 29: Communication Protocol:  Command Set Pg 30: Normal operation  Normal Shutdown Sequence Pg 31: Emergency Shutdown Sequence  Notes on Remote Transducers Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 3 Pg 37: General Specifications and Ratings: Pg 38: Tables: Pg 39: Tables: Pg 40: Table 2: Pg 41: Table 2: Pg 42: Table 2: Pg 43-58: Appendix A Pg 58-60: Appendix B Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

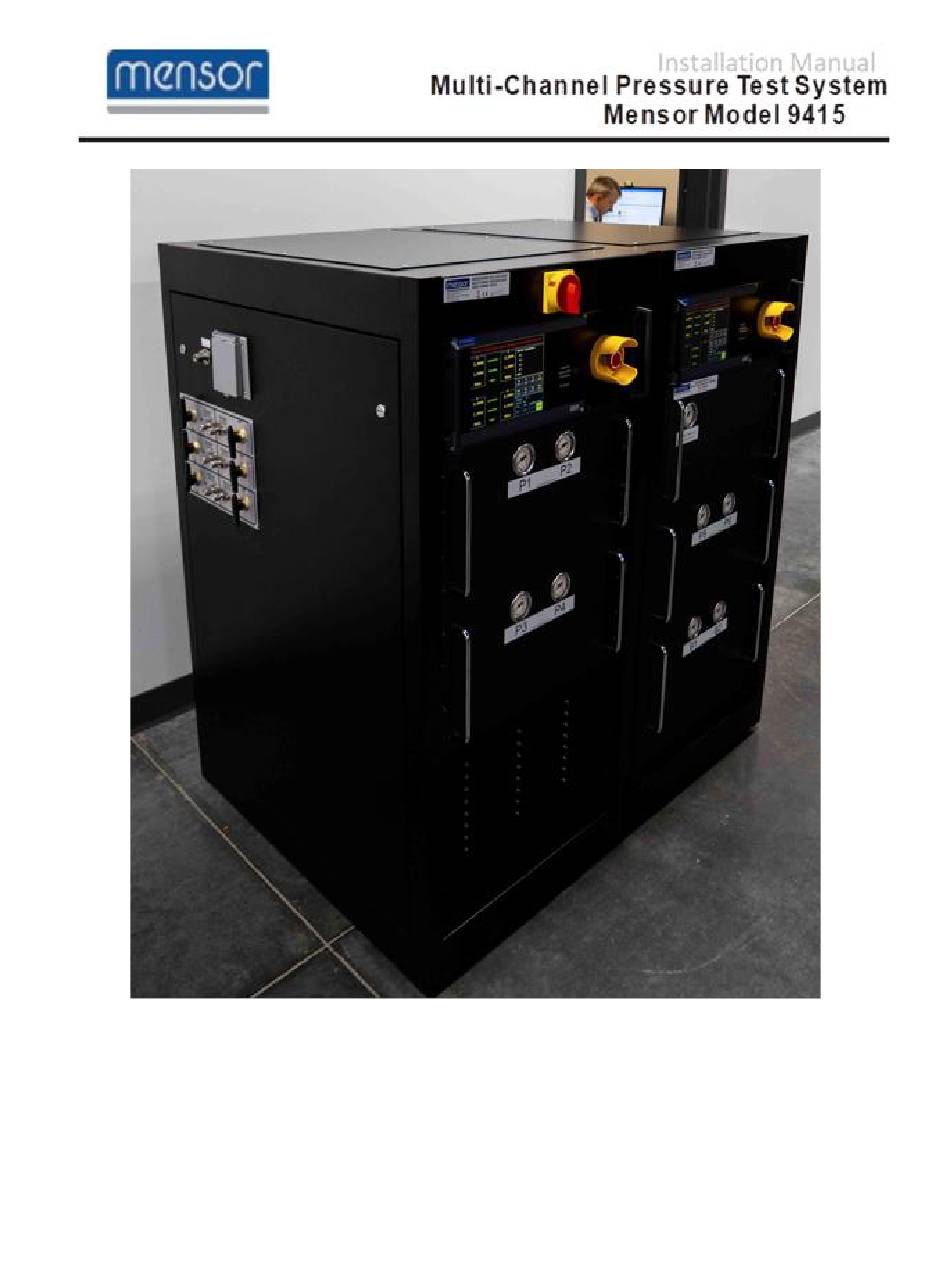

  • Page 4 Multi-Channel Pressure Test System General Description: The Mensor Model 9415 Multi-Channel Pressure Test System is used for rapid testing of pressure transducers. It can be a single or dual rack configured with two, four, or six control channels. The model 9414 (quad or dual) controllers provide the control channels.
  • Page 5 The power cable used is rated for 15 amp service. The Model 9415 system has a power cut off switch located on the top of the left rack which connects/disconnects the power to the rack’s “Electrical Junction Box”. This box provides a constant AC power supply to the Model 9414 controllers and houses electronics for the relay control of the vacuum pump’s AC power supply.
  • Page 6 Special handling and carrying techniques are required as some individual components in the system exceed 18 kg. A “TWO MAN LIFT” should be employed. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 7 6 to 10 foot (~2 meters) pressure hoses to connect between the rack and pressure selection valves in either the Model 9418 Remote Transducer Module or the handler. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 8 If a rear door is installed, open that one as well. Proceed to bolt the racks together using the braces provided. Brace Kit Breakdown:  Brackets (2)  10-32 Screws (8)  Lock Washer (8)  Flat Washer (8) Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 9 The first bracket should be installed above the 20 rail indentation. Each screw should have a lock washer followed by a flat washer which then contacts the bracket. 2 Rail Indentation Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 10 Output” and connect it to the rear of the “P6 Output” located on the I/O port panel. Ensure that all tubing connections are secured tightly, to ensure an air tight seal, before proceeding. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 11 Ensure that the AC power cord is removed from any mains during all electrical work. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 12  The “9 Pin D-Sub Cable” is responsible for communication between the two Models 9414. Location 1: 9 Pin D-Sub Cable Connection  Insert and secure the “9 pin D-Sub Cable” into the back of the Model 9414. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 13  Insert the blue “Neutrik Connector” into the blue port label “Dual Controller”. Ensure the connector is secured by inserting the connector, rotating clockwise, and confirming that the metal slide lock is locked. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 14 The 9418 is electrically connected to the Model 9415 system using the 25 pin d-sub cable provided. Pneumatic connections between the 9418 and the device under test should be short and with minimal volume.
  • Page 15 Install the panel with the various ports and legend on the left side of the newly bolted together rack system. Install the blank panel that was set aside on the other side. Once done it should resemble the following images. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 16 Vacuum Pressure Relief Valve Upgrade: .5 PSI Relief Valve 1”x ½” Reducer 1/2” FNPT x 3/8” Tube Tee 3/8” Coupler ¼” NPT x 3/8” Elbow 1” Vacuum Flange ¼” NPT Adapter Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 17 After all of the cables have been freed, the two bolts holding the panel in place can be unscrewed. The panel with the attached electrical junction boxes can then be removed. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 18 Use the two-wire cable provided to connect to the 2 and 4 connections on the switch. Ensure that the brown lead connects to 2 and the blue lead connects to 4. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 19: Table Of Contents

     ¼” Rail Nut (7)  ¼” Lock Nut (5)  10-32 Black Screws (8)  3/8” P-clamp (16)  5/8” P-clamp (4)  Rail (2)  Electrical Junction Box (1) Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 20 Junction Box has been installed, proceed to tighten the Rail Nuts. Note that the Electrical Junction Box should be near the rear of the rack as shown in the image above. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 21 Run the newly installed cable from the “Disconnect Switch Wiring Change:” along the top of the rack, near the center of the unit. The cable should be clamped down in two different places as shown above. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 22: ½" Washer

    Continue to run the cable to the bottom of the rack and clamp it down. Form a “U” with the cable and clamp it down. Run the cable up slightly and clamp it down again. Use the image above as a reference. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 23: ¼" Lock Washer

    Clamp the AC power cord coming out of the vacuum pump, down to the nearest rail. Make sure there is enough slack to make a small bend in the cable as shown above. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 24: 3/8" P-Clamp

    Clamp down the cable as shown above. Note that some vacuum pump mounting nuts will need to be removed and reinstalled. Also, note that removing the front vented panel for ease of access is recommended. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 25 The grounding wire for the Model 9414 Dual should be mounted on its I/O panel as shown in the image above. The other end of this grounding wire should be connected to the grounding terminal. *Repeat this grounding technique for the Model 9414 Quad.* Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 26: 5/8" P-Clamp

    The rest of the cabling should be passed through to the other side of the unit and clamped down with the new main power disconnect cable. This cable can then be plugged into the “Dual Controller” port of the Model 9415 - HP. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 27: Electrical Junction Box

    * Refer to the pneumatic schematic shown above for tubing. * Refer to the “Finishing Touches:” section above to finish the upgrade installation. End of Upgrade Section Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 28 A red square indicates that the controller is out of the tolerance window. The upper right-hand window is dynamic and changes based on the process Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 29 1, 2, 3, and 4. If a barometric transducer is included in the system, this will be addressed as 5, but will be displayed on the status window as ‘B’ for barometer. 2. Turn the vacuum source ON (S4) Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 30 Commands are accepted in either uppercase or lowercase characters. Protocol is set at 57,600 baud, 8 data bits, 1 stop bit, and no parity. Communication is RS-232 on a 9 pin D-sub. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 31 C. Reading the required channel’s transducer’s measured value: (X1?, X2?, …) D. Placing the channel back into the control mode: (ModeP1=CTRL, ModeP2=CTRL, …) E. Repeating steps 6A through 6D for the next pressure set point Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 32 ~20 msec readings per second, it is possible to get two consecutive readings with the same value, but this does guarantee that the readings will be within 20 milliseconds of the time of the Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 33 (=ap) and subtract the current pressure (=cp). Record the new zero calibration offset value (=nz). Note: values can be negative numbers. 6. RDGP1? record the current pressure (=cp) read by the sensor 7. ZC0=(=nz) sets the new zero calibration offset Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 34 Reports the pressure unit of the sensor which will be used to correctly make the zero offsets (=un) 1 = psi 5 = inH2O 14 = bar 15 = mbar 22 = kpa Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 35 8. X1? are within tolerance of the sensor’s accuracy 9. Repeat steps 1-9 for all other installed channels in the remote measure unit. Storage and Transportation: Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 36 9414 and removing anything that might block the flow of air into the rack and controller. The calibration of the Mensor Series 6100 and 6180 Digital Pressure Transducers should be periodically checked per the service interval established under the calibration section.
  • Page 37 10 to 85 % RH (non-condensing) (non- (non- condensing) condensing) Communications RS-232, 57600 RS-232, 57600 RS-232, 57600 Baud,8,1,N Baud,8,1,N Baud,8,1,N Warm-up Time 15 Minutes or 15 Minutes or 15 Minutes or less less less Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 38 100 to 240 VAC, 47 to 63 Hz, 47 to 63 Hz, 47 to 63 Hz, 1500 VA max, 750 VA typical 1500 VA max, 1500 VA max, 750 VA typical 750 VA typical Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 39 UNITNO=(=un) Baro Measured in (=un) (=ap) = (0.0 for gauge sensors) RDGP3? (=cp) = Subtract values [(=ap)-(=cp)=(=nz)] = ZC2=(=nz) SAVE2 Wait one minute time start: RDGP3? Value within tolerance? ZC3? Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 40: Subtract Values

    1=psi, 5=inH2O, 14=bar, 15=mbar, 22=kpa UNITNO=(=un) Baro Measured in (=un) (=ap) = (0.0 for gauge sensors) RDGP6? (=cp) = Subtract values [(=ap)-(=cp)=(=nz)] = ZC5=(=nz) SAVE5 Wait one minute time start: RDGP6? Value within tolerance? Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...

  • Page 41: Unitno=(=Un)

    Circle one (=un): 1=psi, 5=inH2O, 14=bar, 15=mbar, 22=kpa UNITNO=(=un) Vacuum measured in (=un) (=ap) = (0.0 for gauge sensors) (=cp) = Subtract values [(=ap)-(=cp)=(=nz)] = ZCX3=(=nz) SAVEX3 Wait one minute time start: Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 42 Circle one (=un): 1=psi, 5=inH2O, 14=bar, 15=mbar, 22=kpa UNITNO=(=un) Current Pressure in (=un) (=ap) = (=cp) = [(=ap)/(=cp)=(=ns)] = Divide Values SCX3=(=ns) SAVEX3 Wait one minute time start: Value within tolerance? Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 43 Circle one (=un): 1=psi, 5=inH2O, 14=bar, 15=mbar, 22=kpa UNITNO=(=un) Current Pressure in (=un) (=ap) = (=cp) = Divide Values [(=ap)/(=cp)=(=ns)] = SCX4=(=ns) SAVEX4 Wait one minute time start: Value within tolerance? Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 44 Changes the P2 control set point to match the current measured pressure. Effectively stops controller from slowly drifting into the original set point. HoldP3 Changes the P3 control set point to match the current measured pressure. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 45 Returns mode setting of P2 channel, Vent Measure (MEAS), Control (CTRL), Vent (VENT), or Standby (STBY). ModeP2= Sets P2 channel to Measure (MEAS), ModeP2= Vent Control (CTRL), Vent (VENT), or Standby (STBY). Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 46 15 = mbar 22 = kpa Natu2? Returns the pressure units value of transducer 2 (control channel P3): 1 = psi 5 = inH2O 14 = bar 15 = mbar Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 47 22 = kpa Natux3? Returns the pressure units value of external transducer 3 (remote measure channel P3): 1 = psi 5 = inH2O 14 = bar 15 = mbar 22 = kpa Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 48 NO if not within window. See SETWINDOW command. ReadyP2? Returns the status of P2 pressure ReadyP2 channel. Returns YES if P2 pressure is within pressure window setting or NO if Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 49 4 max range (in native units) rmaxx5? query remote transducer 5 max range (in native units) rmin0? query P1 transducer min range (in native units) Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 50 P3 valves. RouteVent If the pressure select manifold is present Routevent in the remote transducer module, closes P1, P2, P3 and P4 pressure selection valves and opens vent valve to allow Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 51 Save5 Saves changes made to transducer 5 (control channel P6) configuration established by the “Zc5=” or “Sc5=” commands for future equipment power down cycles. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 52 3 (control channel P4) Sc3= Sets a new span multiplier value in transducer 3 (control channel P4). This value must be saved with the ‘save3’ command to be retained through power down cycles. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 53 P4). This value must be saved with the ‘Savex2’ command to be retained through power down cycles. serialno? Returns the serial number of the control Returns the system module control module serial number of Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 54 Returns the pressure setpoint for P5 in Example: the current units of measurement. SetP5? 2000 kPa SetP5= Enters the control pressure setpoint for Example: P5 in the current units of measurement. SetP5= 2000 Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 55 1 = psi 5 = inH2O 14 = bar 15 = mbar 22 = kpa Unlockpanel Enables the front panel touchscreen on Unlockpanel the 9414. This is the default power up mode. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 56 6100 remote transducer. current pressure units Returns pressure reading from remote Returns 8 character transducer 3, a lower range Mensor 6100 value string in the remote transducer. current pressure units Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 57 Zc1? Returns the stored zero offset value of transducer 1 (control channel P2) Zc1= Sets a new zero offset value in transducer 1 (control channel P2). This Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 58 Sets a new zero offset value in remote transducer 2 (remote measure transducer P2). This value must be saved with the ‘Savex2’ command to be retained through power down cycles. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 59 Sets a new zero offset value in remote transducer 4 (remote measure transducer P4). This value must be saved with the ‘Savex4’ command to be retained through power down cycles. Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 60 Tanks Certified by Manchester Tank – IN MAWP: 300 psi @ 650 F RT- NO MDMT- 20F@300 psi CAT: 306319 YR- 2005 CRN: SH .094 GAL 3 HD .094 2:1 SE Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
  • Page 61 Mensor LP 201 Barnes Drive San Marcos, Texas 78666-5994 Phone: 512.396.4200 Fax: 512.396.1820 Web site: www.mensor.com E-mail: sales@mensor.com Mensor Model 9415 Multi-Channel Pressure Test System Manual Rev. I...
