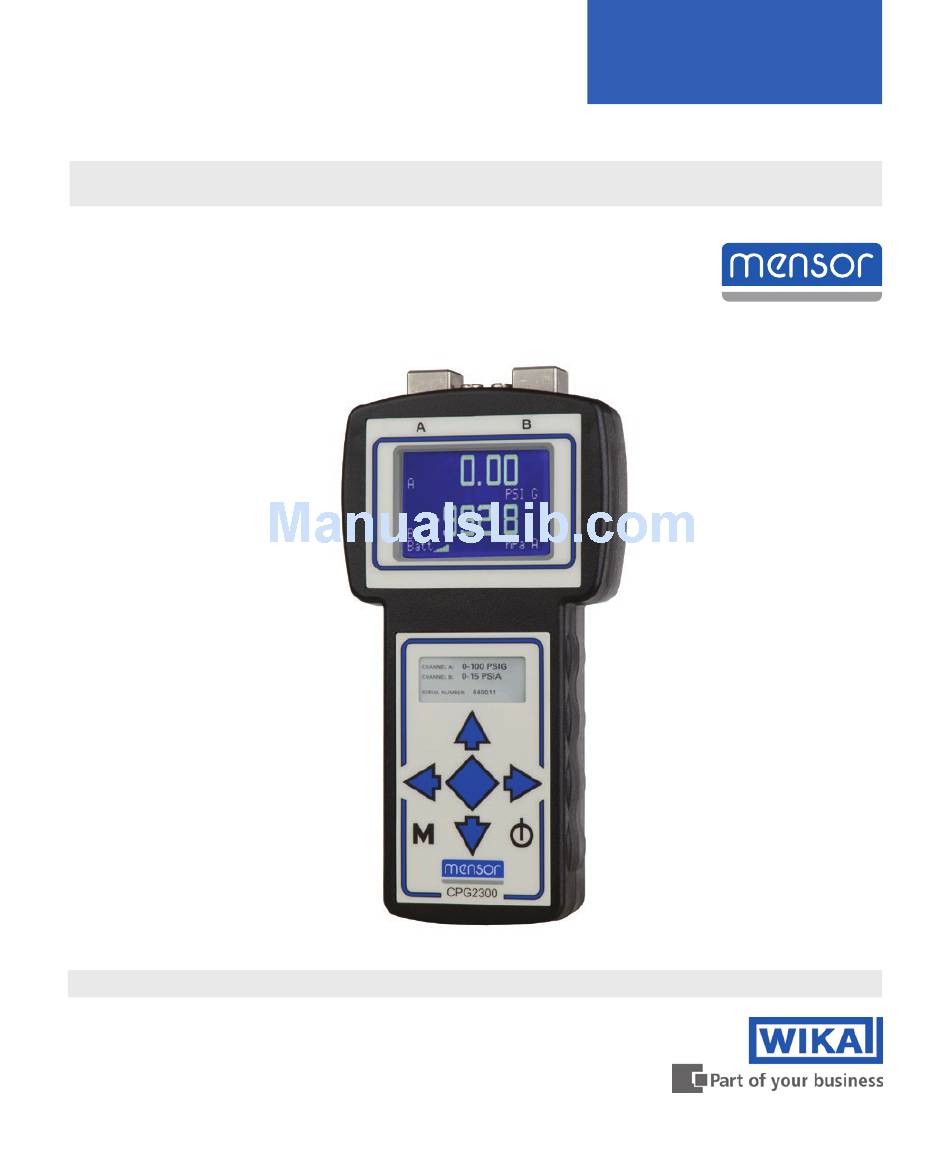

- Page 1 Operating Instructions Portable Digital Pressure Gauge CPG2300 Portable Digital Pressure Gauge Series 2300 PN 0017441003N • 01/2017...
- Page 2 This Caution symbol indicates danger for the system and material if the respective safety precautions are not taken. Caution This Notice symbol does not indicate safety notices but information for a better understanding of the facts. Copyright © 2005, Mensor. All rights reserved. Operating Instructions CPG2300 Series...
-
Page 3: Table Of Contents
5.4 Electrical Connections 5.5 Power On 6. Local Operation 6.1 Keypad 6.2 Standard Display 6.3 Menu Screens 6.3.1 Main Menu Screen 6.3.2 Sensor Setup Menu 6.3.3 Password Entry Screen 6.3.4 Sensor Calibration Screen 6.3.5 Units Screens Operating Instructions CPG2300 Series... - Page 4 8.1 Current Input 8.1.1 Menu Screens 8.1.2 Operational Notes 8.1.3 Connection Configurations 8.1.4 Application Diagrams 9. Calibration 9.1 Environment 9.2 Equipment 9.3 Pressure Standard 9.4 Calibration Medium 9.5 Calibration Process 9.5.1 Zero Adjustment 9.5.2 Span Adjustment Operating Instructions CPG2300 Series...
-
Page 5: General Information
Mensor, this warranty does not apply. The judgment of Mensor will be final as to all matters concerning condition of the product, the cause and nature of a defect, and the necessity or manner of repair. -
Page 6: Software License Agreement
The entire risk of the quality and performance of the soft- ware program is with the end user. Mensor and its suppliers shall not be held to any liability for any damages suffered or incurred by the end user (including, but not limited to, general, special, consequential or... -
Page 7: Safety Notices
Caution CAUTION: Avoid excessive overpressure to the sensor! Externally mounted relief valves to provide overpressure protection are avail- able from Mensor as optional devices, and are highly recommended for very low pressure sensors (less than 10 psi). Caution CAUTION: It is recommended that a backup wrench be used when installing fittings or connections on the CPG2300. - Page 8 Portable Digital Pressure Gauge CPG2300 Series Notes Operating Instructions CPG2300 Series...
-
Page 9: Product Description
These screens are each described in further detail in the Local Operation and Remote Operation sections. 3.3 Power Supply The power adapter is utilized to provide power to operate the CPG2300 and also to re- charge the internal batteries. It produces 12 Vdc @ 830 mA max. 3.4 Battery The CPG2300 has an internal battery pack consisting of four ‘AA’... -
Page 10: Serial In/Out Communications
Portable Digital Pressure Gauge CPG2300 Series Battery Charging: The CPG2300 has a built-in battery charger that will take approximately 8 hours with an input supply of 12 Vdc to fully recharge a battery. The built-in charger will switch from fast charge to maintenance mode automatically when a full charge is achieved. -
Page 11: Specifications
National Institute of Standards and Technology (NIST). These specifications are obtained in accordance with the ISO Guide to the Expression of Un- certainty in Measurement (GUM). The calibration program at Mensor is accredited by the American Association of Laboratory Accreditation (A2LA) as complying with both the ISO/ IEC 17025:2005 and the ANSI/NCSL Z540-1-1994 standards. - Page 12 @0C and 60F, inH2O @4C, 20C, bar, mbar, mmHg @ 0C, cmHg @0C, hPa, kPa, Pa, MPa, kg/sq cm, cmH2O @4C, cmH2O @20C, mSW @0C. Display Monochrome 128 x64 LCD, with white LED back light. Operating Instructions CPG2300 Series...
-
Page 13: Installation
Upon receipt, please examine the transducer for shipping damage. Report any ap- parent damage to the carrier immediately. In addition to this manual you should have: • CPG2300 Digital Pressure Gauge; • Power adapter (charger) • Any accessories ordered;... -
Page 14: Dimensions
Portable Digital Pressure Gauge CPG2300 Series 5.2 Dimensions Figure 5.2 - Case Outline/Dimensions Operating Instructions CPG2300 Series... -
Page 15: Pressure Connections
The left 1/4 inch FNPT threaded port is used to measure the pressure on Channel A of the CPG2300. If the sensor range is less than 20 psi and is a gauge or bi-directional sensor, there will also be a 1/16 inch hose barb fitting beside the pressure port. The barb fitting provides access to the reference port of the sensor. -
Page 16: Electrical Connections
Portable Digital Pressure Gauge CPG2300 Series 5.4 Electrical Connections For RS-232 serial port operation, connect the CPG2300 to the host computer per Figure 5.4a. Notice that the host TRANSMIT line is connected to the CPG2300 RECEIVE line (TX to RX), and vice versa. -
Page 17: Local Operation
The “Main Menu” Key Power Switch The M key beings up the main This key is the power on/off menu. switch. Figure 6.1 - Keypad and Display Features Operating Instructions CPG2300 Series... -
Page 18: Standard Display
If the M (menu) key is pressed at any time, the main menu is displayed on the screen. If one sensor is installed in the CPG2300, the Sensor A setup screen is displayed. If two sensors are installed in the CPG2300, the following will be displayed:... -
Page 19: Sensor Setup Menu
“Peak On” to indicate that the peak capture function is enabled. Peak readings are displayed only when a single channel is selected. Peak Reset: Resets the peak values to the active measured pressure. A Setup Peak Off Peak Rst Null Off Units Operating Instructions CPG2300 Series... - Page 20 A Setup menu item displays “Null Off”, the null function is disabled Peak Off Peak Rst for the active sensor. If “Null Off” is selected, the CPG2300 Null On will subtract the current measured pressure from any Units subsequent pressure readings. Unlike the Peak function, the Null function can be displayed on the main operation screen with both sensors pressures displayed.
-
Page 21: Password Entry Screen
Adjust the digits to the true pressure applied to the active MA Calibration sensor and press the ◀┘ (enter) key to store the value. Cal Zero Cal Span For more details, see the Calibration section. Change PW Reset Cal Operating Instructions CPG2300 Series... - Page 22 Other Keys to Quit If the ◀┘ (enter) key is pressed, the calibration is reset to the factory defaults and the main operation screen is displayed. If any other key is pressed, the main menu screen is dis- played. Operating Instructions CPG2300 Series...
-
Page 23: Units Screens
To apply the “user” conversion factor, the units “User” must be selected for the active sensor. For the remote programmable pressure units list and information, see “User Programmable Pressure Units List” in the Remote Operation section of this manual. Operating Instructions CPG2300 Series... -
Page 24: Menu Tree
Portable Digital Pressure Gauge CPG2300 Series 6.4 Menu Tree CPG2300 Figure 6.4 - CPG2300 Menu Tree Operating Instructions CPG2300 Series... -
Page 25: Remote Operation
RS-232 serial port. The serial port can be used to configure and calibrate the CPG2300, or to read the output of its sensors. This section of the manual provides in- formation on the serial port configuration, explains the command conventions used in this manual, and lists the common commands and queries which are recognized by the CPG2300. -
Page 26: Password Protection
The password string is the password set in the CPG2300. The password is set at the factory to “0000”. However, for calibration pro- tection, the actual password has been replaced with PW in the command string example. -
Page 27: Commands And Queries
Note that when both channels are selected (“DSP?” = 3) the A & B readings are returned. Example of the peak return string format: 1 +14.7011, +14.4561, +14.3001<cr><lf>. #XA<sp>n<cr><lf> Sets address of CPG2300 to 0-9 or A-Z. #XCH?<cr><lf> X<sp>n<cr><lf> Returns active channel “A” or “B”. - Page 28 Returns the CPG2300 accuracy. <cr><lf> #XI?<cr><lf> X<sp>nn.nnn<cr><lf> Available only with the Current Measurement option; Returns current measurement in milliamps. #XID?<cr><lf> X<sp>ID<sp>nn Returns the CPG2300 ID string. MENSOR, <sp>nnnn 64nn,<sp>nnnnnnnn, <sp>Vn.nn<cr><lf> NOS? #XNOS?<cr><lf> X<sp>NOS<sp>n Returns number of sensors in- <cr><lf> stalled in the CPG2300.
- Page 29 USR? #XUSR?<cr><lf> X<sp>USR<sp>nn Returns the user unit multiplier for nnnnnnnennnn the active sensor. <cr><lf> #XUSR<sp>n Sets user selected units for the <cr><lf> active sensor. Ranges from -1.00000e+6 to -1.00000e-6 and from +1.00000e- 6 to +1.00000e+6. Operating Instructions CPG2300 Series...
-
Page 30: User Programmable Pressure Units List
#*UT 2 34<cr><lf> - the third unit displayed would be hPa #*UT 3 0<cr><lf> - terminates the displayed units to this point #*UT 0 0<cr><lf> - allows all factory units to be displayed and used The “SAVE” command must be sent to make changes permanent. Operating Instructions CPG2300 Series... -
Page 31: Pressure Unit Codes And Conversions
4C 27.680672 inH2O 20C 27.729767 0.06894757 mbar 68.94757 cmH2O 4C 70.3089 mmHg 0C 51.71508 cmHg 0C 5.171508 6.894757 6894.757 kg/sq cm 0.07030697 mSW 0C (@3.5% salinity) 0.6838528 68.94757 0.006894757 cmH2O 20C 70.4336 User User settable Operating Instructions CPG2300 Series... - Page 32 Portable Digital Pressure Gauge CPG2300 Series Notes Operating Instructions CPG2300 Series...
-
Page 33: Options
The current input option is capable of measuring current from 3 to 24 milliamps (mA). The calibrated range is from 4 to 20 mA. The CPG2300 also provides a 24V dc loop power source which can be turned on or off and that will power most transmitters. The CPG2300 current measurement is protected from over-current or high voltage up to 50V. - Page 34 Calibration Screen: The mA calibration screen allows zero and span to be ad- justed, the calibration to be reset to the factory defaults or the calibration password to be changed. MA Calibration Cal Zero Cal Span Change PW Reset Cal Operating Instructions CPG2300 Series...
-
Page 35: Operational Notes
This is accomplished by issuing the “I?” command (see Remote Operation section). The peak pressure indication function can not be enabled when the current input is enabled. The null feature will work when the current input is enabled. Operating Instructions CPG2300 Series... -
Page 36: Connection Configurations
“Sense –” connection each through 1 Meg ohm resistors. The RS-232 digital ground is connected directly to the “Sense –”. The connections should be isolated from the current loop connections. Figure 8.1.3 - Electrical Diagram (Current Input option) Operating Instructions CPG2300 Series... -
Page 37: Application Diagrams
Portable Digital Pressure Gauge CPG2300 Series 8.1.4 Application Diagrams Figure 8.1.4a - Connections in a powered loop Figure 8.1.4b - Connections using CPG2300 loop power Operating Instructions CPG2300 Series... - Page 38 Portable Digital Pressure Gauge CPG2300 Series Notes Operating Instructions CPG2300 Series...
-
Page 39: Calibration
The temperature should be stable and within the specified calibration range. In addition, for maximum accuracy, see that the CPG2300 is at rest on a stable platform which is free of vibration and shock, and oriented similar to its operating attitude. - Page 40 Portable Digital Pressure Gauge CPG2300 Series MODEL 2300 PRESSURE GAUGE MODEL 2300 PRESSURE GAUGE Figure 9.2 - Calibration Setup Operating Instructions CPG2300 Series...
-
Page 41: Pressure Standard
Access the zero calibration screen as described in the Local Operation section. For gauge sensors: Vent the CPG2300 and adjust the display to show zero pressure by using the arrow keys on the front panel. When zero is shown, press the ◀┘ (enter) key. - Page 42 San Marcos, Texas 78666 Tel: 512-396-4200 Toll Free: 800-984-4200 Fax: 512-396-1820 sales@mensor.com www.mensor.com Operating Instructions CPG2300 Series PN 0017441003N • 01/2017 WIKA Alexander Wiegand SE & Co. KG Alexander-Wiegand-Straße 30 63911 Klingenberg / Germany Tel: (+49) 93 72/132-5015 Fax: (+49) 93 72/132-8767 CTSales@wika.de...
