EEI – 3333 / 3334
Thank you for purchasing the MODWAY DINING CHAIR!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2. Owing to the size and weight of the dining chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of small children.
Component:
1 Chair Back
x1
Customer Service 908-368-1025︱www.modwayfurniture.com

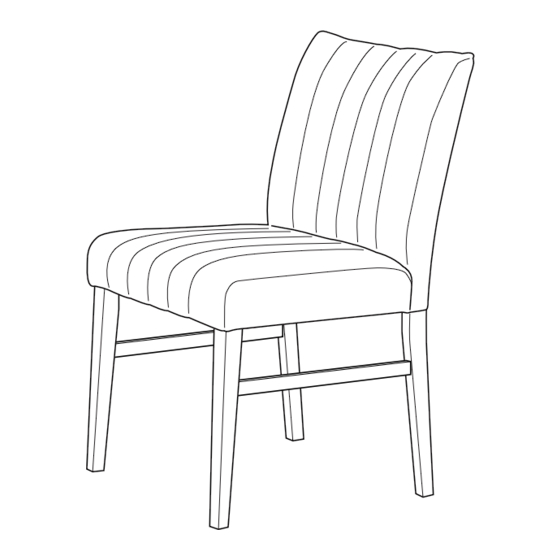

DINING CHAIR
4
3
3
Left (L)
Right (R)
2 Seat Frame
Hardware:
A
B
C
D
E
F
G
1
2
4
3 Front Leg (Left &Right) x2
x1
Bolt M6 x 40mm
x 2
Bolt M6 x 60mm
x 4
Bolt M6 x 80mm
x 4
Spring Washer M6
x 10
Flat Washer M6
x 10
Allen Wrench
x 1
CSK M4 x 30mm
x 4
4 Strecher
Page 1 of 4
x2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway Motivate Channel EEI-3333
Summary of Contents for modway Motivate Channel EEI-3333
- Page 1 EEI – 3333 / 3334 DINING CHAIR Thank you for purchasing the MODWAY DINING CHAIR! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 EEI – 3333 / 3334 DINING CHAIR STEP 1: Please put Chair Back (1) upside down on a carpeted or padded area. Then open the black fabric which is attached by the Velcro from back to front on the bottom of the Seat Frame (2). The inside of the Seat Frame (2) will now be visible.
- Page 3 EEI – 3333 / 3334 DINING CHAIR STEP 3: Insert Stretcher (4) into the upper hole on the bottom of Front Leg (3) and Seat Frame (2) as shown. Insert 1 piece of Front Leg (3) into the upper hole on the bottom of Seat Frame (2) as shown. Attach by 2 pieces of Bolt (B), 2 pieces of Spring Washer (D) and 2 piece of Flat Washer (E) as shown.
- Page 4 EEI – 3333 / 3334 DINING CHAIR STEP 5: Carefully turn over the chair. Please put a heavy object or seat one adult on top of the Seat Frame (2) to pressure the chair for leveling. Fully tighten the Bolts (A & B & C) with Allen Wrench (F). F x 1 Hardware &...
