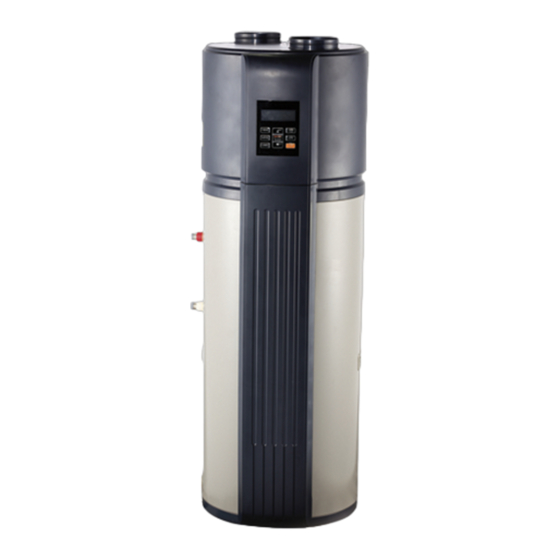

- Page 1 OWNER’S & INSTALLATION MANUAL Type Air-source Heat Pump Water Heater COMPAK KHP-15/190 ACS2 Thank you very much for purchasing our product, Before using your unit , please read this manual carefully and keep it for future reference.
- Page 2 WARNING This unit is required reliable earthing before usage, otherwise might cause injury. If you can't make sure that your house power supply is earthed well, please don't install the unit. Please have a quali ed person perform the reliable earthing connection and the installation of the unit. Examples of a quali ed person include: licensed plumbers, authorized electric company personnel, and authorized service personnel.
- Page 3 PARTS NAMES Air Inlet Air Outlet Top Cover Filter Evaporator Compressor Electronic Control Box Junction Box Cover Fan Assy Front Cover Display Rear Cover Junction Box PT Valve Cover( TCO ) Water Outlet Front Decorative Board ATCO Cover(Electric Heater) Anode Rod Water Inlet Electric Heater Drain Pipe...
-
Page 4: Table Of Contents
1. SAFETY INFORMATION CONTENTS PAGE Please read thoroughly all of the instrucitons before installing or operating the unit. BASIC OPERATION PRINCIPLE............Following safety symbol is very important, always read and obey all SAFETY INFORMATION................ safety symbol: BEFORE INSTALLATION..............You may be injured if you CAUTION INSTALLATION.................. - Page 5 DISPOSAL: Do not dispose this After a long term use, check the unit base product as unsorted municipal and ttings. waste. Collection of such waste If damaged, the unit may sink and result in separately for special treatment is injury. necessary.
-
Page 6: Before Installation
2. BEFORE INSTALLATION CAUTION 2.1 Unpacking 2.1.1 Accessories Table.2-1 Installing the unit in any of the following Accessory Name Qty. Sharp Purpose places may lead to malfunction(If it is Owner’s & Installation Installation and use instruction inevitable, consult the supplier). Manual This manual The site contains mineral oils such as... - Page 7 2.3 Maintenance space requirements 2.5 Unit outline dimension (unit: mm) (unit: mm) Air inlet ≥600 ≥600 ≥600 Barrier outlet Display Fig.2-1 ≥800 ≥600 ≥600 Fig.2-3 Φ560 Fig.2-2 Fig.2-4 2.4 If installed in inclosed space The water heater must be located in a space >15m³, and must have unrestricted air flow.
-
Page 8: Installation
3. INSTALLATION The circulating air for every unit should be more than 350m /h.Make sure there is enough installation space.Outline dimensional drawing(- see Fig.2-3,Fig.2-4) 3.1 Water System Piping User Upper Condensate Outlet Lower Condensate Outlet Temp. Limiting Valve PT Valve Water Outlet Note: Water temperature limiting valve... - Page 9 3.2 Air duct connection Air inlet and outlet with duct. (A+B≤5m) Air inlet connects to duct, air outlet without duct. (A≤5m) Air outlet Air inlet Air outlet Air inlet Fig.3-3 Fig.3-5 It is recommended to install unit by this way in summer that could charge fresh air into room.
- Page 10 NOTE Filter installing at the unit inlet. In terms of the unit with duct, filter in there must be put on the position of duct inlet. (Fig.3-8/3-9) The resistance of duct will decrease oulet inlet Filter air- ow-rate, which will lead to capacity of unit decreased.
- Page 11 3.3.2 Switch setting 3.3 Electric Connection Select the model by dialing S1 on the motherboard CAUTION The power supply should be an independent circuit with rated voltage. Power supply circuit should be earthed 1 2 3 4 Fig.3-11 e ectively. The wiring must be performed by professional technicians in accordance 3.3.3 Electric leakage protector...
-
Page 12: Trial-Running
4. TRIAL-RUNNING NOTE 4.1 Water affusion before operation For optimal efficiency and serviceability, the following clearances should be maintained: 800mm on the air inlet side, 800mm on the air outlet side, 600mm in the back, and 600mm in the front. Before using this unit, please follow the steps below. - Page 13 Modes will be automatically selected by unit. manually mode selection is unavailable. Emptying Running Temperature Range Setting water temperature target range: 38~70ºC. E-heater running ambient temperature range: -20~45ºC. After emptying, please replace the nut of drainpipe. Heat pump running ambient temperature range: -7~43ºC. Water temperature limits: Table.4-1 Close...
- Page 14 4.2.4 Query function For the convenience of maintenance and debug, query function is available by Press 3 buttons together: then system running parameters will be shown one by one with following sequence by each pushing of button. 15-45 15-55 Table.4-2 15-65 15-70 Hour...
-
Page 15: Operation
5. OPERATION Icon Description Reserved will be lightened when the machine is disinfecting. 5.1 Control Panel Explanation Compressor: will be lightened when compressor is running, otherwise will be extinguished. Lock: If button is locked, will be lightened, Display otherwise will be extinguished. Solar: will be lightened when the machine is connected to the solar signal or connected with the solar water... - Page 16 ① ② ③ ① ② ③ Icon Description MODE DISINFECT DISINFECT Manually turn on disinfect function CLOCK ⑨ ④ ⑤ ④ Icon will light up. then the unit will heat up water to 70℃ at least for TIMER disinfection. ON/OFF ⑧...
- Page 17 Icon Description Icon Description TIMER DECREASE/DOWN Timer button ON/OFF If screen is unlocked, corresponding value will decrease by pushing Enter the 6-segment timing setting, 1ON ● When setting temperature, press more TIMER icon is always on, enter the TIMER ON ON/OFF than 1s, temperature value will be decreased setting, and the hour value flashes...
- Page 18 Choose Air Source Heat Pump Water Heater. 5.4 Use Your Appliance with the Comfort Home App Before you start, make sure that: 1.Your smartphone is connected to home wifi network, and you know the network password. 2.Make sure you are next to home appliances. 3.The 2.4GHz (preferable) or 5GHz band wireless signal is enabled on your wireless router.
-
Page 19: Trouble Shooting
6. TROUBLE SHOOTING 6.1 Non-error tips 6.3 When Error happened If some normal errors happen, unit will automatically shift to Q: Why compressor can't start immediately after setting? E-heater for emergent SHW supply, please contact qualified staff A: Unit will wait for 3 min to balance the pressure of system before to repair. - Page 20 6.5 Error code shooting table Table.6-2 Display Malfunction Description Corrective action Maybe the connection between sensor and PCB has released or sensor has been broken. Error of sensor T5U(upper water temperature sensor) Contact a qualified person to service the unit. Maybe the connection between sensor and PCB has Error of sensor T5L(lower water temperature sensor) released or sensor has been broken.
-
Page 21: Maintenance
7. MAINTENANCE CAUTION 7.2 Recommended regular maintenance table Always Turn off your Air-source Heat Pump Water Heater Table.7-1 system and disconnect its power supply before cleaning or maintenance. Checking Checking Checking frequency Action Item content 7.1 Maintenance air filter every month Clean the filter (inlet/outlet) Check the connection between power supply plug and socket... -
Page 22: Specifications
8. SPECIFICATIONS Table. 8-1 Model KHP-15/190 ACS2 Water-heating cap. 1500W Rated power/AMPS 3900W/17A Power supply 220-240V~ 50Hz Operation control Auto/Manual startup, error alarm, timer,etc Over-load Protector, Temp Controller&Protector, Protection Electric Leakage Protector, etc E-heater power 3150W Refrigerant R134a(1000g) Outlet water temp. Default 60°C,(38-70°C adjustable ）... - Page 23 8.1 Important information for the used refrigerant This product has the fluorinated gas, it is forbidden to release to air. Refrigerant type: R134A; Volume of GWP: 1430; GWP=Global Warming Potential Factory charge Model Refrigerant/kg tonnes CO equivalent KHP-15/190 ACS2 1.00 1.43 Attention: Frequency of Refrigerant Leak Checks...
