INSTALLATION
Brace inlet and outlet connections
while fitting the Digital Water
Switch. Any movement of
connections may disturb internal
seals and cause leakage.
If the incoming mains pressure
to the property is greater than
the specified 1000kPa, please
fit a pressure reduction valve
of appropriate capacity upstream
of the Digital Water Switch.
The recommended pressure is
500kpa to suit AS/NZS 3500.
Fitting this type of device to the
entire house will extend the life of
other appliances such as washing
machines, hot water service and
dishwashers.
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance
by a person responsible for
their safety. Children should be
supervised to ensure that they
do not play with the appliance.
If the supply cord is damaged
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.

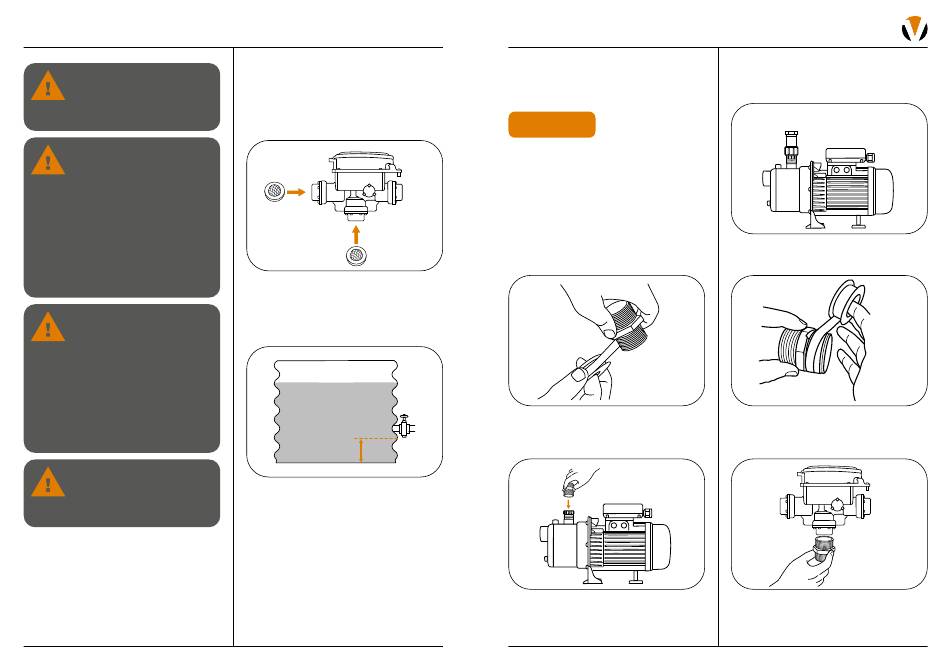

8
VADA FLOW BOSS
DIGITAL WATER SWITCHING UNIT VFB-DSU
PART 1: PREPARING
THE VADA FLOW BOSS
DIGITAL SWITCHING UNIT
1. Insert two mesh inline filters on the mains
water inlet and pump inlet of the unit.
2. Ensure the height of the tank outlet from
the base of the tank is at least 100mm. If
installing a submersible pump, ensure there
is a 100mm gap between the base of the
pump and the base of the tank.
100mm
Note: Clean water is essential for the
reliable operation of your switching unit.
It is recommended to install first flush diverters
and leaf guards on your rainwater tank.
INSTALLATION MANUAL
PART 2: CONNECTING THE
DIGITAL WATER SWITCHING
UNIT TO THE PUMP
HELPFUL HINTS
In this manual the VFB-DSU is pictured with
a jet pump. If you're installing the VFB-DSU
with a submersible pump, the connection will
differ slightly.
If connecting a VFB-DSU to a submersible
pump, you will need to mount the VFB-DSU
onto a bracket.
1. Wrap thread tape around both ends of
a 25mm nipple.
2. Thread the nipple into the female socket
of the pump discharge until it is watertight.
Do not overtighten.
3. Connect the 25mm female end of the
barrel union to the nipple until it is
watertight. Do not overtighten.
4. Wrap thread seal tape around another
25mm nipple.
5. Thread the nipple into the base of the
switching unit until it is watertight. Do not
overtighten.
