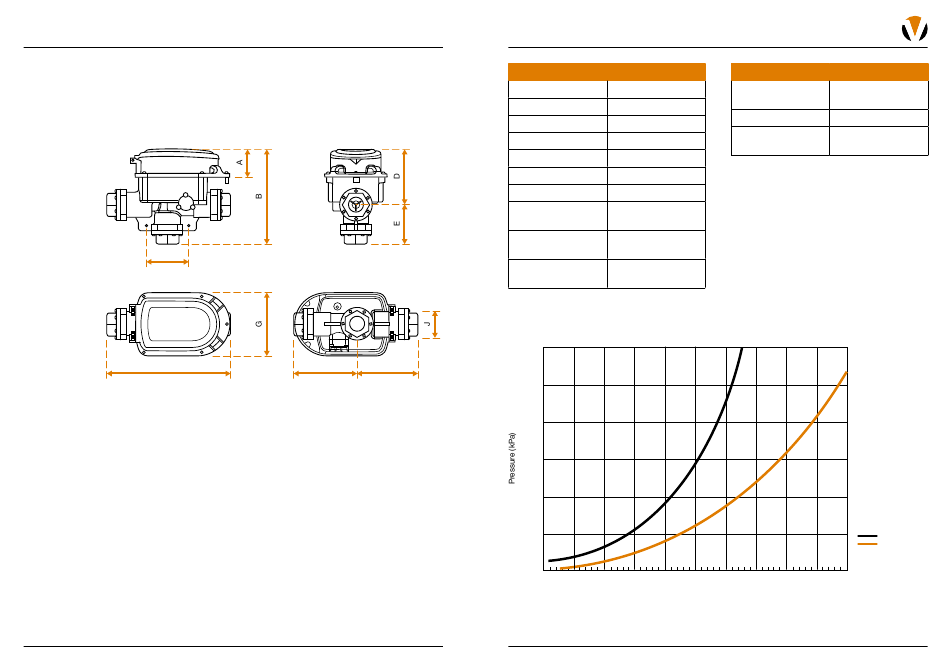

PRODUCT DIMENSIONS
A. 52mm
B. 181mm
C. 80mm
D. 106mm
E. 75mm
F. 235mm
G. 119mm
H. 120mm
I. 115mm
J. Ø48mm
C
F
20
VADA FLOW BOSS
DIGITAL WATER SWITCHING UNIT VFB-DSU
H
I
INSTALLATION MANUAL
TECHNICAL INFORMATION
SPECIFICATIONS
Supply voltage
1~230 – 240 50Hz
Max electrical load
10A / 2400W
Power standby
3.5W
Control power (on)
30W
IP rating
IP44
Min flow rate
1lpm
Min mains pressure
1 bar
Max operating
10 bar
pressure
Min – max water
1°C – 40°C
temperature
Min – max ambient
1°C – 40°C
temperature
VFB-DSU Pressure Loss
300
250
200
150
100
50
0
0
10
20
30
40
Flow (litres per minute)
CONNECTION
Mains water
25mm FI BSP
supply inlet
Pump connection
25mm FI BSP
Water outlet
25mm FI BSP
connection
50
60
70
80
90
100
Mains
Pump
