DESCRIPTION
1.
Battery Cover
2.
Flashlight button
3.
Power button ON/OFF
4.
LED Indicator
5.
Detector Tip
6.
Flashlight
LED INDICATOR
· Green light
high voltage mode (> 200V)
· Yellow light
low voltage mode (>12V) and self-test mode
· Red light
voltage detected
VOLTPEN 200-12
5
4
3
2
1
electrical tester
6
Advertisement
Related Manuals for Futech VOLTPEN 200-12
Summary of Contents for Futech VOLTPEN 200-12

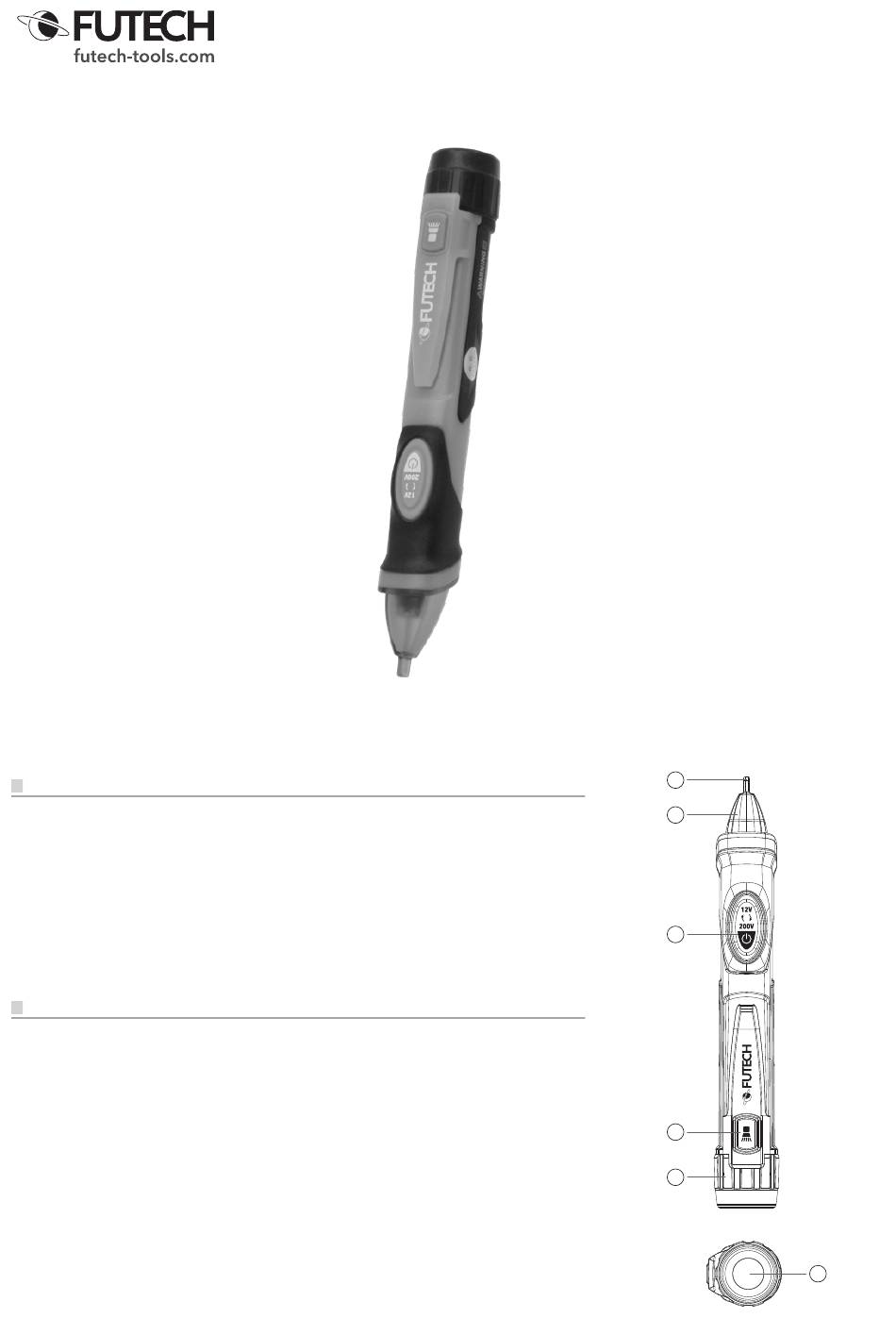

- Page 1 VOLTPEN 200-12 electrical tester DESCRIPTION Battery Cover Flashlight button Power button ON/OFF LED Indicator Detector Tip Flashlight LED INDICATOR · Green light high voltage mode (> 200V) · Yellow light low voltage mode (>12V) and self-test mode · Red light...
- Page 2 BATTERIES Prior to initiate the self-test, check whether the batteries have been installed cor- rectly inside the device. Carefully unscrew the Battery cover [1] by hand anti- clockwise Lift off the Battery cover [1] Insert the batteries making sure that the poles of the batteries are in the right position.
- Page 3 FLASHLIGHT · Press Flashlight button [2] to turn on flashlight NOTE · t O sAve bAttery, the flAshlight will turn Off AutOmAtiCAlly when the ACtivAted deviCe is nOt in used during 5 minutes CARRY OUT VOLTAGE TEST LOW VOLTAGE MODE (DETECTION VOLTAGE RANGE: 12V TO 1000V AC) When the device is switched on, please check the device is working on low volt- age mode (=yellow light in LED indicator [4]) ·...
- Page 4 2000 meters Pollution Degree Safety Compliance CAT IV 1000V IP Rating IP67 Futech is a registered brand of Laseto NV, Belgium. Futech declares that the Voltpen 200-12 is in conformity with the following standards: · following the provisions of Directive: ·...
