DESCRIPTION
1.
Handle test probe − (L1)
2.
Instrument test probe + (L2)
3.
LEDs for voltage display
4.
Measurement Point Illumination (LED Flashlight)
5.
LED for low impedance test
6.
LED or continuity
7.
LED for left rotary field
8.
LED for right rotary field
9.
LED for AC voltage
10. LED for positive voltage
11. LED for negative voltage
12. LED for warning voltage
13. LOW impedance switches
14. Button for measuring point illumination (LED flashlight)
15. AUTOTEST (self check test)
16. Battery case
17. Probe tip Protective cap
(with storage compartiments for probe tip cover and probe tip extension)
18. Probe tip cover
19. Probe tip extension (Ø 4mm, screw on)
VOLTTESTER 4.6A
1000
690
400
L
R
230
AC
120
50
+
−
24
12
DIF-RCD
DIF-RCD
AUTO
TEST
VOLTTESTER
4.6A
electrical tester
1
2
3
4
5
17
6
7
8
9
10
11
12
18
13
14
15
19
16
Advertisement
Table of Contents
Related Manuals for Futech VOLTTESTER 4.6A
Summary of Contents for Futech VOLTTESTER 4.6A

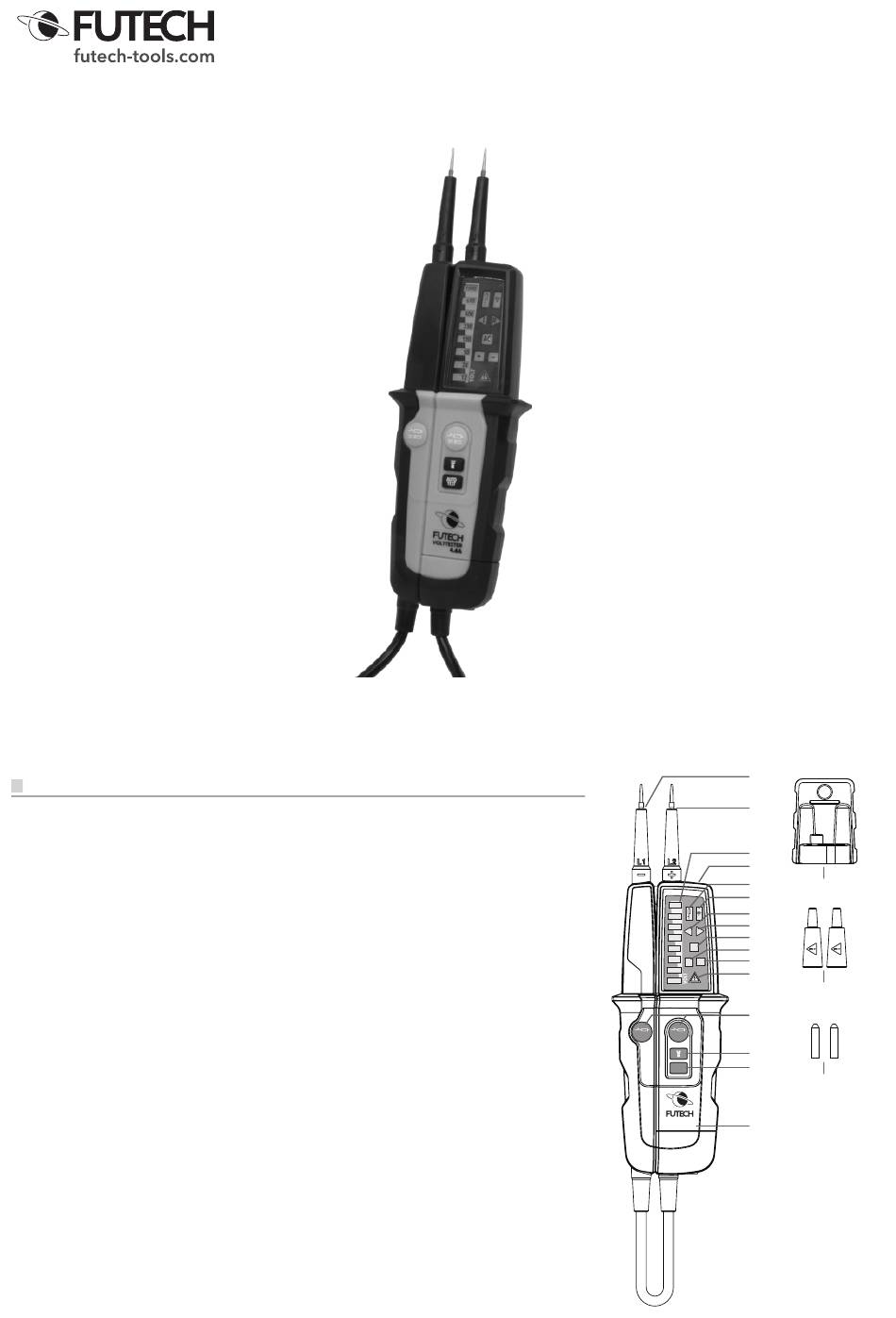

- Page 1 VOLTTESTER 4.6A electrical tester DESCRIPTION Handle test probe − (L1) Instrument test probe + (L2) LEDs for voltage display Measurement point illumination (LED Flashlight) LED for low impedance test 1000 LED or continuity LED for left rotary field LED for right rotary field −...
- Page 2 SAFETY AND WARNINGS Do not exceed the maximum allowable input range of any function. Insulated personnel body protective equipment up to 1000V. The unauthorized persons are not allowed to disassemble the voltage detector. In order to avoid electrical shock, the valid safety and VDE regulations regarding excessive contact voltages must receive utmost attention, when working with volt- ages exceeding 120V (60V) DC or 50V (25V) rms AC.
- Page 3 A voltage detector declaring two values of internal impedance has passes a performance test of managing interference voltages and is (within technical limits) able to distinguish operating voltage from interference voltage and has a means to directly or indirectly indicate which type of voltage is present. APPROPRIATE USAGE The instrument may only be used under those conditions and for those purposes for which it was conceived.
- Page 4 CONTINUITY TEST The continuity test test is only possible when batteries are installed and in good condition. A signal sound is audible for continuity and the LED for continuity LED [6] is illumitated. VOLTAGE TEST WITH SWITCHED LOAD, RCD TRIP TEST ·...
- Page 5 0 to 400 kΩ Accuracy nominal resistance +50% Test currant ≤5 �A Futech is a registered brand of Laseto NV, Belgium. Futech declares that the Volttester 4.6A is in conformity with the following standards: · EN 61326-1:2013 · EN 61326-2-2:2013 following the provisions of Directive: ·...
