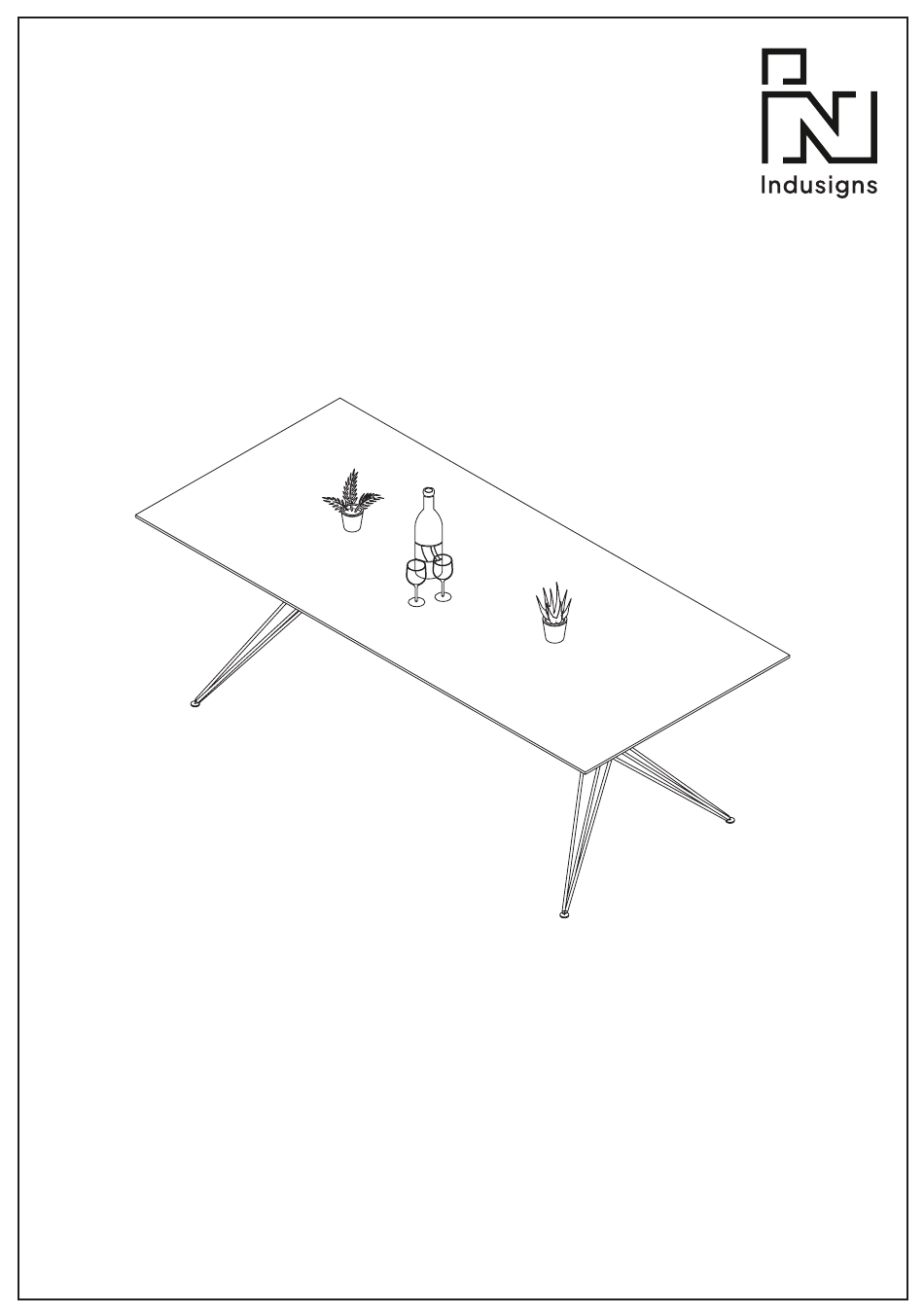

- Page 1 Hairpin Table Frame | Original Installation manual...
- Page 2 Contents With coupling element Without coupling element 16-28st Felt pads Met koppelelement: 16-28st Rubber washer Black Allen screw Black nut 16-28st Metal washer Black metal washer 16-28st Wood screw Supplies - Pencil - Long ruler - Tape measure or measuring tape - Wood drill Ø3mm - Phillips screwdriver...
- Page 3 01| Determine position Use a soft surface during installation to avoid damage Place the tabletop upside down on a soft surface (e.g. a rug) to prevent scratches. Draw a center line along the length and width of the sheet to determine the position of the frames. Place the frames with the mounting plate on the table top and position them as desired.
- Page 4 02| Add felt pads Felt pads Add some felt pads to the top of the hairpin frame.
- Page 5 03| Determine position with coupling element The next two steps deal with the coupling element. Don’t have a link? then skip steps 3 and 4 and proceed to step 5. Coupling element: When determining the position, pay attention to the alignment of the coupling element with respect to the frames.
- Page 6 03| Fix coupling element Coupling element: When the frames are positioned correctly, secure this unit with the coupling element. Use the supplied black bolts, nuts and washers for this. Attach the coupling element to each frame with two bolts: one like this close to the center and one as far from the center as possible.
- Page 7 03| Drill holes in the tabletop Mark the holes on the table top and remove the hairpin frames from the table top. Pre-drill the holes at the marked positions with a Ø3mm wood drill bit. Remove the sawdust from the holes.
- Page 8 04| Fix the tabletop Replace the frames with the mounting plate on the table top and align them with the holes. When the frames are positioned correctly, they can be attached with the supplied fasteners. Tighten the screws well, but never overtighten them. If they are stuck it is enough. If you hear wood creaking while screwing, remove the screw and drill the hole a little further.
- Page 9 05| Turn the table Flip the table. Do this with several people to prevent any damage. The installation is now complete and the table is ready for use.
- Page 10 Thank you for your purchase! Have fun with your Hairpin Table Frame | Original...
