• If you can erase the settings of your drum kits

After performing the upgrade, use the Initialize operation.

Press [SETUP] - [F4 (UTIL)] - [F4 (INIT)] - [F4 (INIT)] - [F4 (EXEC)].

* ALL internal settings will be lost when you perform the Initialize operation.

When you use the V-Cymbals, select the preset trigger bank 2.

1. Press [SETUP] - [F1 (TRIG)] - [F1 (BANK)].

2. Select the BANK "2" by turning the VALUE dial.

• If you want to keep the settings of your drum kits

You do not have to save your settings before performing the upgrade.

After performing the upgrade, recall trigger bank 2's factory presets.

1. Press [SETUP] - [F1 (TRIG)] - [TOOLS] - [F1 (COPY)].

2. Select the preset trigger bank 2, and the copy-destination trigger bank.

3. Press [F4 (COPY)] - [F4 (EXEC)].

Some instruments in preset drum kits are modified to correspond to the V-Cymbals.

Recall factory presets for individual drum kits if you need.

For more information on copying a kit, refer to TD-10 Owner's Manual; p. 137, right column.

* When upgrade the original TDW-1 to the "TDW-1 with V-Cymbal Control," ALL DATA will NOT be lost.

* When install the TDW-1 on the non-expanded TD-10, ALL DATA will be lost.

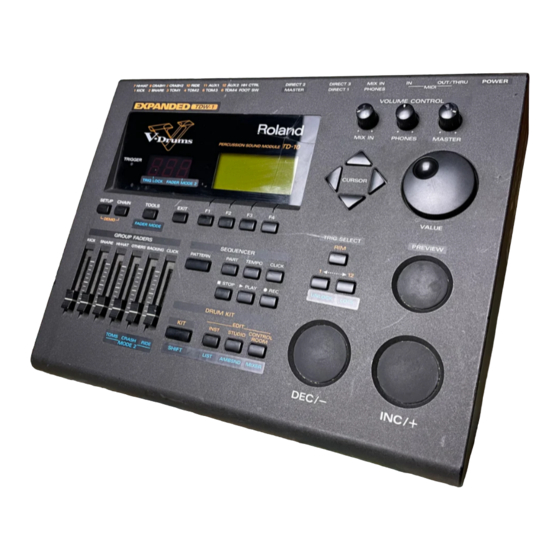

TDW-1 UPGRADE LEAF.

For Original TDW-1 Users

Read First

Need help?

Do you have a question about the TDW-1 and is the answer not in the manual?

Page 1 For more information on copying a kit, refer to TD-10 Owner’s Manual; p. 137, right column. * When upgrade the original TDW-1 to the “TDW-1 with V-Cymbal Control,” ALL DATA will NOT be lost. * When install the TDW-1 on the non-expanded TD-10, ALL DATA will be lost.
Page 2 Loading the Program Data from the TDW-1 1. Turn on the power. The “BOOT LOADER” screen appears. fig.LOADscreen_80 2. To perform the upgrade, press [F4 (LOAD)]. Do not turn the power off until completed. 3. The “Load Completed!” screen will appear. Now turn off the power.
Page 3 Trigger Types for the V-Cymbal Trigger Bank and Trigger Type Settings At the initial settings, the trigger bank provides settings for frequently used kit configurations. If you are using the V- cymbals, it is convenient to use bank 2. If using the PD-9s as cymbals, use bank 1.
Page 4 OUTPUT TRIG INPUT BOW/BELL 10/RIDE RdA (CY-15R) BOW/EDGE 11/AUX 1 CTR (CY-15R CONTROL) These are the TDW-1's initial settings for trigger bank 2. fig.Bank2screen_80 Correspondence between playing method and trigger input Playing Method Trigger Input Bow Shot 10/RIDE HEAD Bow sound of the Ride...
