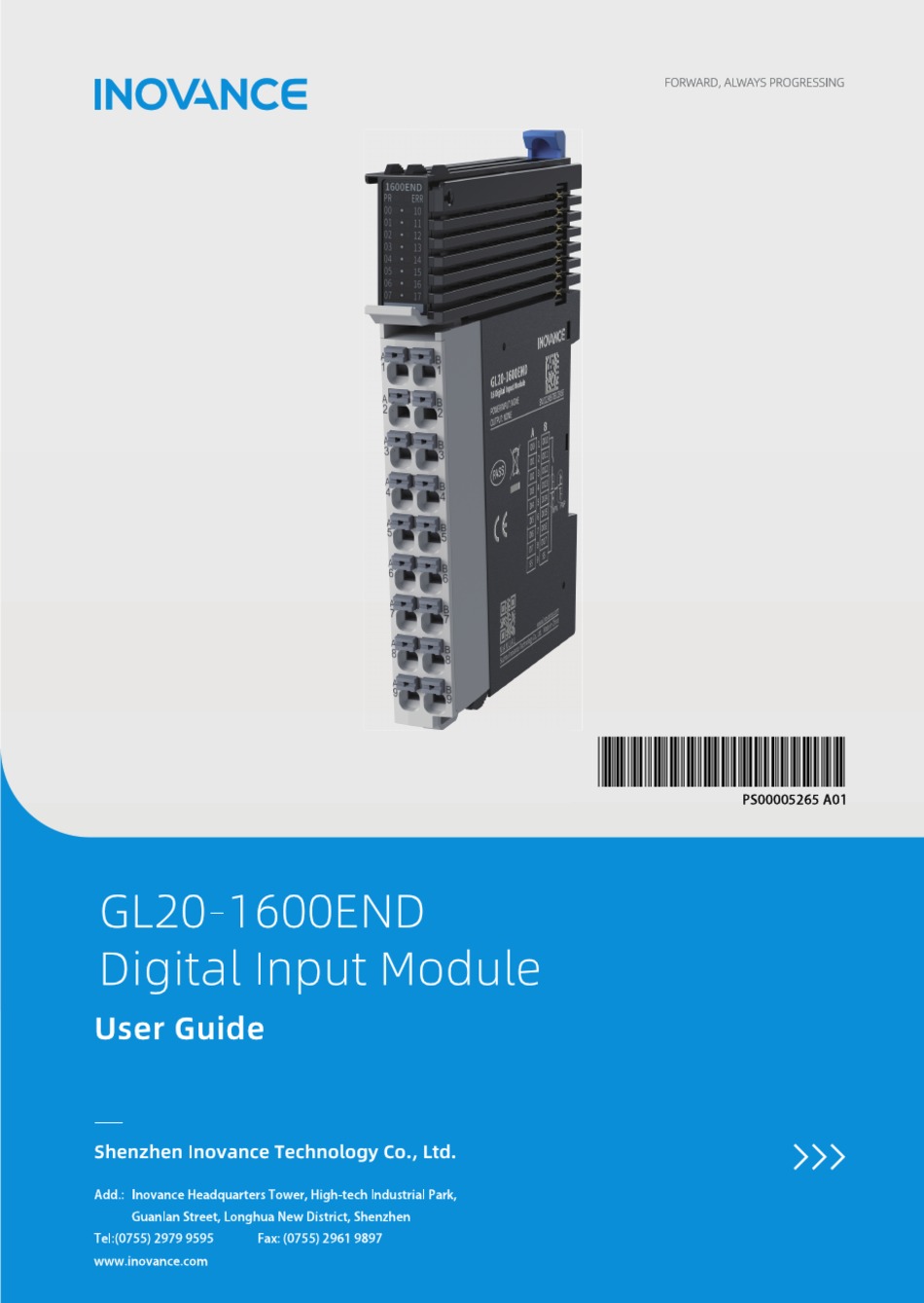

- Page 1 *PS00005265A01*...
-
Page 3: Revision History
This guide is not delivered with the product. You can obtain the PDF version by the following method: http://en.inovance.cn/ Log in to Inovance's website ( ), choose Support > ● Download, search by keyword, and then download the PDF file. - Page 4 Force majeure such as natural disasters, earthquake, lightning strike ● The maintenance fee is charged according to the latest Price List of Inovance. If otherwise agreed upon, the agreed terms and conditions shall prevail. For details, see Product Warranty Card.
-
Page 5: Safety Instructions
4. Use this equipment according to the designated environment requirements. Damage caused by improper use is not covered by warranty. 5. Inovance shall take no responsibility for any personal injuries or property damage caused by improper use. ■ Safety Levels and Definitions : Indicates that failure to comply with the notice will result in severe personal injuries or even death. -
Page 6: Installation
An emergency stop circuit, a protection circuit, a forward/reverse operation interlocked ● circuit, and a upper position limit and lower position limit interlocked circuit must be set in the external circuits of PLC to prevent damage to the machine. To ensure safe operation, for the output signals that may cause critical accidents, design ●... - Page 7 Prevent metal filings and wire ends from dropping into ventilation holes of the PLC ● during installation. Failure to comply may result in fire, fault and malfunction. Ensure there are no foreign matters on ventilation surface. Failure to comply may result ●...
- Page 8 Maintenance & inspection must be carried out by personnel who have the necessary ● electrical training and experience. Do not touch the terminals while the power is on. Failure to comply may result in electric ● shock or malfunction. Disconnect all external power supplies of the system before cleaning the module or re‑ ●...
- Page 9 1 产品信息 Model Number and Nameplate ① Product ③ I/O Points ⑤ Module Type Voltage type ⑦ Information 16: 16 E: Logic I/O D: 24 VDC GL: General inputs expansion local module module ⑥ Output type ② Serial Number ④ I/O Points 20: 20 series 00: Zero N: No output...
- Page 10 Model Description Product Code Applicable Model GL20‑ GL20 series 16‑channel digital 01440291 AC800 series, Easy series 1600END (sourcing and sinking) input module Components Description Name Signal ON when the module is indicators in normal operation Flashes when the Yellow Power / running (POWER module is preparing or green...
-
Page 11: Power Supply Specifications
Description Name Red: Digital output Orange: Analog output Color Gray: Digital input Green: Analog input identification White: Blue: Other module Communication Specifications ■ Power supply specifications Item Specification Rated bus input voltage 5 VDC (4.75 VDC to 5.25 VDC) Rated bus input current 100 mA (typical@5 VDC) Rated terminal input voltage Rated terminal input current... -
Page 12: Software Specifications
Item Specification Isolation Input action display Input indicators are turned ON (via software control) when the inputs are in the driving state Input derating 75% derating at 55°C (the number of ON inputs does not exceed 12), or 10°C derating when all inputs are ON ■... -
Page 13: Mounting Dimensions
2 Mechanical Installation Mounting Dimensions ■ Module The mounting dimensions (in mm) are shown in the figure below. ■ Cable Connection ‑ ‑... -
Page 14: Installation Method
Installation Method ■ Installing Modules Side-by-Side You can install multiple modules side by side with the help of top and bottom guides on the modules, as shown below. ■ Installing Module onto DIN Rail You can install the module onto a DIN rail. Align the module with the DIN rail and push the module in the direction indicated by the arrow until you hear a click, as shown below. -
Page 15: Removing Module
■ Removing Module Pry the DIN rail mounting hook upwards with a tool such as slotted screwdriver, hold the protrusions and pull the module out straight forward, and then press down the top of the DIN rail mounting hook. ‑ ‑... -
Page 16: Cable Selection
3 Electrical Installation Cable Selection The cable lug and cable diameter included in the following table are only for reference. Material Applicable Cable Diameter Suzhou Yuanli Name Model Crimping Model Crimping Tool Tool Tubular E0308 KST2000L 0308 YAC‑5 E0508 0508 0.75 E7508 7508... -
Page 17: Terminal Definition
Terminal Definition Left Indicator Left Signal Left Terminal Right Right Signal Right Terminal Indicator DI10 DI11 DI12 DI13 DI14 DI15 DI16 DI17 ‑ ‑... -
Page 18: Terminal Wiring
Terminal Wiring ‑ ‑... -
Page 19: Programming Examples
4 Programming Examples The following is an example where the input voltage of channel 0 of the GL20‑ 1600END module is assigned to the corresponding variable, and AC802 is used as the master control module. 1. Add GL20‑1600END module. 2. In Channels Config interface of the 1600END module, set Filter Time of each channel. - Page 20 4. Map the defined variable CH0 to Group 0 (DI7‑DI0) of the configured 1600END module. 5. After successful compiling, download the project and run it. ‑ ‑...
